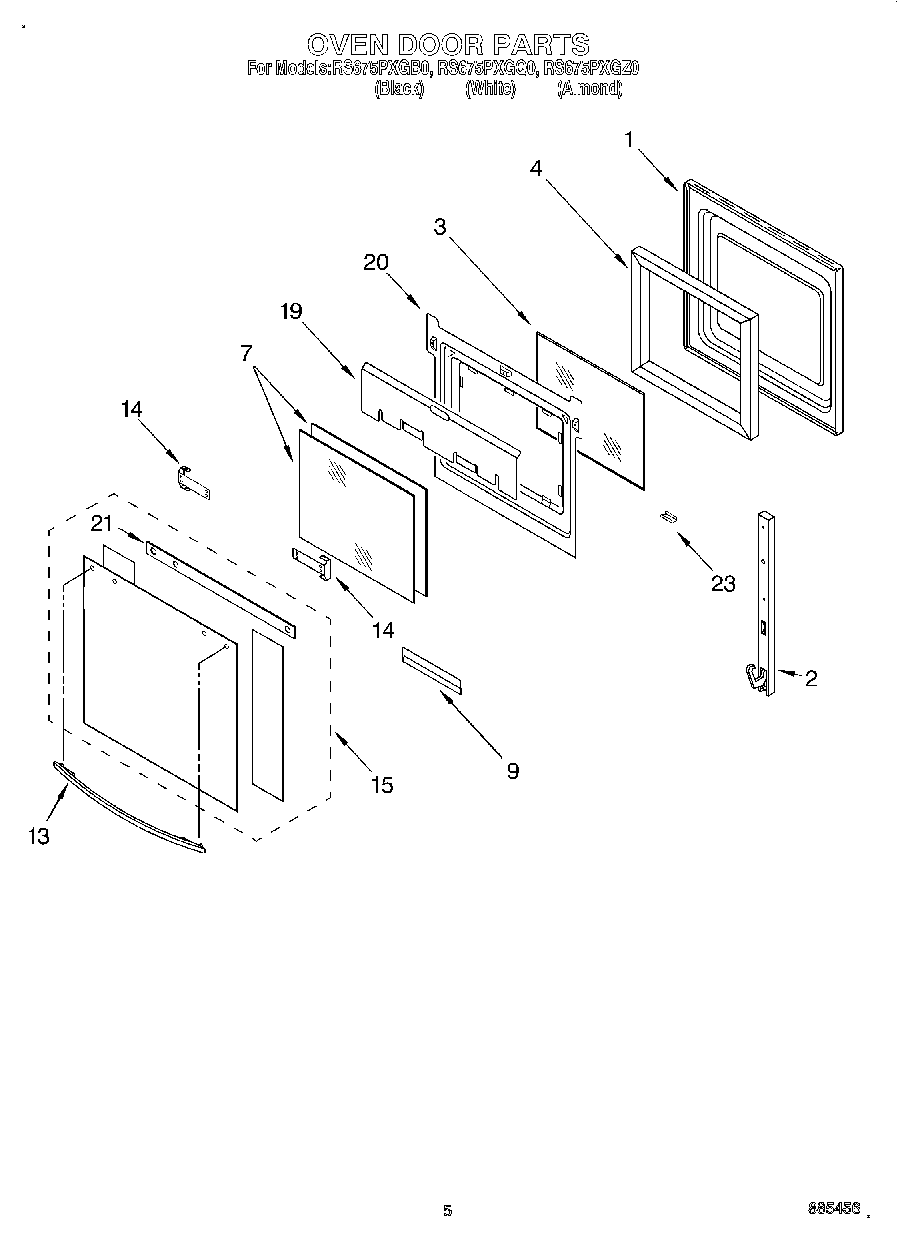

RS675PXGZ0 04 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP4455524 Whirlpool Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
13	Door Handle (Black Model)
13	Door Handle (White Model)
13	Door Handle (Almond Model)
14	Bracket, Handle
14	Screw
15	Assy, Door Glass (Almond Model)
15	WP9759641 Whirlpool Outer Door Glass
15	Door Glass, Assy (White Model)
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	WP4449743 Whirlpool Screw
23	Retainer, Clip (Almond Model)
