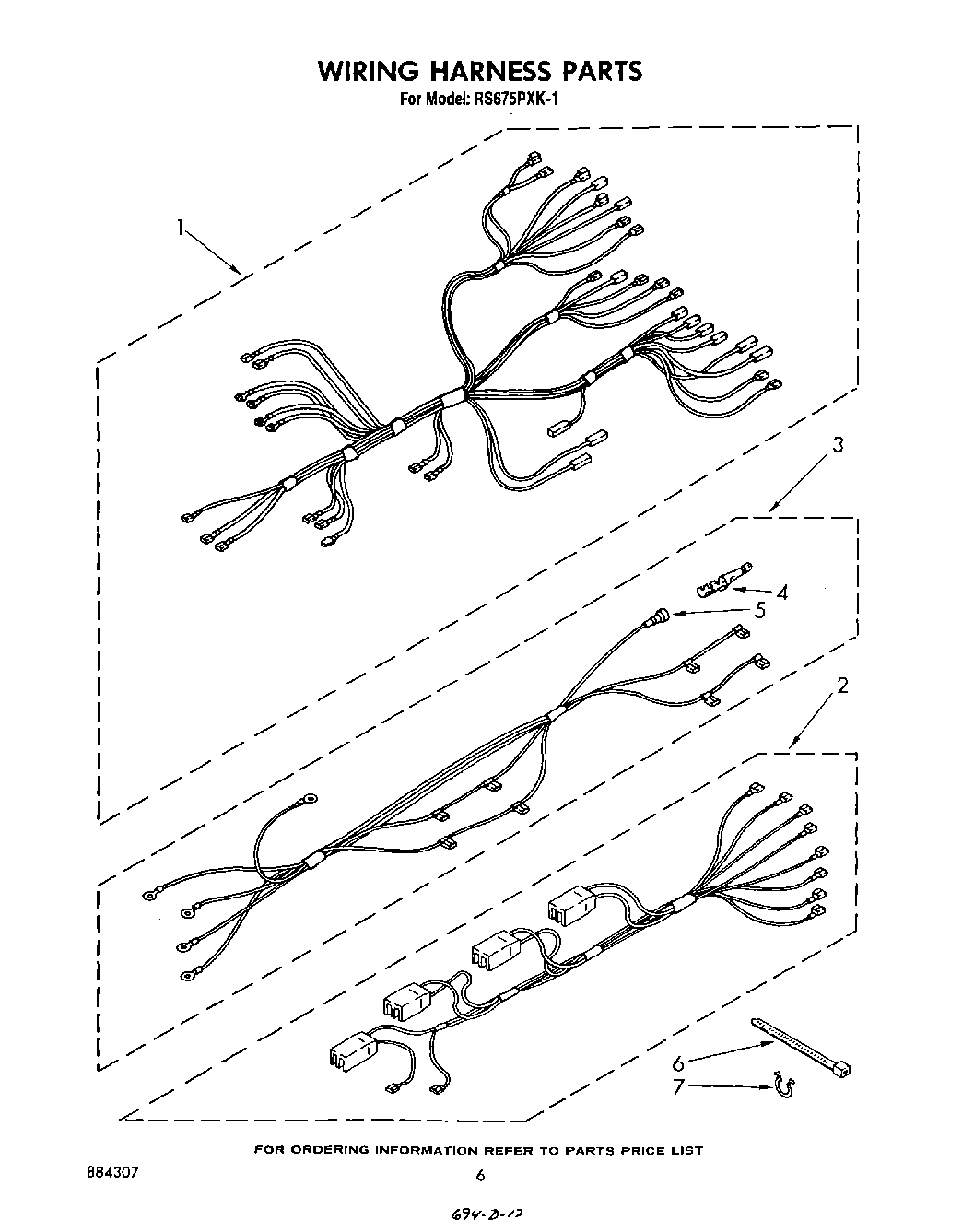

RS675PXK1 05 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

PositionProduct
List, Repair Parts
Guide, Use & Care
WPL LIT311433
Tech Sheet
WPL LIT313358
1Harness, Wire (Main)
2Harness, Wire (Surface Unit)
3Harness, Wire (Infinite Switch)
4WP596797 Whirlpool Terminal
5Plug
6WPW10339879 Whirlpool Wire Tie
7242831 Whirlpool Oven Wire
716515 Whirlpool Clip
7console
7Wire, 25“ Roll (White 14 GA.)
7Wire, 25` Roll (Red 14 Ga.)
7Wire, 25` Roll (Black 14 Ga.)
7FOIL, ALUMINUM OVEN (18“ X 25 )
7WPW10208653 Whirlpool Insulation
7Grease
7Rotisserie Kit
7Wire (14 Ga. 150 c Blue)
7Wire (14 Ga. 150 c Brown)
7Wire (14 Ga. 150 c Green)
7Wire (14 Ga. 150 c Orange)
7Wire (14 Ga. 150 c Yellow)
7Touch-Up Oven (1 Oz.)
718 Ga. 80~c Rating (Red)
7Wire (14 Ga. 200 c Brown)
71
7Wire (12 Ga. 150 c Black)
