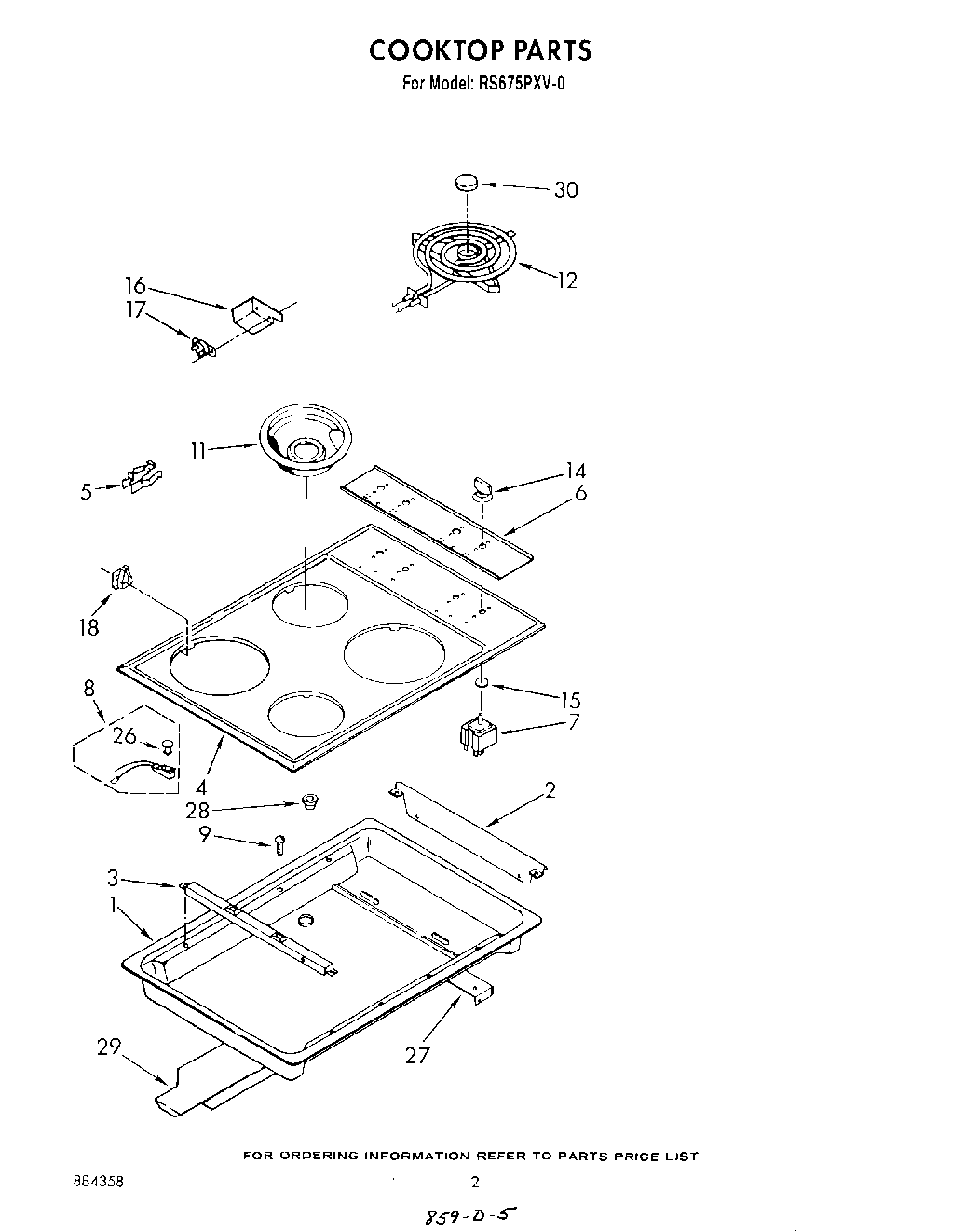

RS675PXV0 02 – COOKTOP

Products

Position	Product
	List, Repair Parts
	WPL LIT3149928
	WPL LIT3148601
	WPL LIT3148556
	WPL LIT313358
1	Burner Box
2	Shield, Switch
3	Support, Cooktop
4	Cooktop, Brushed Chrome
5	BURNER RECEPTACLE KIT
6	Panel, Control
7	W10900107 Whirlpool Oven Surface Element Switch
8	Indicator Light
9	WPL 312318
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WP660532 Whirlpool Oven Surface Element
12	WP660533 Whirlpool Oven 8" Surface Element
14	Knob, Control
15	Seal, Switch Shaft (2)
16	Bracket, Sensor
17	Thermostat
17	WP313808 Whirlpool Screw
18	814103 Whirlpool Clip
26	Lens, Light
27	Support, Box
28	WPL 258109
29	WP488729 Whirlpool Refrigerator Door Screw
29	Cover, Top Rear
30	Medallion
