RS675PXV0 04 – OVEN

RS675PXV0 04 – OVEN

Written by

in

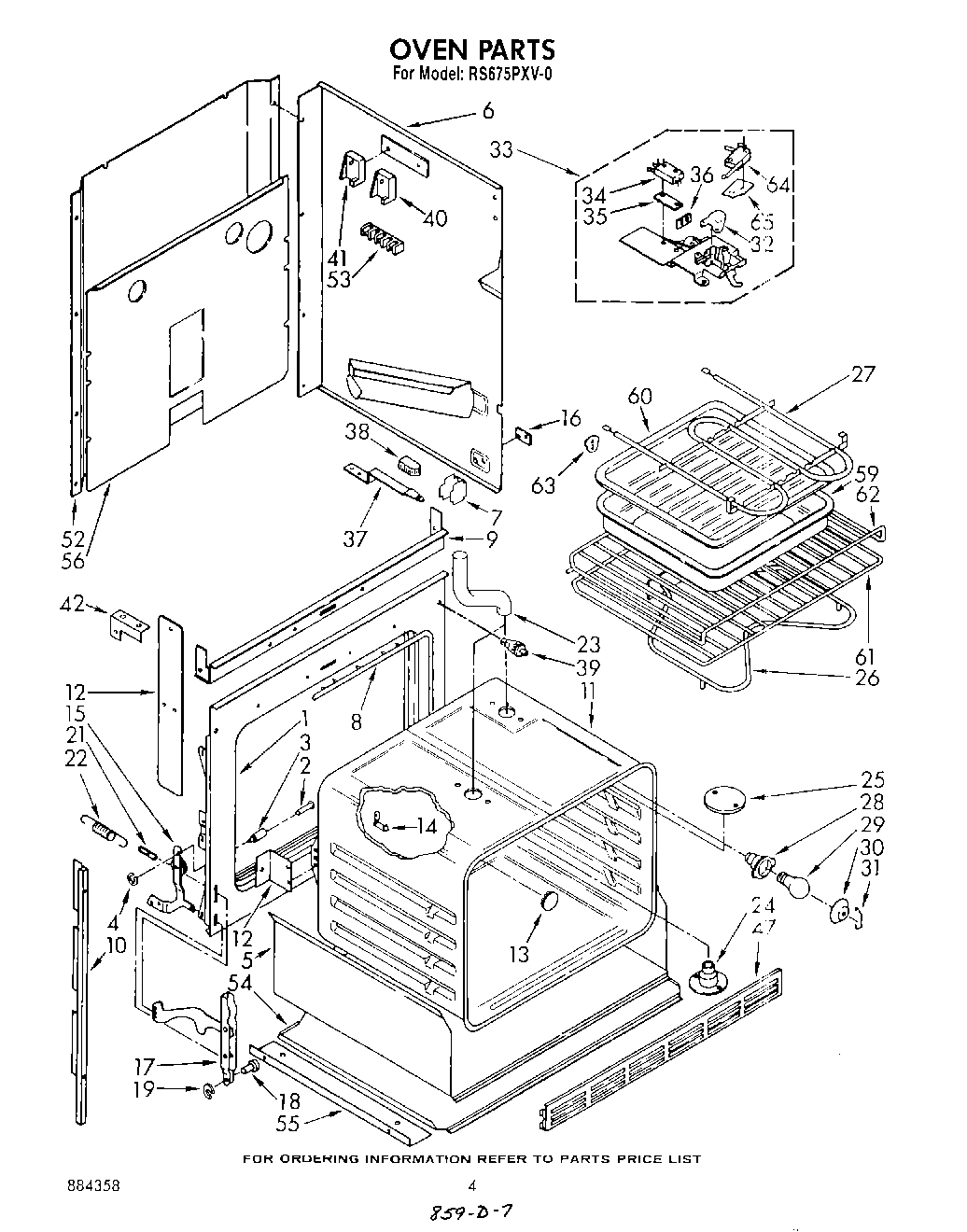

RS675PXV0 04 – OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Screw (2)
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Seal, Door
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
10	WP313808 Whirlpool Screw
11	Oven (30“ Pyro)
12	WP489069 Whirlpool Compactor Screw
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent Extension
23	SCREW
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
26	WPL 312318
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	Screw, 10-32 x 5/8 (4)
28	Socket, Oven Light
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
32	WPL 3149270
33	Latch Assembly
33	Screw (3)
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Screw, 80 x 5/16
38	Knob, Latch Handle
39	Switch, Door
40	Sw
41	WPL 314215
41	Switch, Bake
42	Shield, Air
42	Screw (2)
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	Cover, Rear
53	WP8203546 Whirlpool Terminal Block
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
54	WPL 310458
55	Angle, Support (2)
56	Panel, Back (2)
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WP488729 Whirlpool Refrigerator Door Screw
63	WPL 311982
64	Switch, Lock
65	WPL 3147864
65	WPL 310434
65	WPL 310433
65	WPL 3149328
