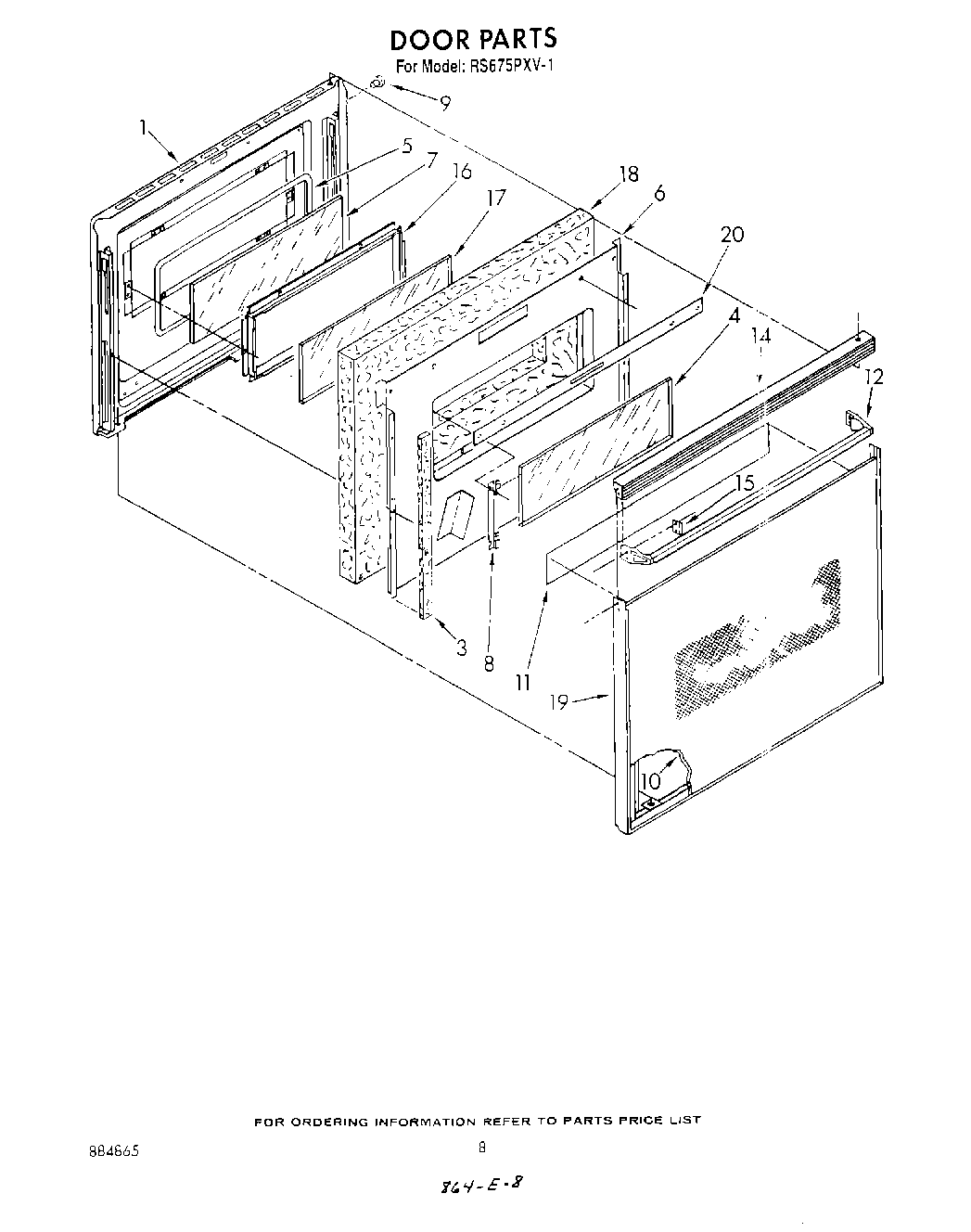

RS675PXV1 06 – DOOR

RS675PXV1 06 – DOOR

Written by

in

RS675PXV1 06 – DOOR

Products

Position	Product
	Repair Parts List
	WPL LIT313358
	WPL LIT3148556
	WPL LIT3148601
	WPL LIT3149928
1	Liner, Door
1	Screw, 10A x 1/2 (2) (Black)
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
14	Back Splash (Screw (4) 10AB x 1/2“)
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
18	Insulation, Door
19	Frame, Door
20	Screw,
20	Sheild, Door
