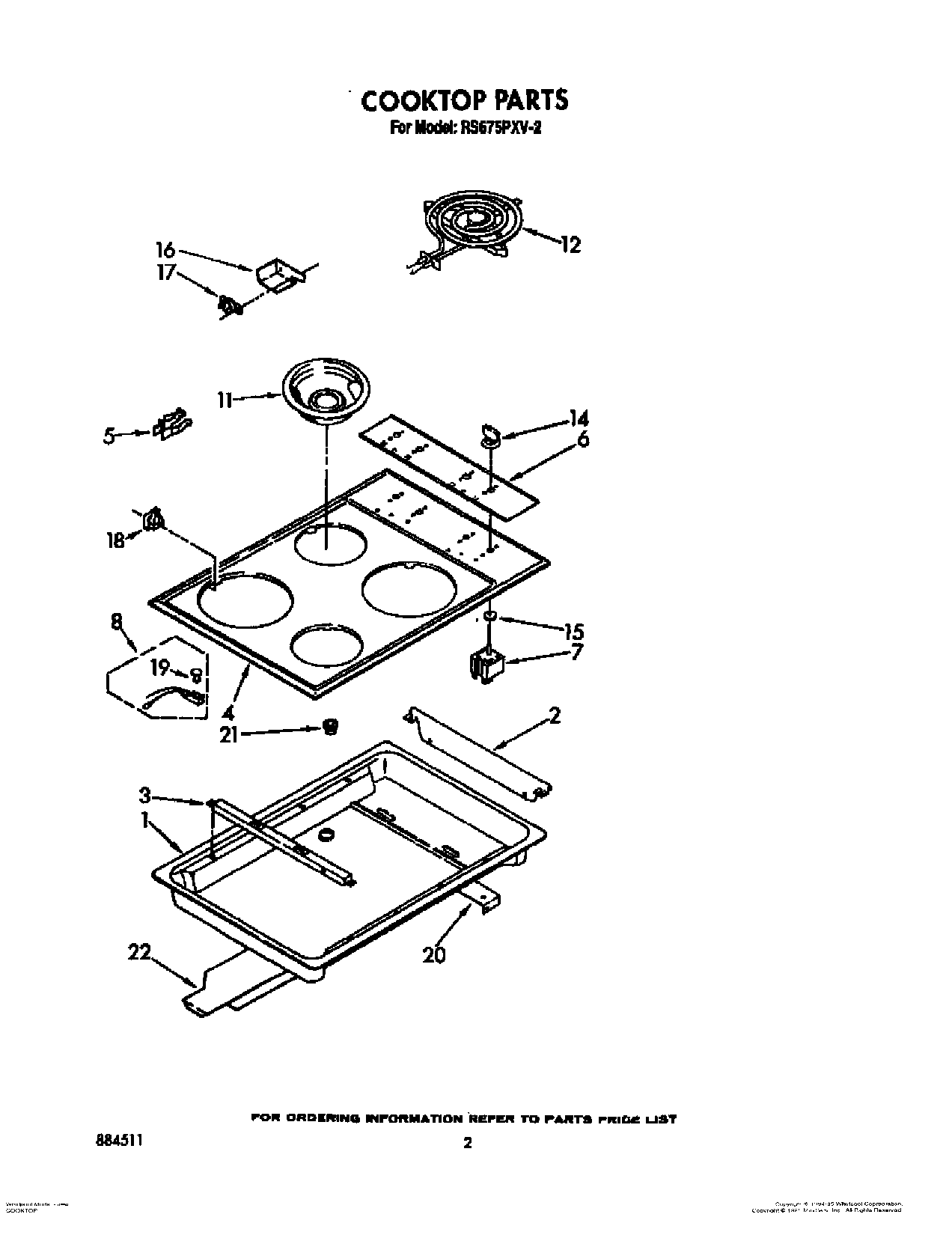

| NOTE: The screws and nuts required to attach a part are listed immediately following that part. |
| 1 | Burner Box |
| 2 | Shield, Switch |
| 3 | Support, Cooktop |
| 4 | Cooktop, Brushed Chrome |
| 5 | BURNER RECEPTACLE KIT |
| 6 | Panel, Control |
| 7 | W10900107 Whirlpool Oven Surface Element Switch |
| 8 | Indicator Light |
| 11 | DRIP BOWL 8" W/HOLE CHROME |
| 11 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 12 | WP660533 Whirlpool Oven 8" Surface Element |
| 12 | WP660532 Whirlpool Oven Surface Element |
| 14 | Knob, Control |
| 15 | Seal, Switch Shaft (2) |
| 16 | Bracket, Sensor |
| 17 | Screw, 6-32 x 9/32 (4) |
| 17 | WP313808 Whirlpool Screw |
| 17 | Thermostat |
| 18 | 814103 Whirlpool Clip |
| 19 | Lens, Light |
| 20 | Support, Box |
| 21 | WPL 258109 |
| 22 | WP488729 Whirlpool Refrigerator Door Screw |
| 22 | Cover, Top Rear |
