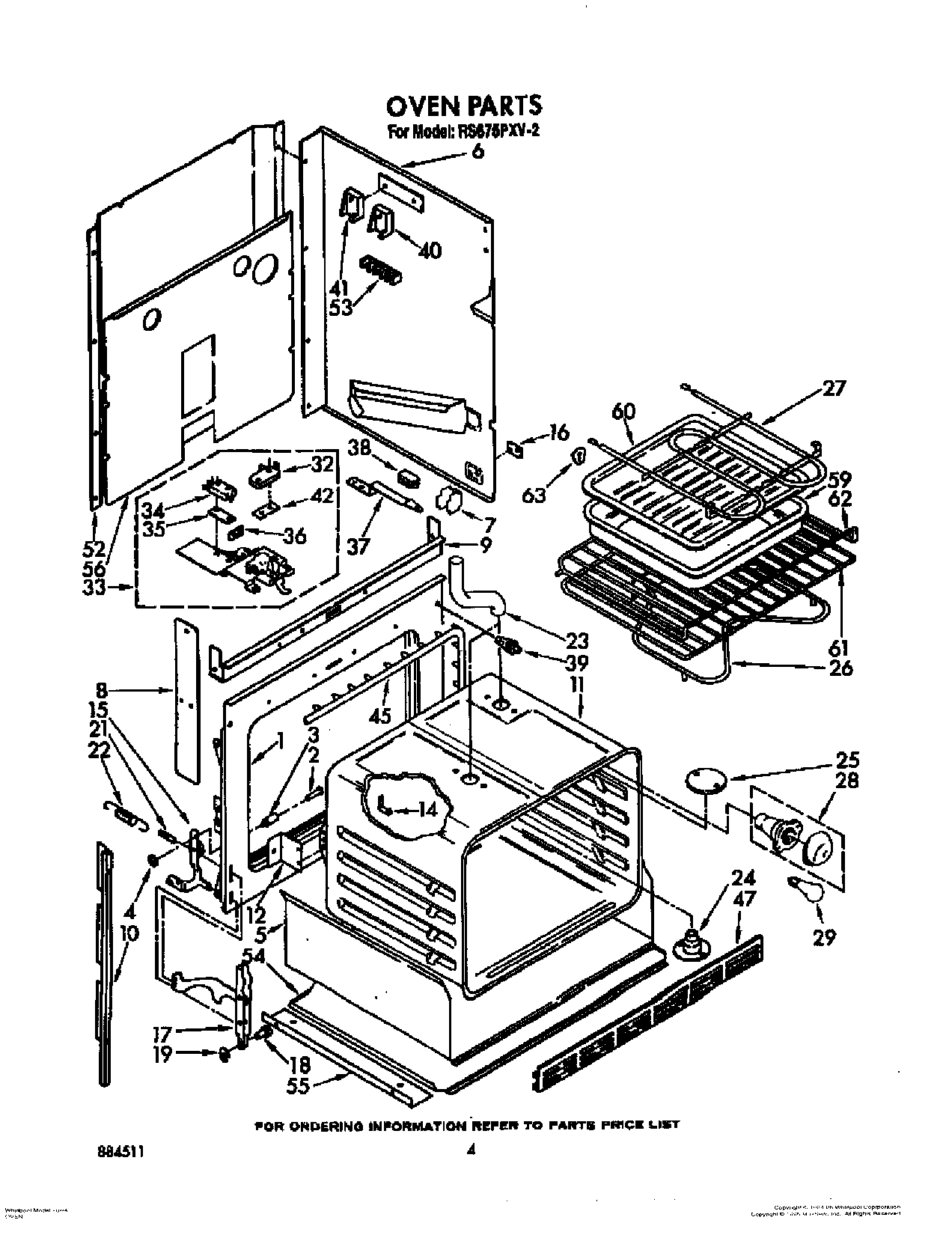

RS675PXV2 04 – OVEN

Products

Position	Product
	WPL ARI124648A
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Baffle, Insulation
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven, 30“
12	Bracket, Oven Mounting (2)
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent Extension
23	SCREW
23	WP488729 Whirlpool Refrigerator Door Screw
24	Eliminator, Smoke
24	Screw (2)
25	WPL 310662
26	ELMNT-BAKE
27	Screw (2)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
32	Switch, Lock
33	Screw (3)
33	Latch Assembly
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Screw
36	Shield, Latch
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw, 80 x 5/16
39	Switch, Door
40	Sw
41	Switch, Bake
41	WPL 314215
42	WPL 3147864
42	Screw (2)
45	Seal, Door
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	Cover, Rear
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
53	WP8203546 Whirlpool Terminal Block
54	WPL 310458
55	Angle, Support (2)
56	Panel, Back (2)
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WPL 3149328
63	WPL 310433
63	WPL 311982
63	WPL 310434
