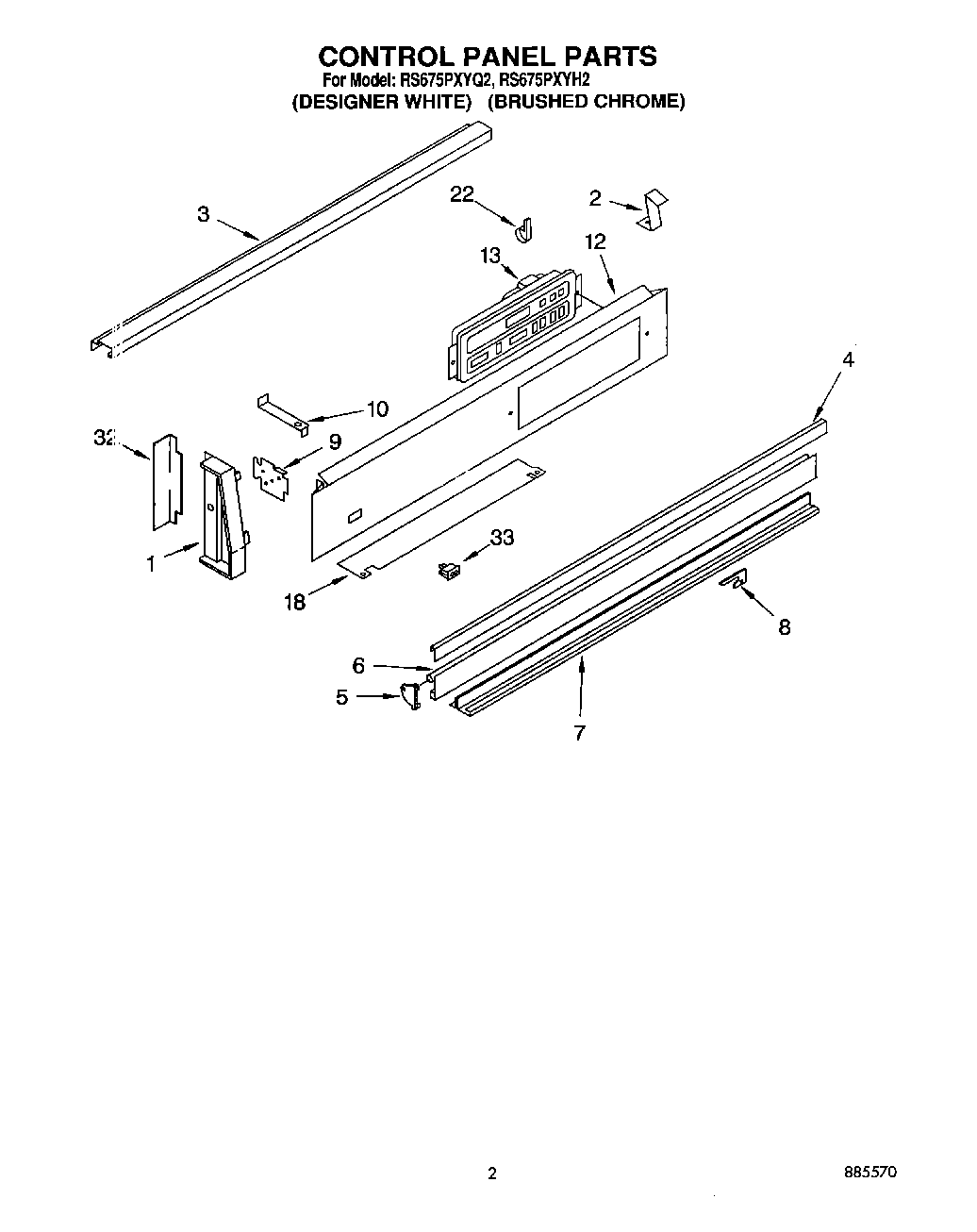

RS675PXYH2 02 – CONTROL PANEL

Products

Position	Product
1	End Cap Black (Right Hand)
1	End Cap Black (Left Hand)
1	End Cap (R.H.)
1	End Cap (L.H.)
2	Bracket, Control
3	Rail, Top
4	Trim, Center (Black)
4	Trim, Center (White)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent (Black)
6	Door, Vent (Brushed Aluminum)
7	Trim, Bottom
7	Screw, 10-32 x 1/2
8	Shield, Air
9	Cover, Side (Left Hand)
9	Cover, Side (Right Hand)
10	WP965173 Whirlpool Dishwasher Screw
10	Support, Rail
12	Panel, Control (Black)
12	Panel, Control (White)
13	Control, Electronic (Black)
13	Control, Electronic (White)
13	Screw (2)
18	Shield, Control
22	WP488729 Whirlpool Refrigerator Door Screw
22	488946 Whirlpool Air Conditioner Clamp
32	Trim, End Cap (Black)
32	Trim, End Cap (White)
33	Switch, Rocker
33	Switch, Rocker (White)
