RS675PXYQ0 02 – COOKTOP

RS675PXYQ0 02 – COOKTOP

Written by

in

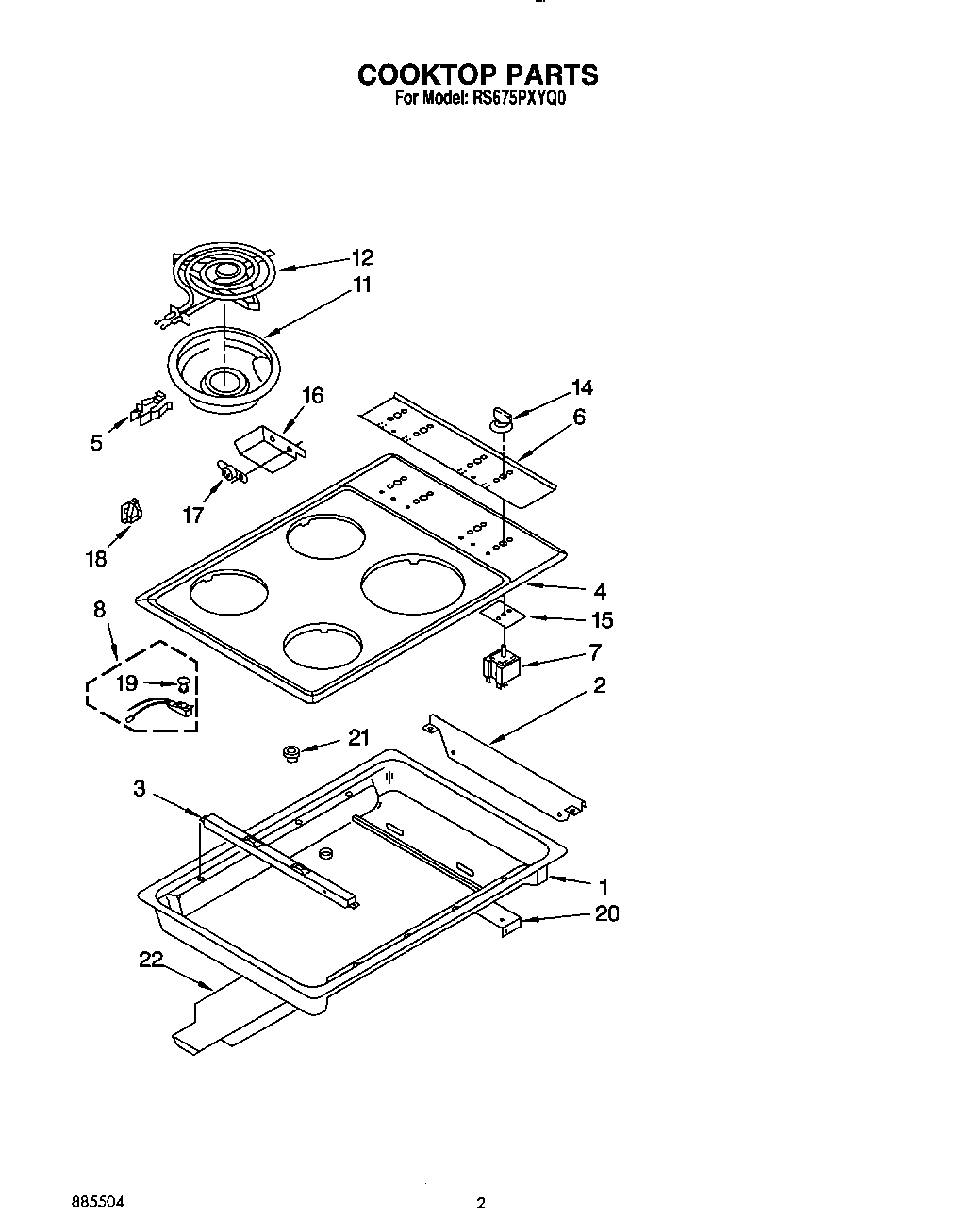

RS675PXYQ0 02 – COOKTOP

Products

PositionProduct
1Burner Box
2Shield, Switch
3Support, Cooktop
4Cooktop (White)
4Cooktop (Brushed Chrome)
5BURNER RECEPTACLE KIT
6Panel, Control
6Panel, Control (White)
7Switch, Infinite (6“ Element (2))
7WP3148966 Whirlpool Infinite Switch
8Indicator, Light (Includes No. 14)
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WP660532 Whirlpool Oven Surface Element
12WP660533 Whirlpool Oven 8" Surface Element
14Knob, Control (4)
14WP3183119 Whirlpool Knob Assembly
153183956 Whirlpool Oven Seal Switch
16Bracket, Sensor
17Thermostat
17WP313808 Whirlpool Screw
18814103 Whirlpool Clip
19Lens, Light
20Support, Box
21WPL 258109
22WP488729 Whirlpool Refrigerator Door Screw
22Cover, Top Rear
