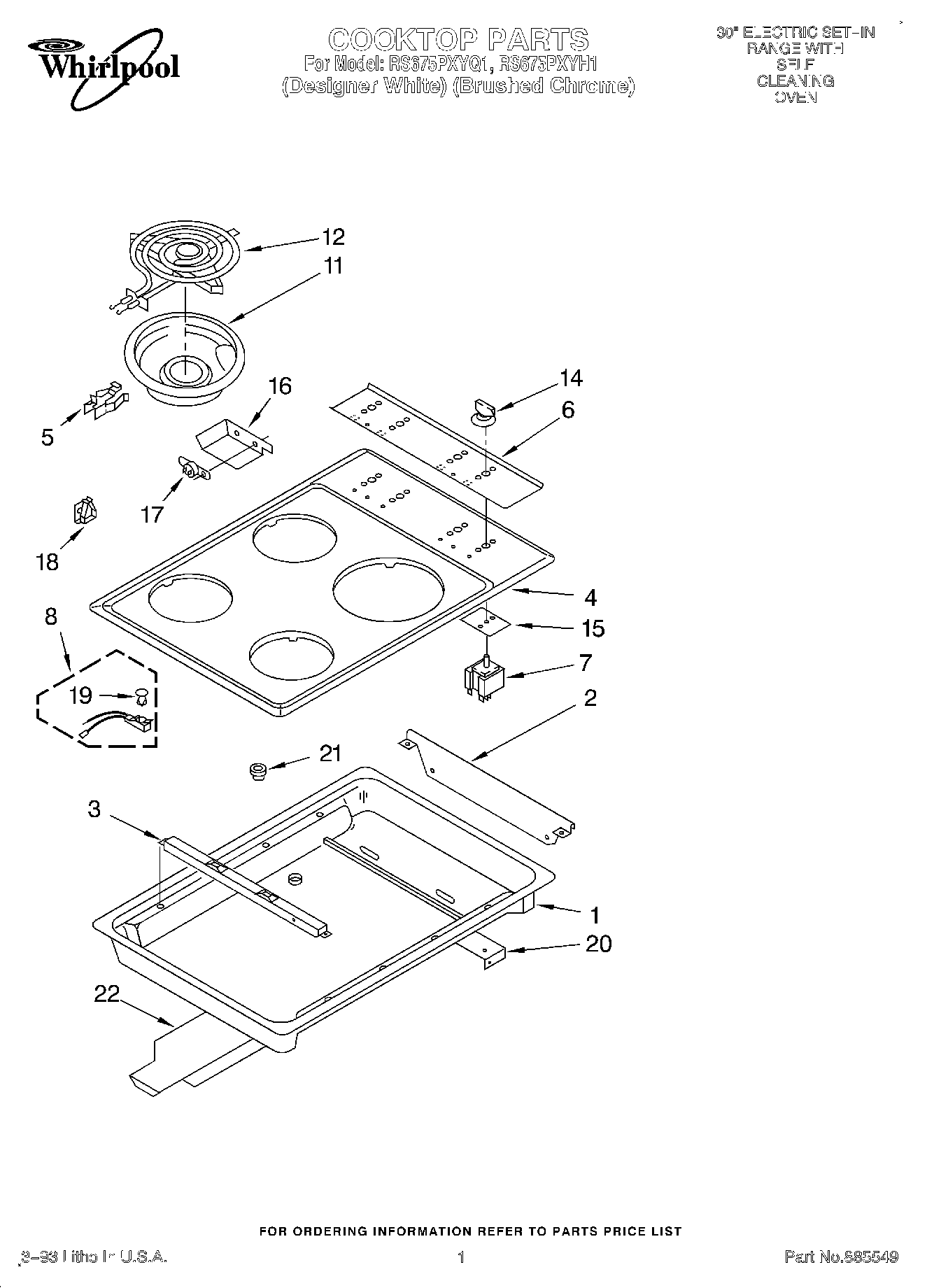

RS675PXYQ1 01 – COOKTOP

Products

Position	Product
1	Box, Burner
2	Shield, Switch
3	Support, Cooktop
4	Cooktop (Brushed Chrome)
4	Cooktop (White)
5	BURNER RECEPTACLE KIT
6	Panel, Control (White)
6	Panel, Control
7	WP3148966 Whirlpool Infinite Switch
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Infinite (6“ Element (2))
8	Indicator, Light (Includes No. 14)
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WP660532 Whirlpool Oven Surface Element
12	WP660533 Whirlpool Oven 8" Surface Element
14	WP3183119 Whirlpool Knob Assembly
14	Knob, Control (4)
15	3183956 Whirlpool Oven Seal Switch
16	Bracket, Sensor
17	Thermostat
17	WP313808 Whirlpool Screw
18	814103 Whirlpool Clip
19	Lens, Light
20	Support, Box
21	WPL 258109
22	WP488729 Whirlpool Refrigerator Door Screw
22	Cover, Top Rear
22	WPL 312318
