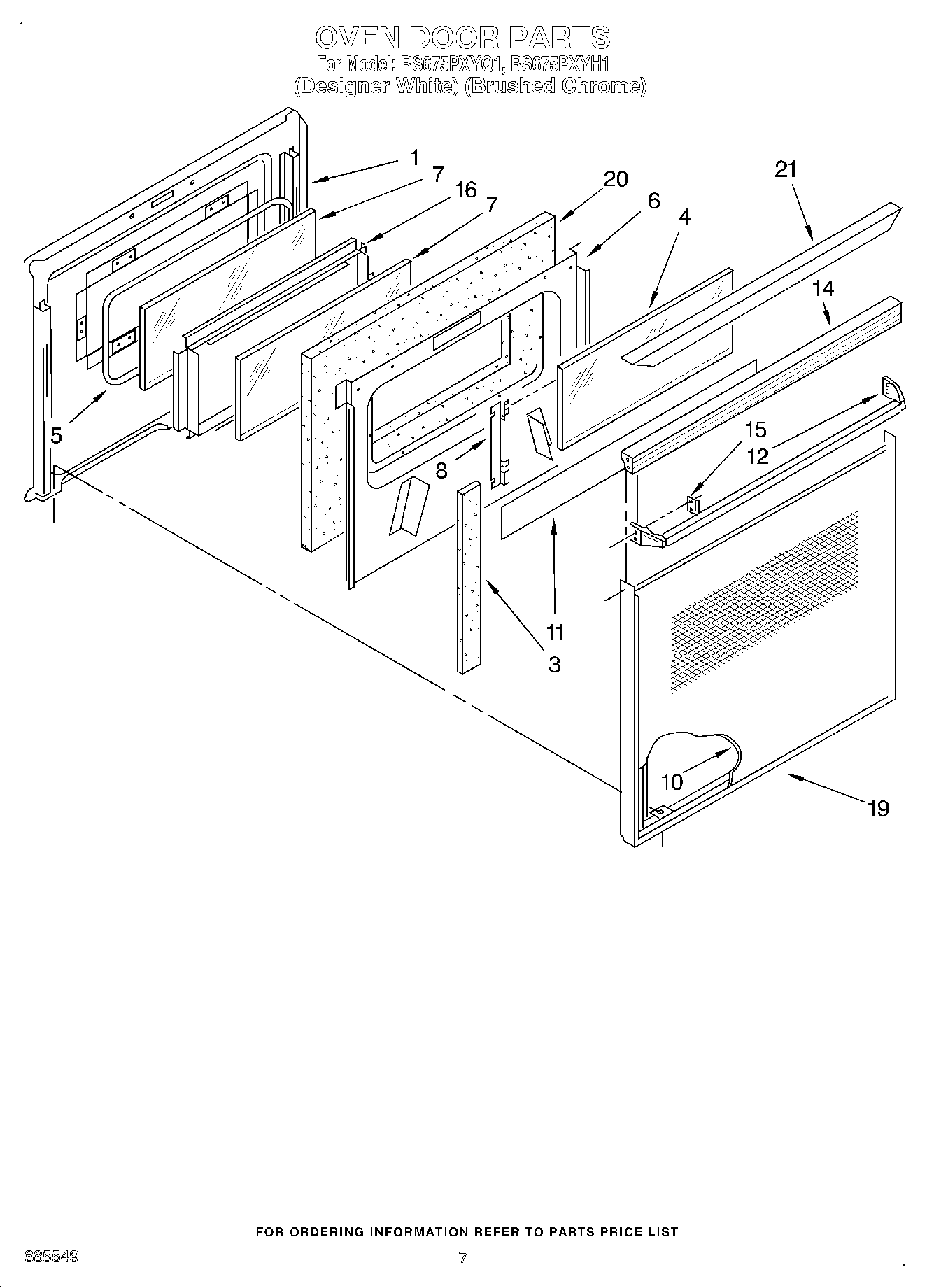

RS675PXYQ1 05 – OVEN DOOR

Products

Position	Product
1	Screw, 10A x 1/2 (2) (Black)
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Door (White)
12	Handle, Oven Door
14	Top, Door (White Model)
14	Top, Door (Black Model)
14	Screw, (2) 10-16 x 1/2
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Insulation, Door
21	Cap, Top
21	WP308685 Whirlpool Microwave Screw
