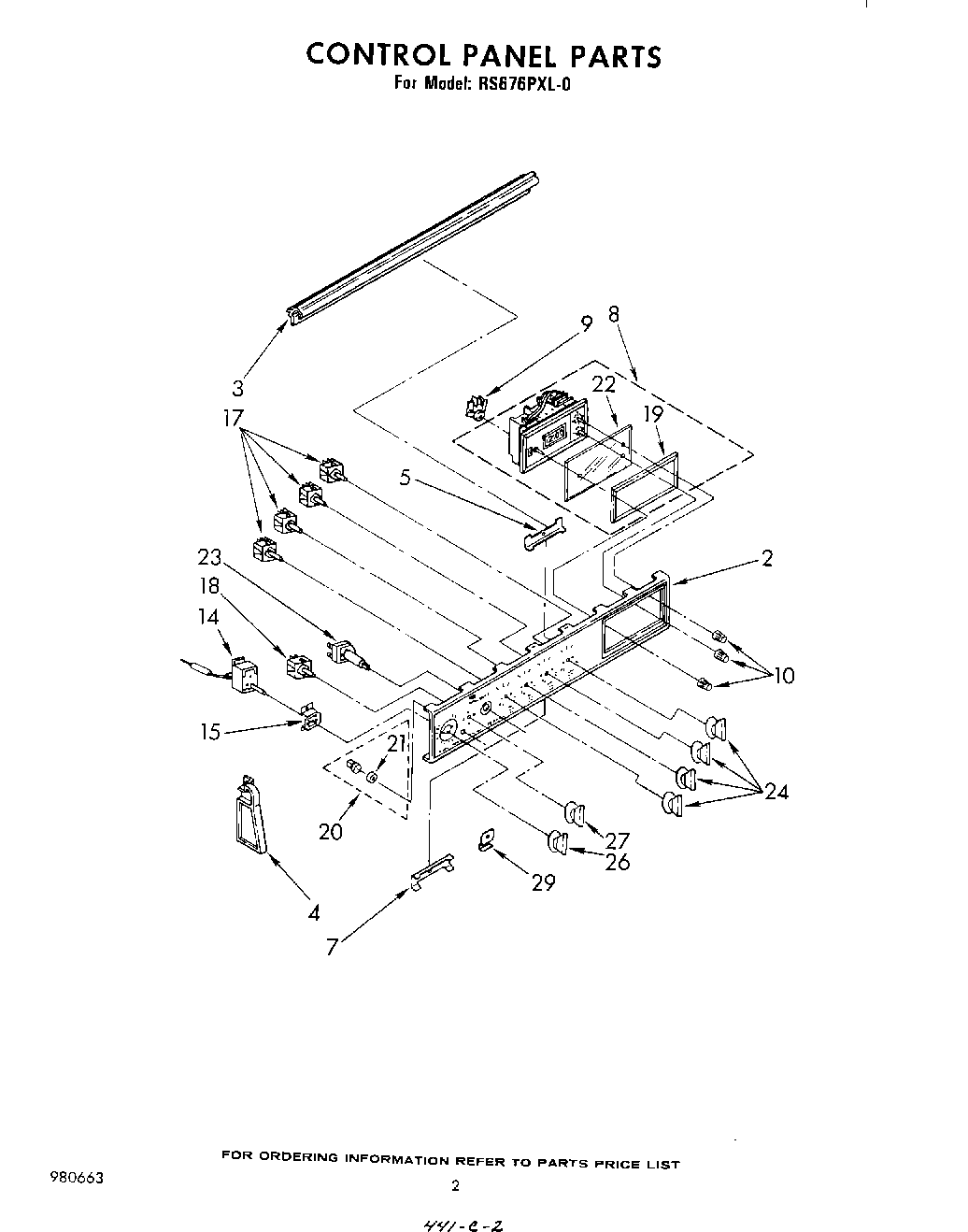

RS676PXL0 02 – CONTROL PANEL

Products

Position	Product
2	Switch, Infinite (4) (Screw, 8-32 x 3/16 (8))
3	Rail, Control Panel (Bottom)
3	Rail, Control Panel (Top)
4	End Cap L.H.
4	End Cap R.H.
5	Bracket, Control Panel (Upper)
7	Screw, 8-32 x 3/8 (2)
7	Bracket, Control Panel (Lower)
8	Timer, Range (Includes Illus. 21 & 22)
9	WPL 866403
10	WPL 241383
14	Thermostat
15	Bracket, Thermostat Mounting
17	W10900107 Whirlpool Oven Surface Element Switch
18	WPL 486525
18	Switch, Oven Selector
19	WPL 834764
20	Light Indicator (Oven)
21	Lens, Signal (Red)
22	Glass, Clock
23	WPL 98754
23	Switch, Oven Light
23	Nut, 3/8-27
24	Knob, Control (2) (Oven Selector & Thermostat)
26	WPL 868997
27	WPL 868998
29	Screw, 10-24 x 1/2 (3)
29	Bracket, Control Panel
