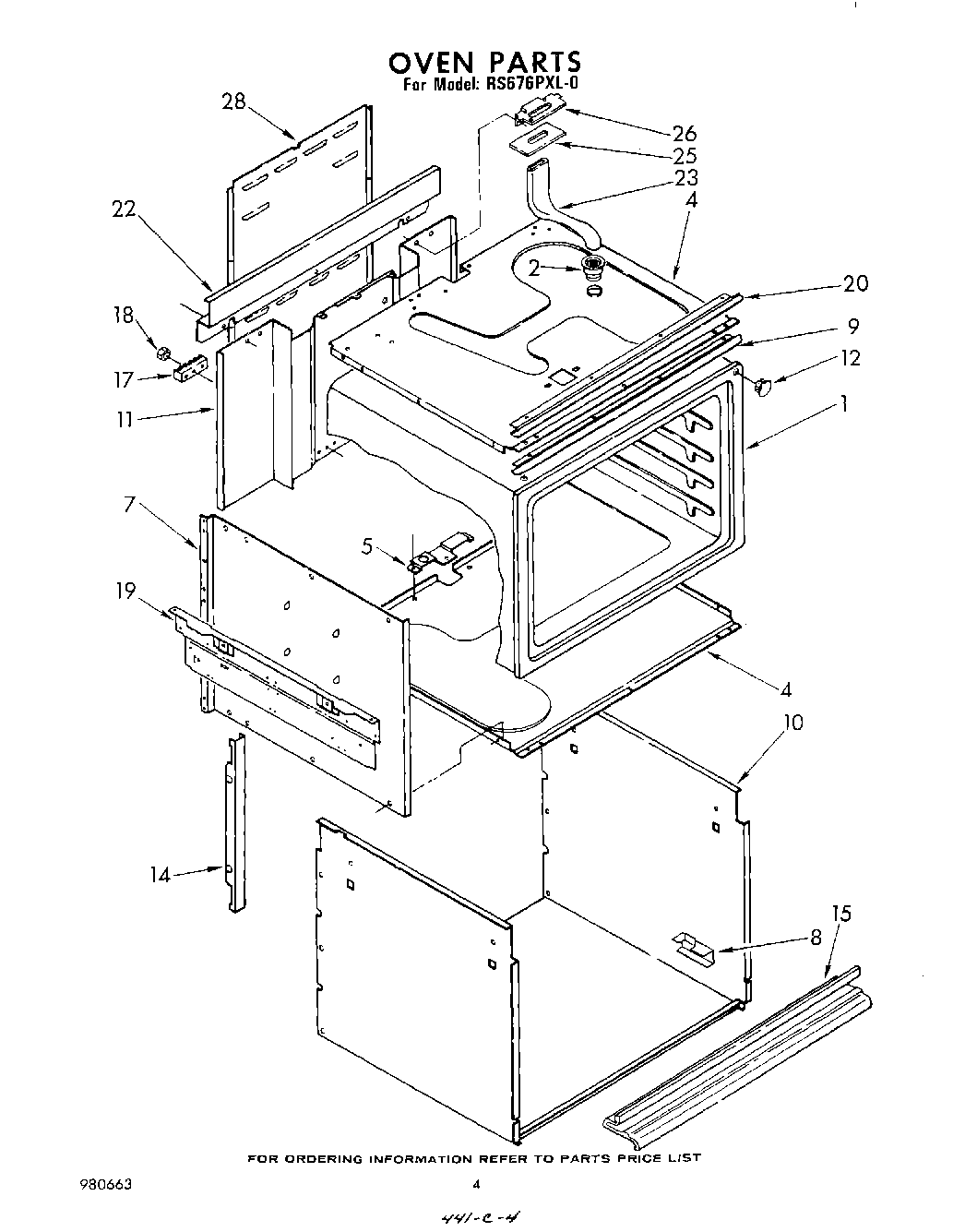

| 1 | Rail, Drawer (R.H.) |
| 2 | Vent Tube (Alternate) |
| 2 | Screw, 10-24 x 3/8 (2) |
| 2 | Vent Tube (Alternate) |
| 4 | Retainer Insulation (Bottom & Top) |
| 5 | Bracket, Conduit |
| 7 | Retainer Insulation Side (2) |
| 8 | Bracket, Wrapper Support (L.H. (2)) |
| 8 | Bracket, Wrapper Support (R.H. (2)) |
| 9 | Bracket, Cooktop |
| 10 | Wrapper Range |
| 11 | Back Range Lower |
| 11 | Screw,10-24 x 1/2 |
| 12 | Button, Plug |
| 14 | Trim, Oven Front (2) |
| 15 | WP965173 Whirlpool Dishwasher Screw |
| 15 | Grille, Bottom |
| 17 | WPL 834649 |
| 17 | WP8203546 Whirlpool Terminal Block |
| 18 | Hex Nut, 10-32 (6) |
| 19 | Panel, Side (Upper) (2) |
| 20 | Washer, Flat (4) |
| 20 | Deflector, Heat |
| 20 | Screw (4) |
| 22 | Back, Range |
| 23 | Tube, Oven Vent (Upper) |
| 25 | Gasket, Vent Tube |
| 26 | Bracket, Vent Tube |
| 28 | Washer (3) |
| 28 | Screw, 10-24 x 1/2 (3) |
| 28 | Cover Wiring, Low |
