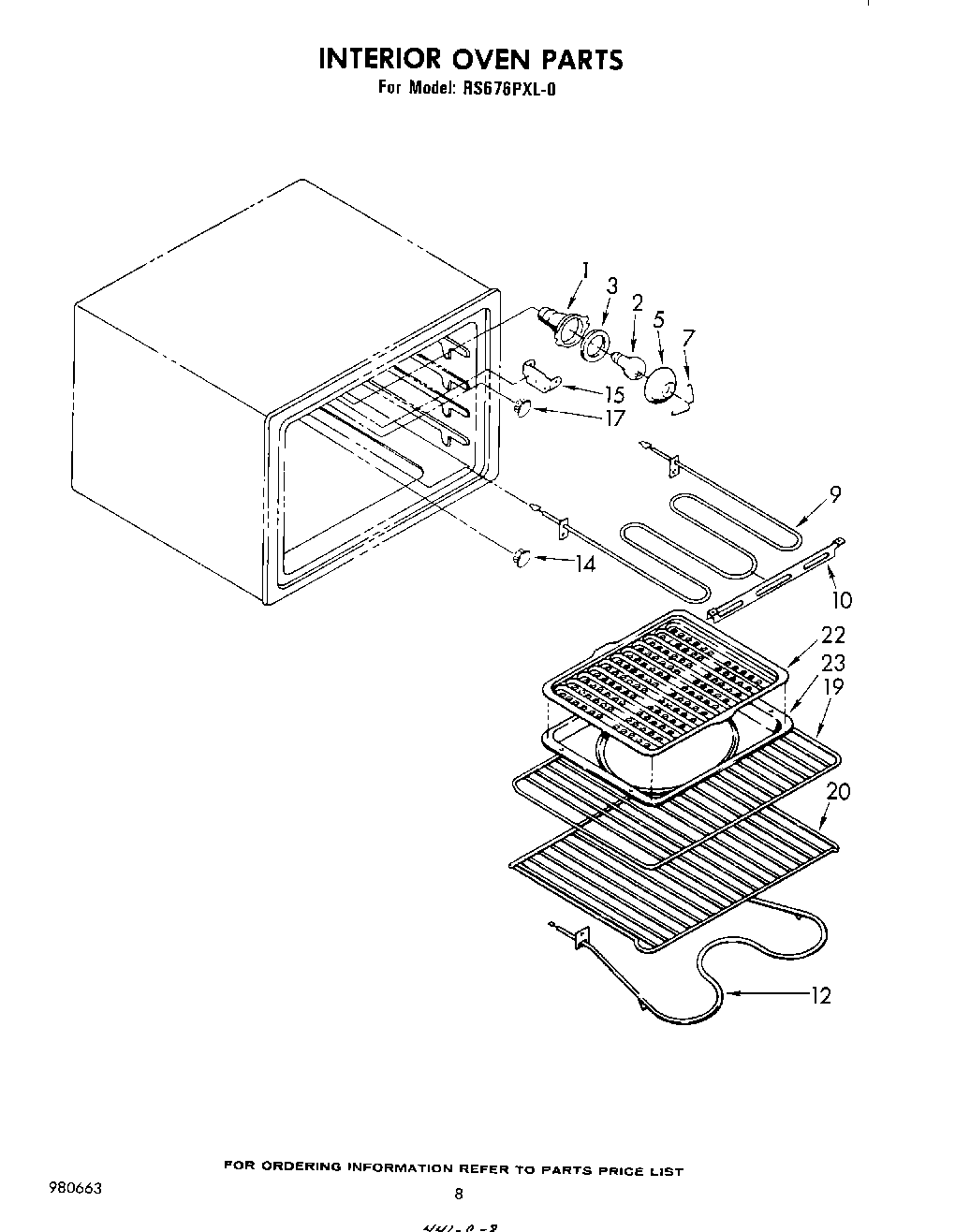

RS676PXL0 05 – INTERIOR OVEN

Products

Position	Product
1	WPL 834649
1	Socket, Light
1	Washer (2)
2	RANGE ONLY 40W 120V APPL BULB
3	Gasket, Light
5	Cover, Light
7	retainer, oven light
9	Unit, Broil
10	Hanger, Broil Unit
12	WP865940 Whirlpool Bake Element
14	Button, Plug
15	Unit Bake (Screw, 10-24 x 1/2 (2))
15	Bracket, Thermo Bulb
17	Plug, Button
19	WPL 865983
20	Rack, Oven Offset
22	4396923 Whirlpool Broil Pan Set Gray Porcelain
23	Pan, Broiler
