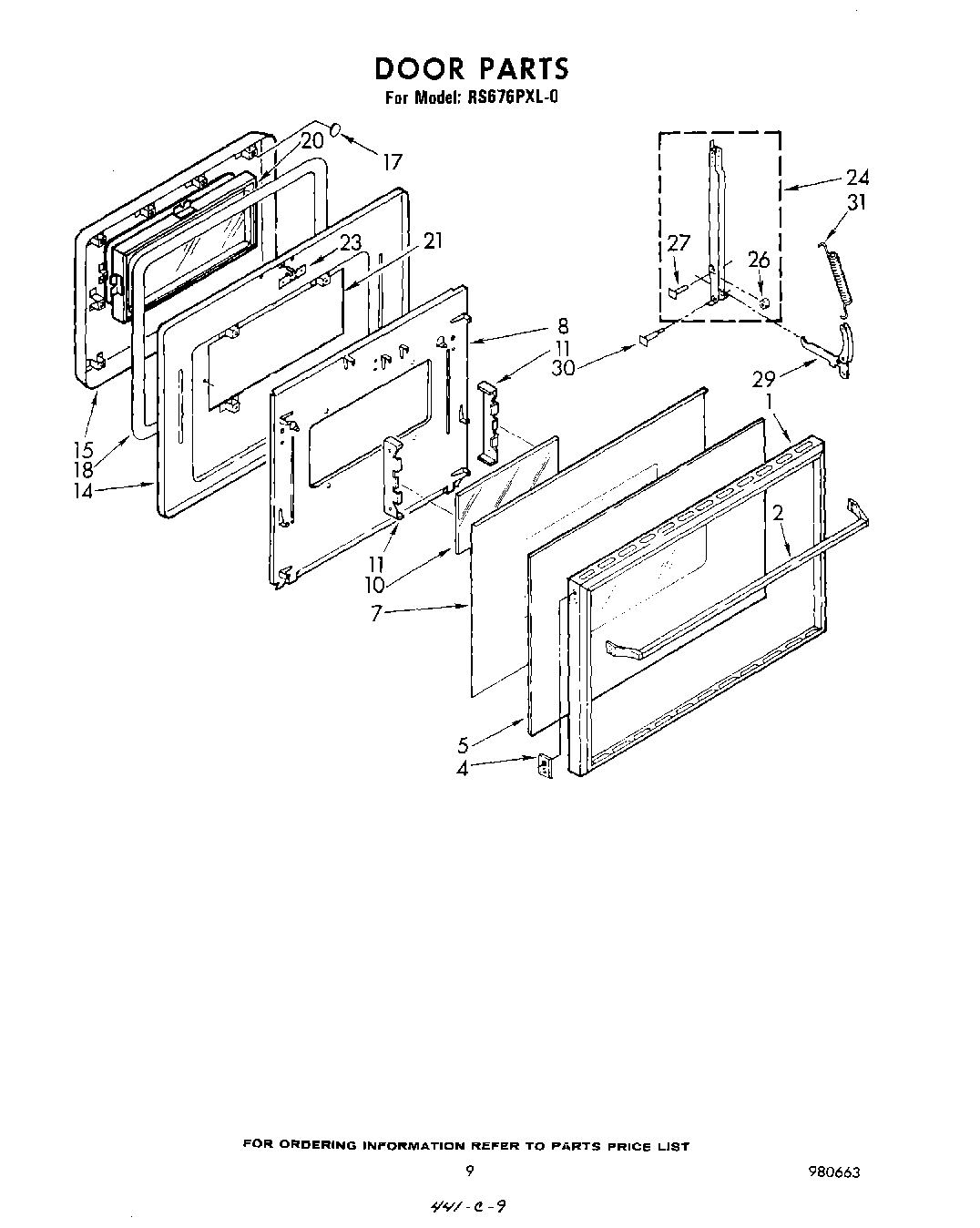

RS676PXL0 06 – DOORadmin2025-04-26T12:49:50+00:00RS676PXL0 06 – DOOR
Products
| Position | Product |
|---|
| 1 | Frame, Oven Door |
| 2 | Handle, Door |
| 4 | Trim, Frame (2) |
| 4 | Screw, 6-32 x 3/8 (4) |
| 4 | Nut |
| 5 | Glass, Outer (Black) |
| 7 | Panel, Heat Reflector |
| 8 | Panel, Airwash |
| 8 | 340184 Whirlpool Screw |
| 10 | Glass, Inner |
| 11 | Retainer, Glass |
| 14 | Liner, Oven Door |
| 15 | Baffle |
| 17 | Plug Button 3/16`` (2) |
| 18 | Seal, Oven Door |
| 20 | Window Assembly |
| 21 | Seal, Window |
| 21 | Screw, 10-24 x 1/2 (3) |
| 23 | Strike |
| 23 | Screw 10-24 x 1/2 |
| 24 | Channel Assembly |
| 24 | Screw |
| 26 | Washer (2) |
| 26 | Roller, Stop (2) |
| 27 | Rivet (2) |
| 29 | Arm Assembly (2) |
| 30 | Pin, Hinge (2) |
| 31 | Spring, Door (2) |
