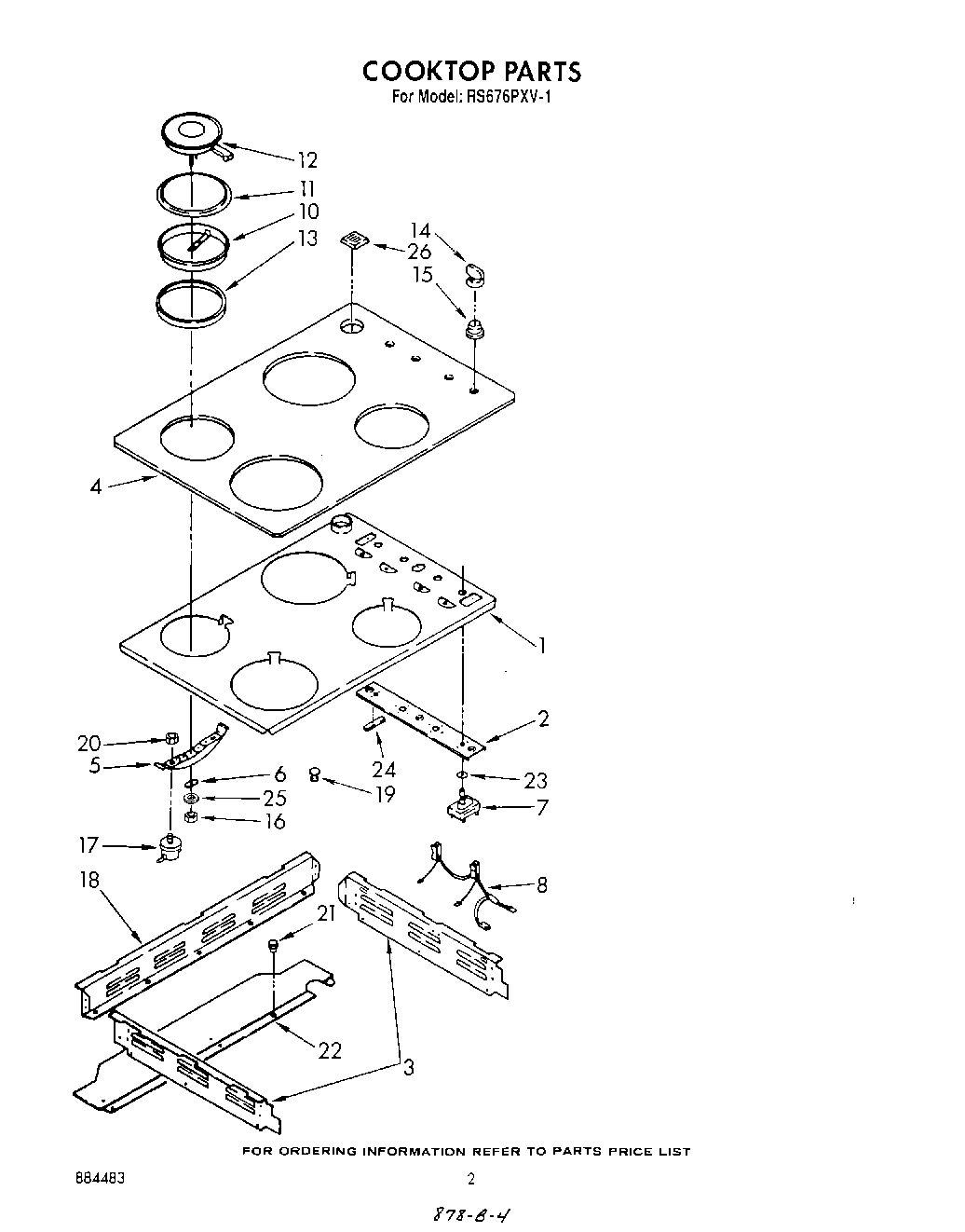

RS676PXV1 02 – COOKTOP

Products

Position	Product
1	Plate, Backup
2	Screw,
2	Bracket, Switch
3	Rail, Support (L.H.)
3	Rail, Support (R.H.)
4	Cooktop, Glass
5	bracket, element (2.0 KW)
5	bracket, element (1.5 KW)
6	Spring, Leaf
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Inifinite (Front Burner (Green Shaft))
8	Light, Indicator
9	WPL 312318
10	gasket, ring (1.5 KW)
10	gasket, ring (2.0 KW)
11	Ring, Intermediate (White 8“)
11	Ring, Intermediate (White 6“)
12	WP3147131 Whirlpool Surface Element
12	WP3147132 Whirlpool Surface Element
13	8“ Seal (2)
13	6“ Seal (2)
14	Knob, Control
15	Seal, Infinate Switch (4)
16	hex nut (8)
17	Thermostat (2)
18	Rail, Back, Support (2)
18	WP487887 Whirlpool Refrigerator Screw
19	Light Lens (2)
20	Nut, Metric
21	WPL 258109
22	Cover, Top Rear
22	WP488729 Whirlpool Refrigerator Door Screw
23	Seal, Switch Shaft (2)
24	Tape, Foam
25	Washer, Flat (4)
26	Cover, Vent
