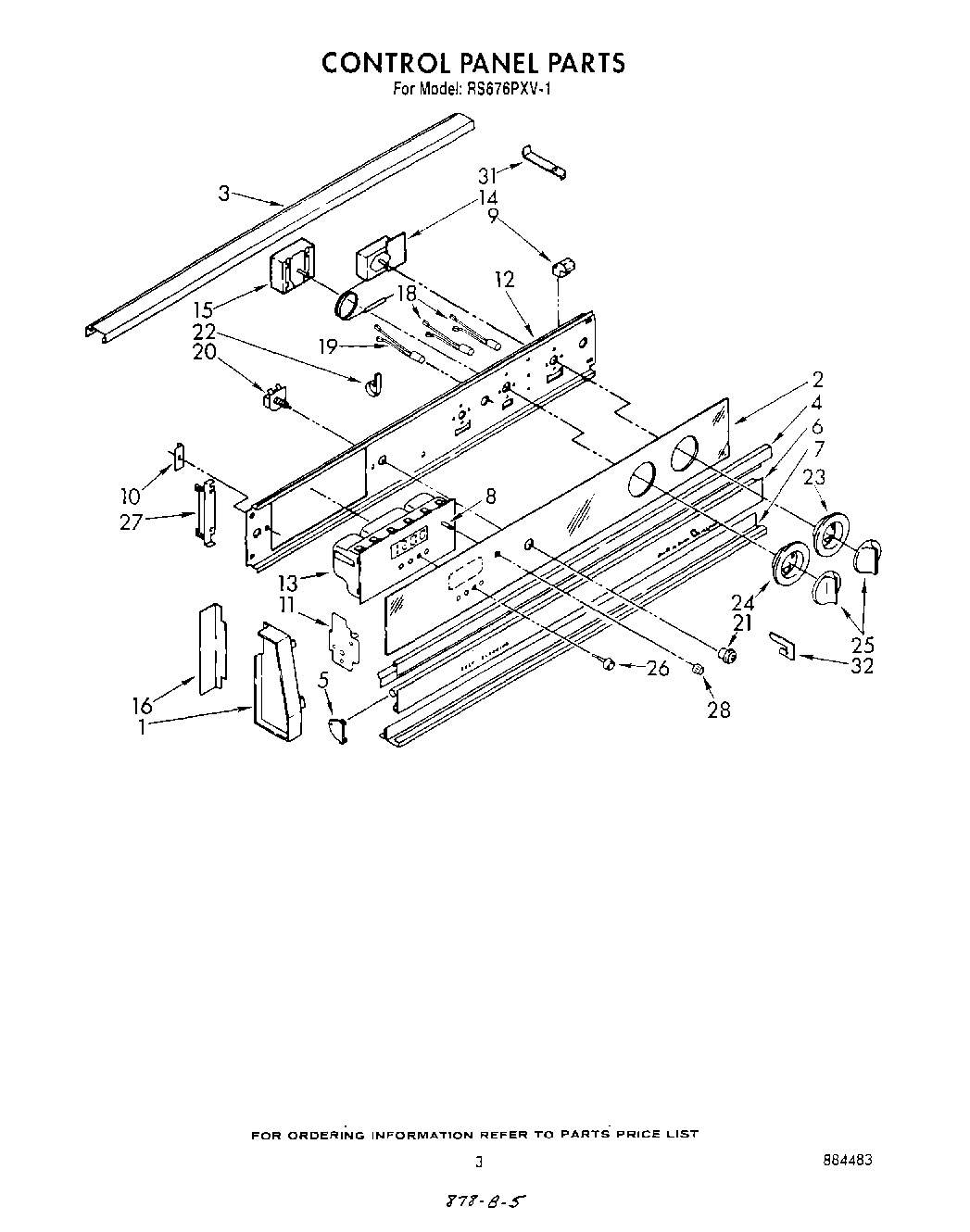

RS676PXV1 03 – CONTROL PANEL

Products

Position	Product
1	End Cap Black (Left Hand)
1	End Cap Black (Right Hand)
1	Screw, 10A x 1/2 (2) (Black)
2	Glass, Panel
3	Rail, Top
4	Trim, Center (White)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
6	Door, Vent (Brushed Chrome)
7	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Shaft, Bit Generator
9	Retainer, Glass (4)
10	Bracket, Timer (2)
11	Cover, Side (Left Hand)
11	Cover, Side (Right Hand)
11	Screw (2)
12	Bracket, Control
13	Timer
14	screw, 6-32 x 1/4 (2)
14	Thermostat, Oven
15	WP486579 Whirlpool Air Conditioner Screw
15	Selector Switch
16	Trim, End Cap (White)
18	Indicator Light (4)
19	Light, Indicator Standard Clean
20	Lockwasher
20	White Model
21	Bezel, Switch (White)
22	WP308605 Whirlpool Refrigerator Clamp
22	Screw (2)
23	Escutcheon, Thermostat Upper Oven (White)
24	WP311068 Whirlpool Dial Knob Black
24	Screw,
25	Knob, Control (2)
26	WPL 3149177
27	Bracket, Control (2)
28	Knob, Bit Generat
31	Support, Rail
32	Shield, Air
