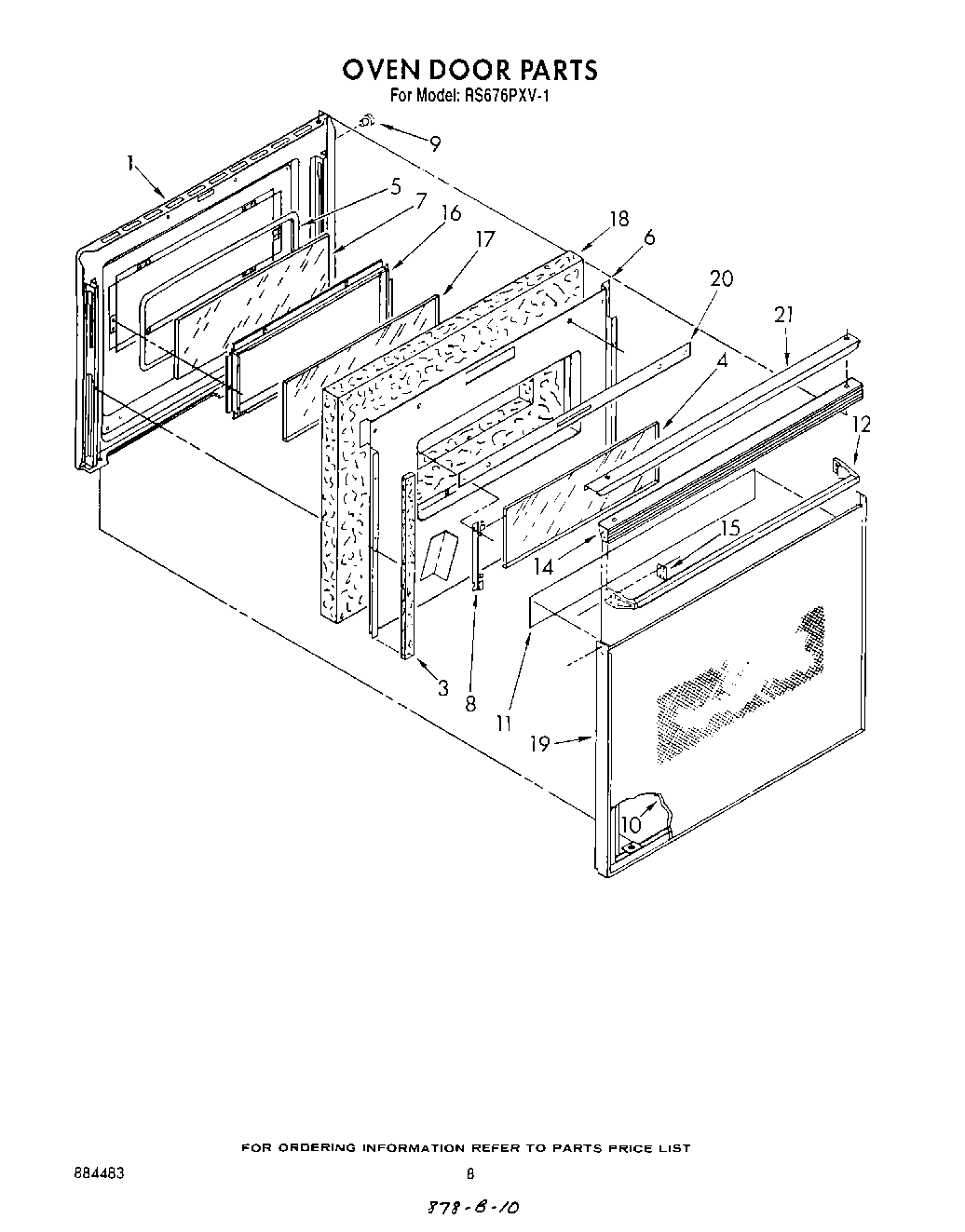

RS676PXV1 06 – OVEN DOOR

RS676PXV1 06 – OVEN DOOR

Written by

in

RS676PXV1 06 – OVEN DOOR

Products

PositionProduct
1Screw, 10A x 1/2 (2) (Black)
1Liner, Door
3Seal, Flange (2)
4Glass, Reflective
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
9Bumper (4)
10Glass, Panel (White)
11Foil, Door
12Handle, Door (White)
14Top, Door (White Model)
15WP308685 Whirlpool Microwave Screw
15Clip, Mtg (2)
15WP355515 Whirlpool Screw
16Frame, Inner
16Screw
18Insulation, Door
19Frame, Door
20Sheild, Door
20Screw,
21Cap, Top
