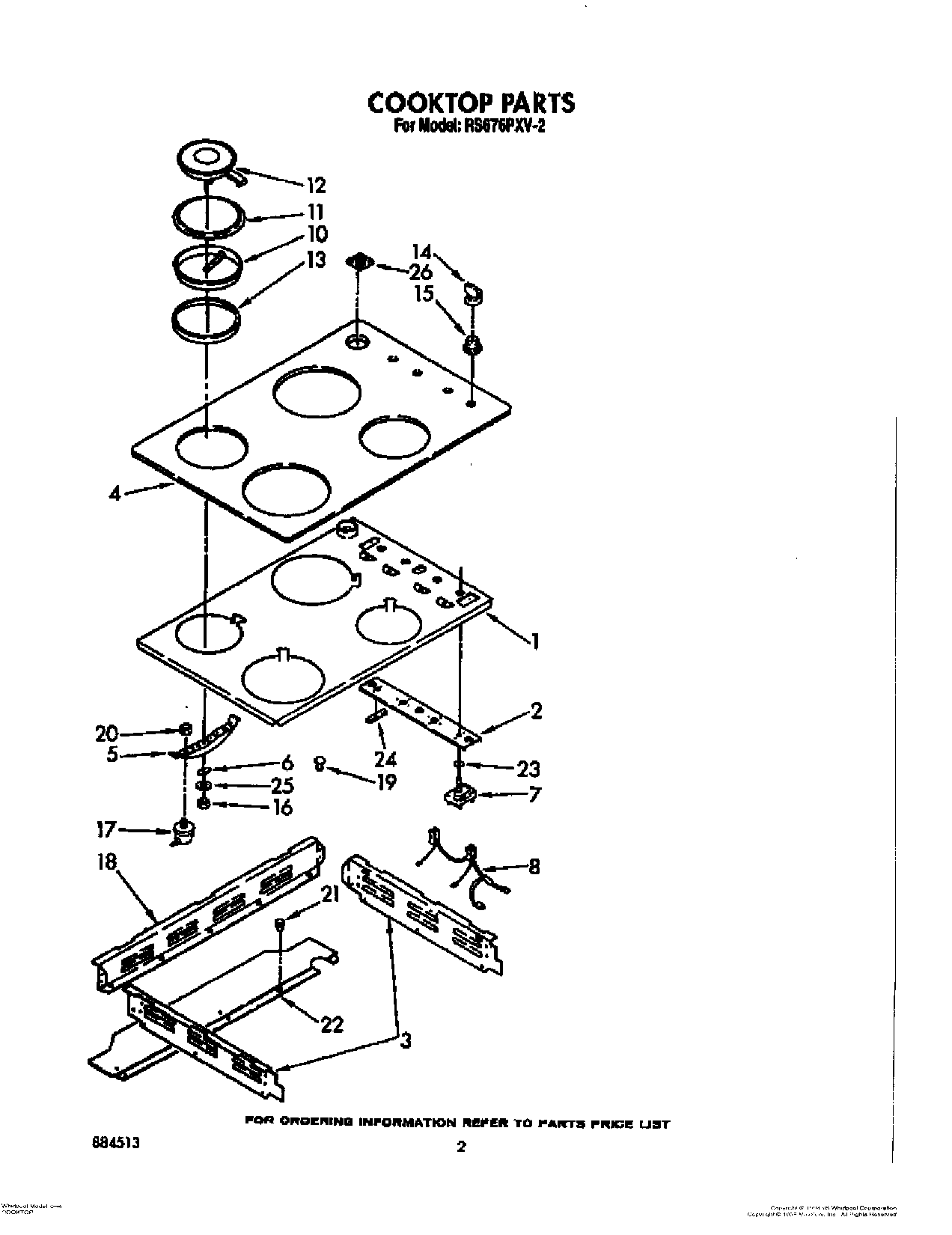

RS676PXV2 02 – COOKTOP

Products

Position	Product
1	Plate, Backup
2	Screw,
2	Bracket, Switch
3	Rail, Support (R.H.)
3	Rail, Support (L.H.)
4	Cooktop, Glass
4	WP488729 Whirlpool Refrigerator Door Screw
5	bracket, element (1.5 KW)
5	bracket, element (2.0 KW)
6	Spring, Leaf
7	Switch, Inifinite (Front Burner (Green Shaft))
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Infinite (Use W/1400W Left Rear Burner)
8	Light, Indicator
10	gasket, ring (2.0 KW)
10	gasket, ring (1.5 KW)
11	Ring, Intermediate (White 8“)
11	Ring, Intermediate (White 6“)
12	WP3147131 Whirlpool Surface Element
12	WP3147132 Whirlpool Surface Element
13	6“ Seal (2)
13	8“ Seal (2)
14	Knob, Control
15	Seal, Infinate Switch (4)
16	hex nut (8)
17	Thermostat (2)
18	Rail, Back, Support (2)
18	SCREW
19	Light Lens (2)
20	Nut, Metric
21	WPL 258109
22	Cover, Top Rear
23	Seal, Switch Shaft (2)
24	Tape, Foam
25	Washer, Flat (4)
26	Cover, Vent
