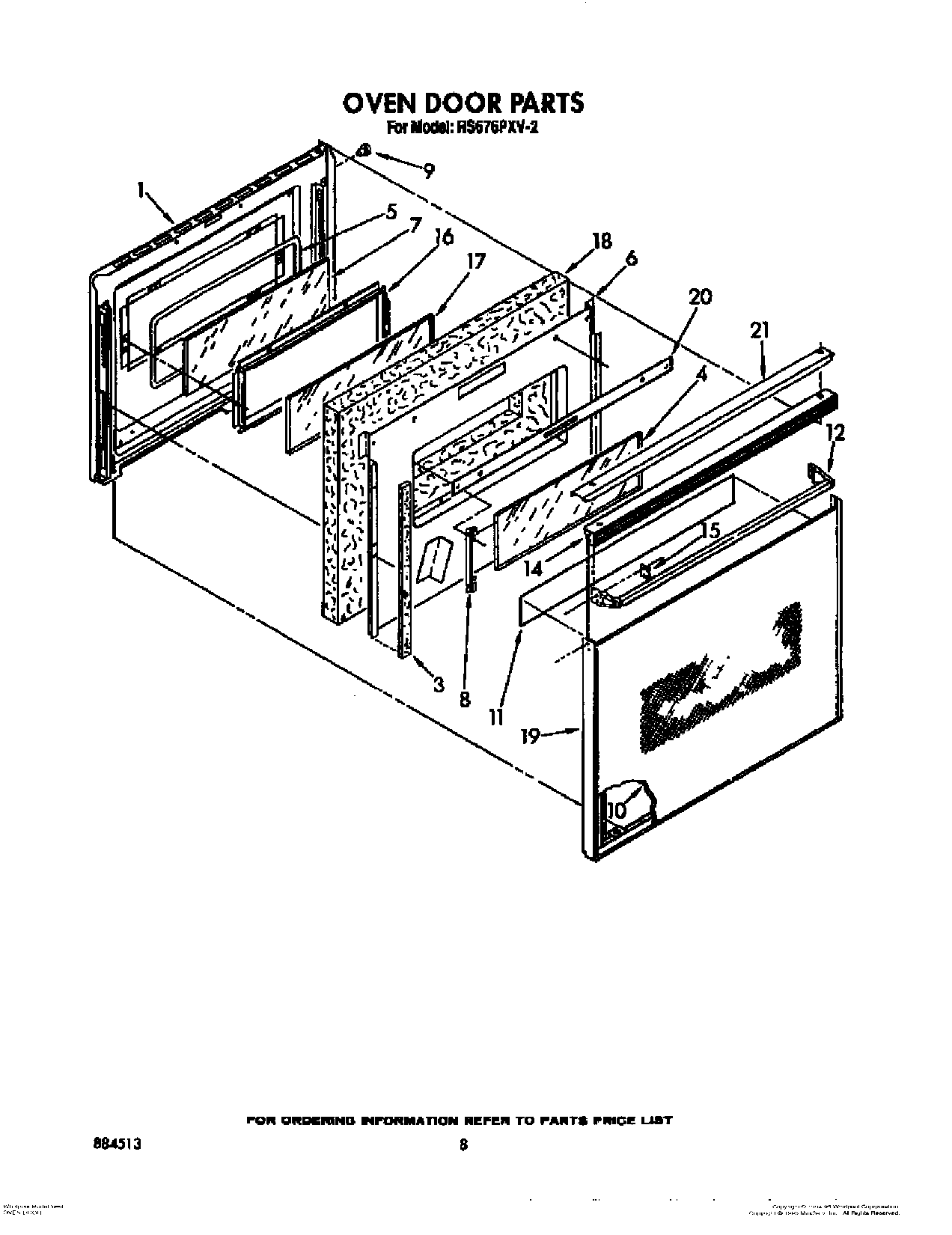

RS676PXV2 06 – OVEN DOOR

Products

Position	Product
1	Screw, 10A x 1/2 (2) (Black)
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Door (White)
14	Top, Door (White Model)
15	WP308685 Whirlpool Microwave Screw
15	WP355515 Whirlpool Screw
15	Clip, Mtg (2)
16	Screw
16	Frame, Inner
18	Insulation, Door
19	Frame, Door
20	Sheild, Door
20	Screw,
21	Cap, Top
