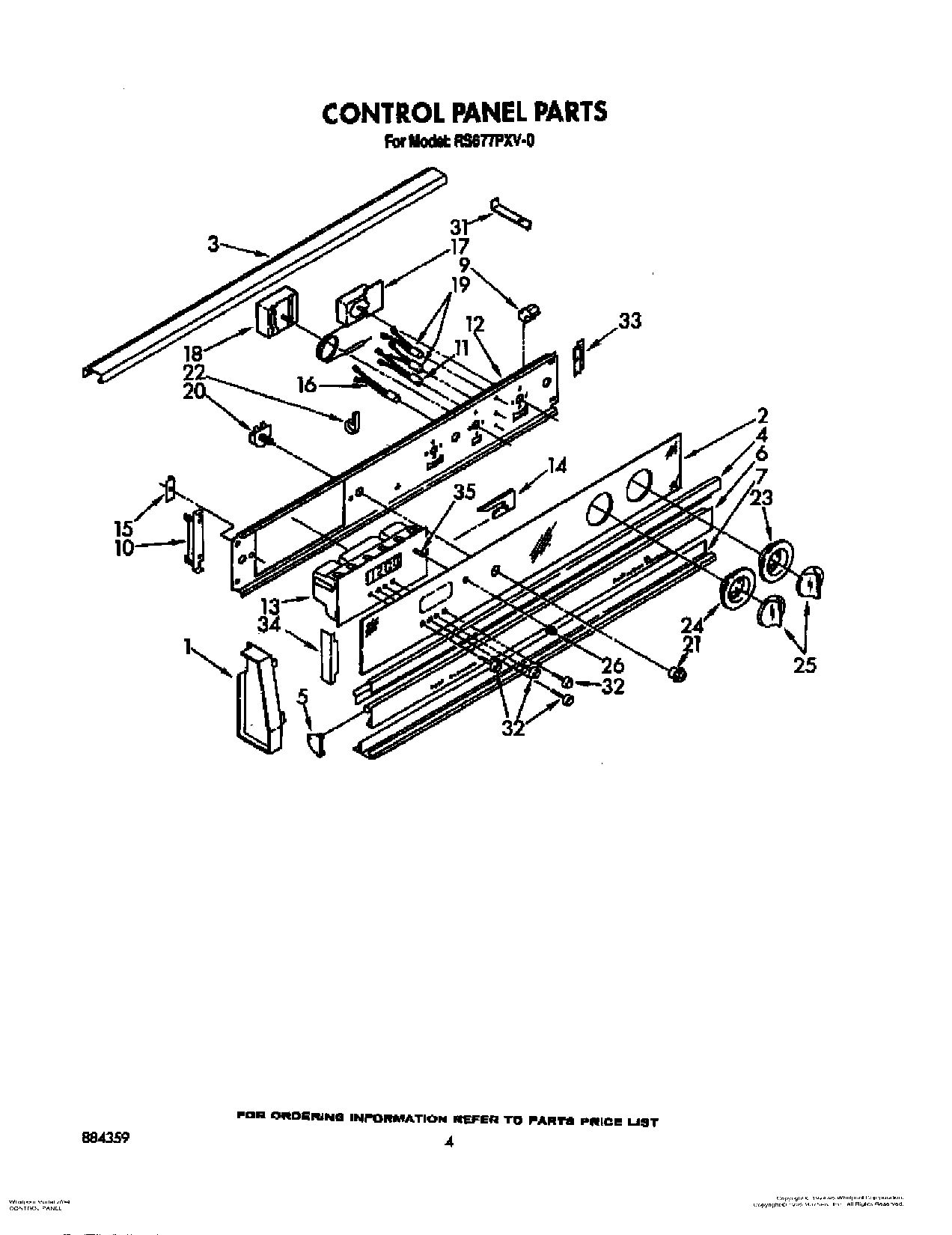

RS677PXV0 03 – CONTROL PANEL

Products

Position	Product
1	End Cap (R.H.)
1	End Cap (L.H.)
2	Glass, Panel
3	Rail, Top
4	Trim, Center (Black)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent
7	Trim, Bottom
7	Screw, 10-32 x 1/2
9	Retainer, Glass (4)
10	Bracket, Control (2)
12	Bracket, Control
13	Timer, Digital (Includes Knobs)
14	Shield, Air
15	Bracket, Timer (2)
16	Light, Indicator Standard Clean
17	Thermostat, Oven
17	screw, 6-32 x 1/4 (2)
18	Selector Switch
18	WP486579 Whirlpool Air Conditioner Screw
19	Indicator Light (4)
20	Switch, Oven Light
20	Lockwasher
20	WP965173 Whirlpool Dishwasher Screw
21	Bezel Switch (1)
22	Screw (2)
22	WP308605 Whirlpool Refrigerator Clamp
23	Escutcheon, Thermostat
24	WP311068 Whirlpool Dial Knob Black
24	Screw,
25	WP3150371 Whirlpool Control Knob
26	Knob, Bit Generator (Black)
31	Support, Rail
32	WPL 313958
33	Bracket (2)
34	Trim, End Cap (Black)
35	Shaft, Bit Generator
