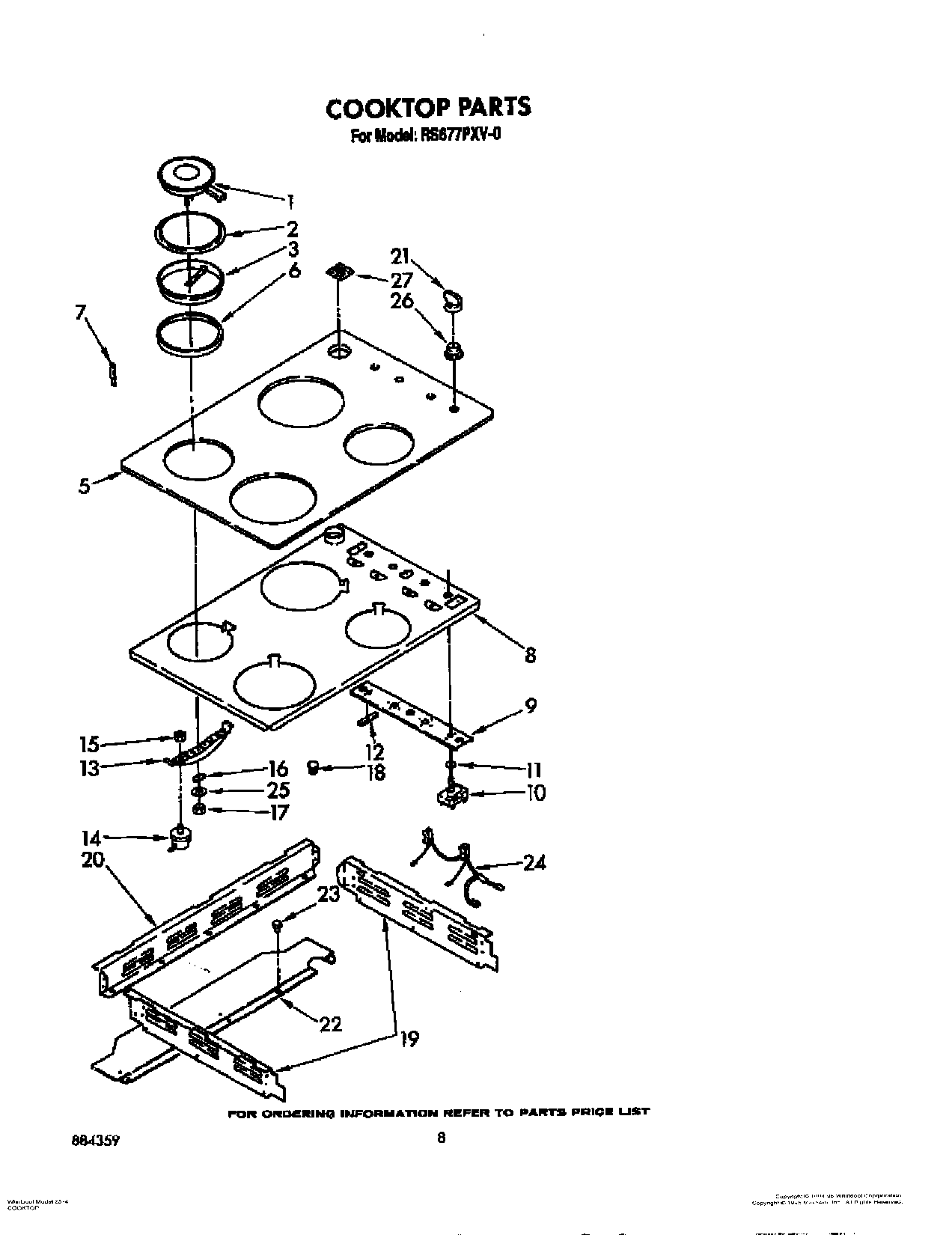

RS677PXV0 06 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
1	WP3147132 Whirlpool Surface Element
1	WP3147131 Whirlpool Surface Element
2	ring, intermediate (2) (8“)
2	Ring, Intermediate (2) (6“)
3	gasket, ring (2.0 KW)
3	gasket, ring (1.5 KW)
5	Glass, Top
6	8“ Seal (2)
6	6“ Seal (2)
7	Seal, Hook
8	Plate, Backup
9	Screw,
9	Bracket, Switch
10	Switch, Inifinite (Front Burner (Green Shaft))
10	Switch, Infinite (Use W/1400W Left Rear Burner)
11	Seal, Switch Shaft (2)
12	Tape, Foam
13	bracket, element (1.5 KW)
13	bracket, element (2.0 KW)
14	Thermostat (2)
15	Nut, Metric
16	Spring, Leaf
17	hex nut (8)
18	Lens, Red (2)
19	Rail, Support (R.H.)
19	Rail, Support (L.H.)
20	Rail, Back, Support (2)
21	Knob, Control (4)
22	Cover, Top Rear
23	WPL 258109
23	WP488729 Whirlpool Refrigerator Door Screw
24	Light, Indicator
25	Washer, Flat (4)
26	Seal, Infinate Switch (4)
27	Cover, Vent
