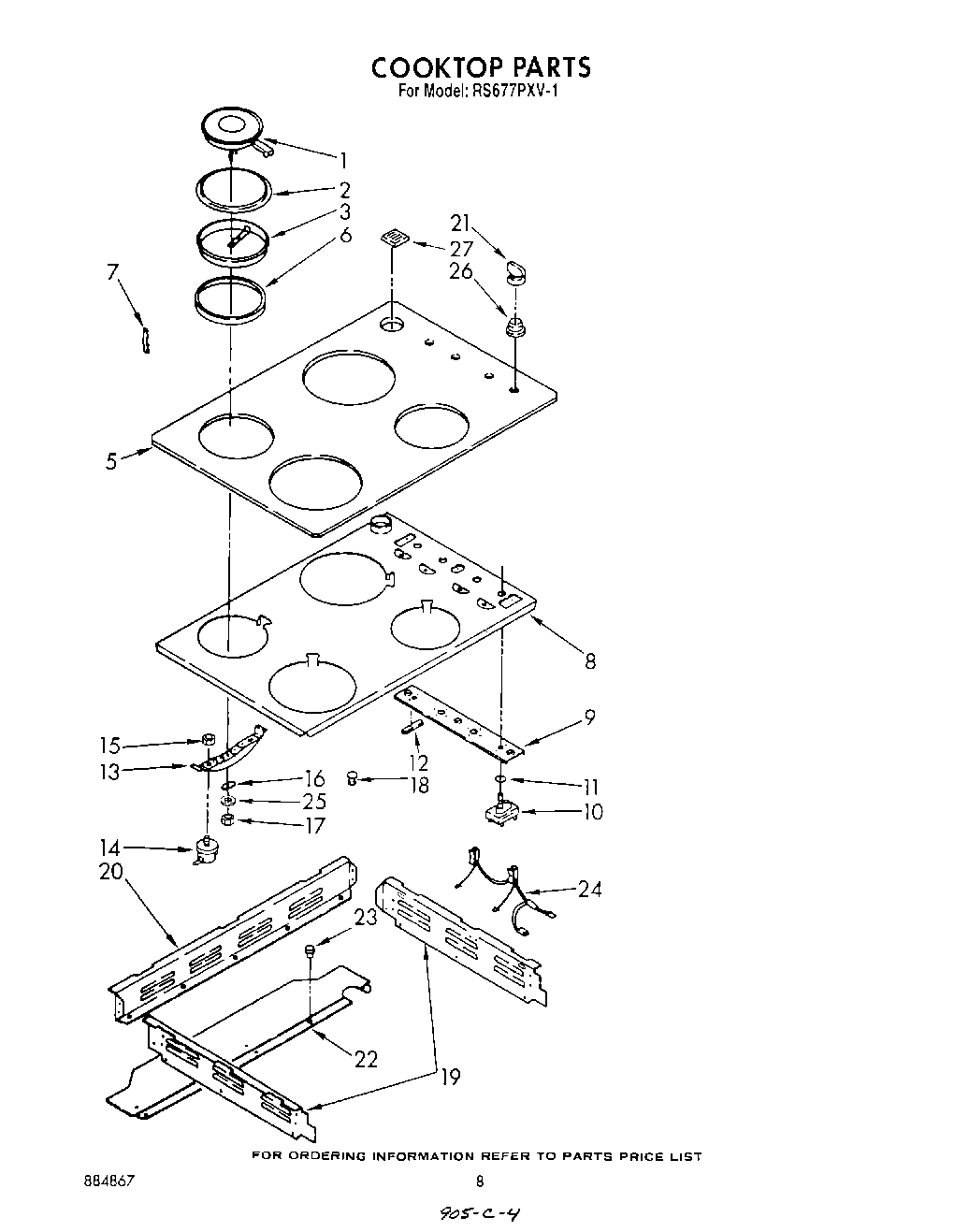

| 1 | WP3147132 Whirlpool Surface Element |
| 1 | WP3147131 Whirlpool Surface Element |
| 2 | ring, intermediate (2) (8``) |
| 2 | Ring, Intermediate (2) (6``) |
| 3 | gasket, ring (2.0 KW) |
| 3 | gasket, ring (1.5 KW) |
| 5 | Glass, Top |
| 6 | 8`` Seal (2) |
| 6 | 6`` Seal (2) |
| 7 | Seal, Hook |
| 8 | Plate, Backup |
| 9 | Bracket, Switch |
| 9 | Screw, |
| 10 | Switch, Inifinite (Front Burner (Green Shaft)) |
| 10 | Switch, Infinite (Use W/1400W Left Rear Burner) |
| 11 | WP486579 Whirlpool Air Conditioner Screw |
| 11 | Seal, Shaft (4) |
| 12 | Tape, Foam |
| 13 | bracket, element (1.5 KW) |
| 13 | bracket, element (2.0 KW) |
| 14 | Thermostat (2) |
| 15 | Nut, Metric |
| 16 | Spring, Leaf |
| 17 | hex nut (8) |
| 18 | Lens, Red (2) |
| 19 | Rail, Support (L.H.) |
| 19 | Rail, Support (R.H.) |
| 20 | Rail, Back, Support (2) |
| 21 | Knob, Control (4) |
| 22 | Cover, Top Rear |
| 22 | WP488729 Whirlpool Refrigerator Door Screw |
| 23 | WPL 258109 |
| 24 | Light, Indicator |
| 25 | Washer, Flat (4) |
| 26 | Seal, Infinate Switch (4) |
| 27 | Cover, Vent |
