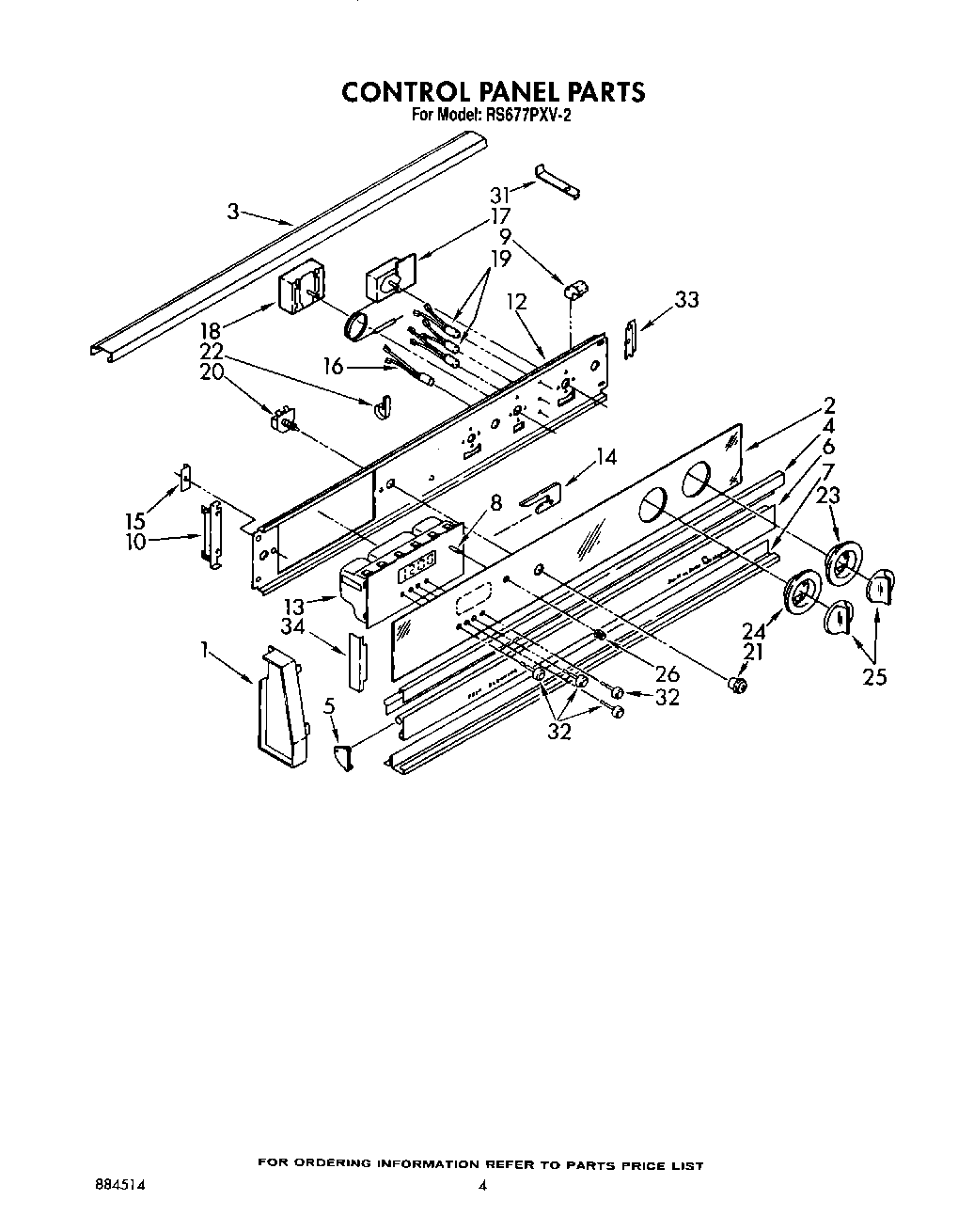

RS677PXV2 03 – CONTROL PANEL

Products

Position	Product
1	End Cap (R.H.)
1	End Cap (L.H.)
2	Glass, Panel
3	Rail, Top
4	Trim, Center (Black)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
7	Trim, Bottom
7	Screw, 10-32 x 1/2
8	Shaft, Bit Generator
9	Retainer, Glass (4)
10	Bracket, Control (2)
12	Bracket, Control
13	Timer, Digital (Includes Knobs)
14	Shield, Air
15	Bracket, Timer (2)
16	Light, Indicator Standard Clean
17	screw, 6-32 x 1/4 (2)
17	Thermostat, Oven
18	WP486579 Whirlpool Air Conditioner Screw
18	Selector Switch
19	Indicator Light (4)
20	Lockwasher
20	Switch, Oven Light
21	Bezel Switch (1)
22	Screw (2)
22	WP308605 Whirlpool Refrigerator Clamp
23	Escutcheon, Thermostat
24	Screw,
24	WP311068 Whirlpool Dial Knob Black
25	WP3150371 Whirlpool Control Knob
26	WP965173 Whirlpool Dishwasher Screw
26	Knob, Bit Generator (Black)
31	Support, Rail
32	WPL 313958
33	Bracket (2)
34	Trim, End Cap (Black)
