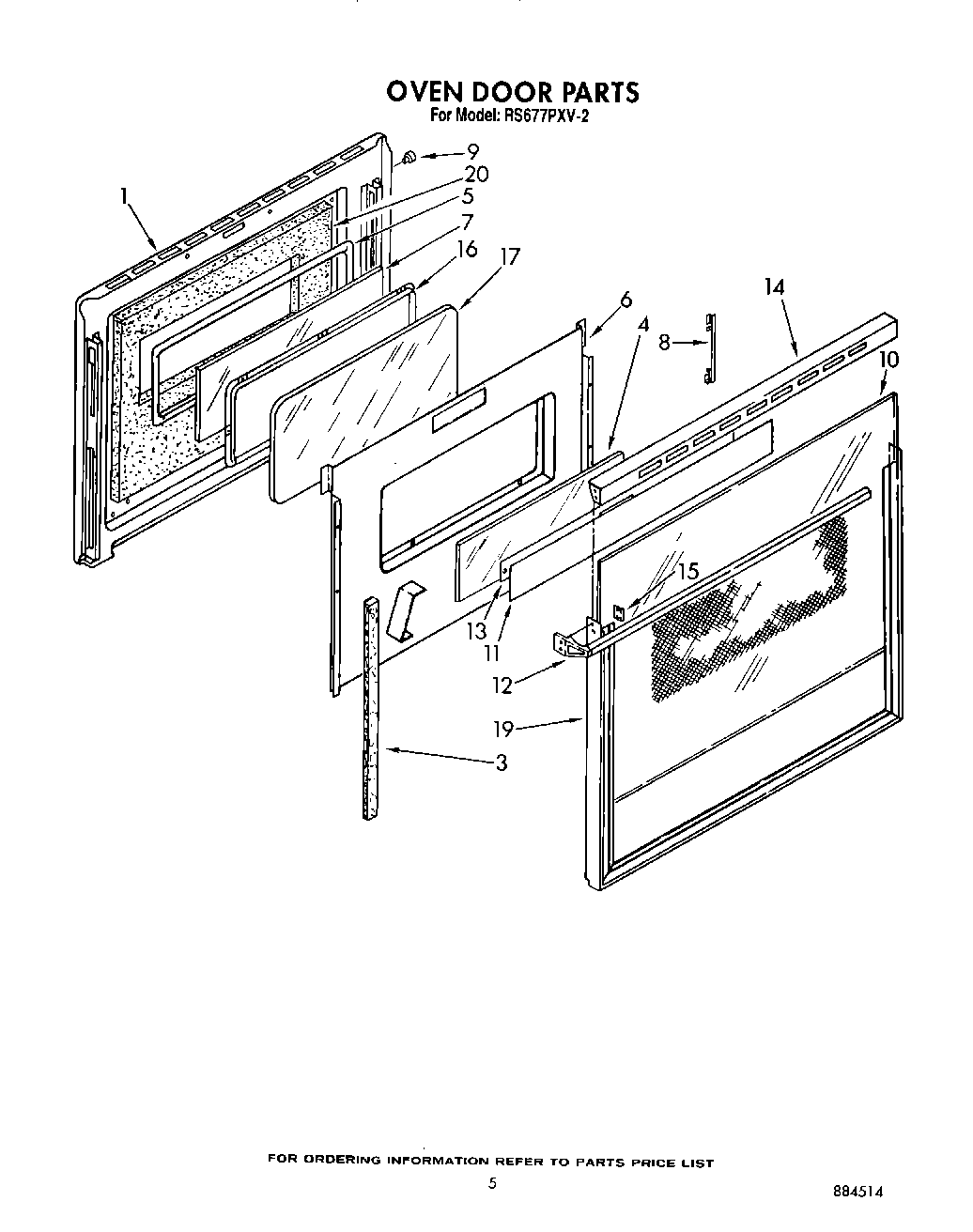

RS677PXV2 04 – OVEN DOOR

Products

PositionProduct
1Liner, Door
3Seal, Flange (2)
4Glass, Reflective
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
9Bumper (4)
10Glass, Panel (Black Model)
11Foil, Door
12WP355515 Whirlpool Screw
12Handle, Oven Door
13Sheild, Door
13Screw,
14Screw, 10A x 1/2 (2) (Black)
14Top, Door (Black Model)
15Clip, Mtg (2)
16Frame, Inner
16Screw
19Frame, Door
20Insulation, Door
20Back Splash (Screw (4) 10AB x 1/2“)
