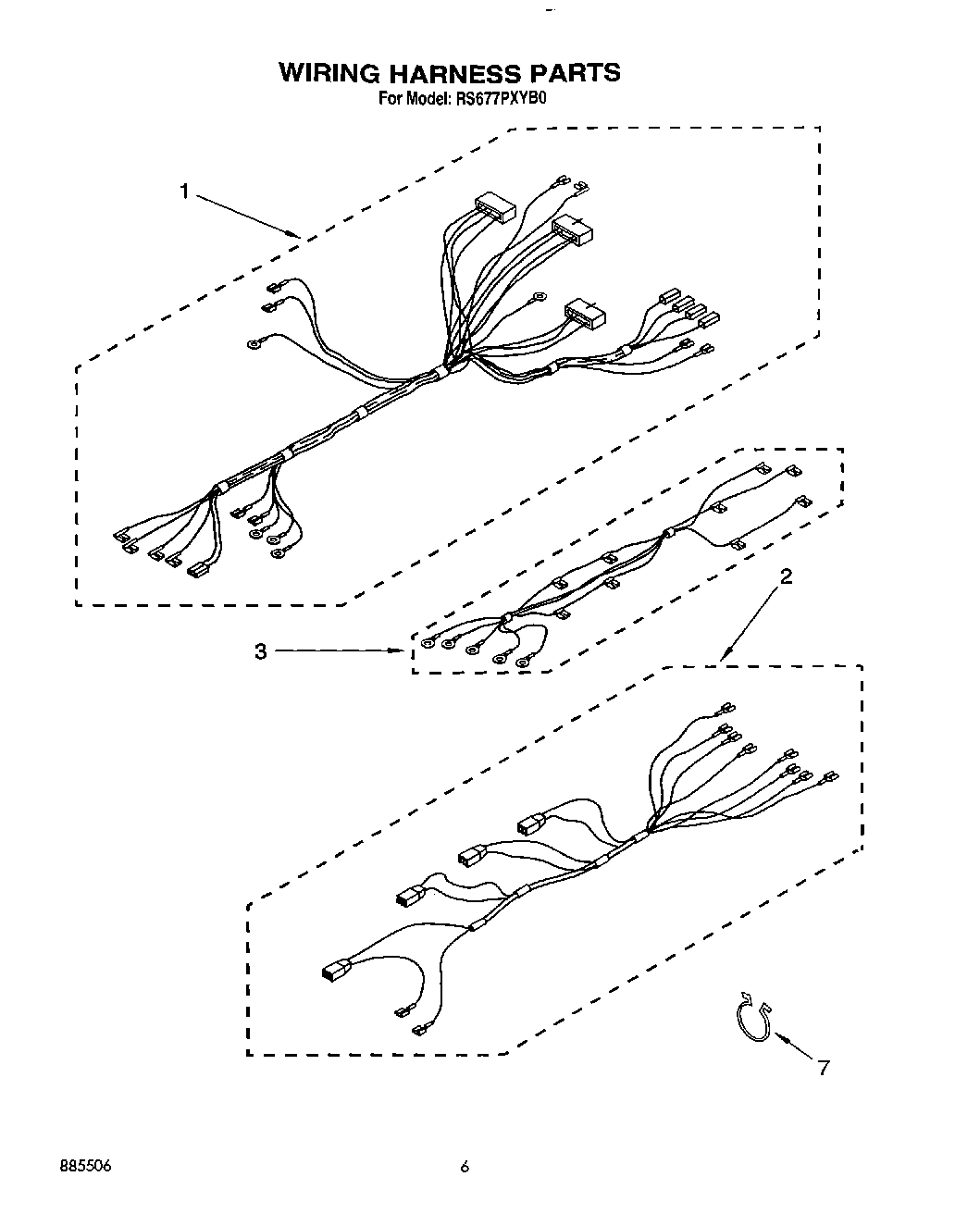

RS677PXYB0 05 – WIRING HARNESS, LIT/OPTIONAL

Products

Position	Product
	FOIL, ALUMINUM OVEN (18“ X 25 )
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	8212471 Whirlpool Oven Paint
	Grease
	WPL 3171507
	Hardware, Mounting
	Installation Instructions
	WPL LIT3182756
	WPL LIT3183769
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	WA906B Whirlpool Cooktop Glass Scraper
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	Repair Parts List
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
1	Harness, Wire (Main)
2	harness, wire (surface unit)
3	Harness, Wire (Infinite Switch)
7	16515 Whirlpool Clip
7	Screw, 10A x 1/2 (2) (Black)
7	Screw (2)
