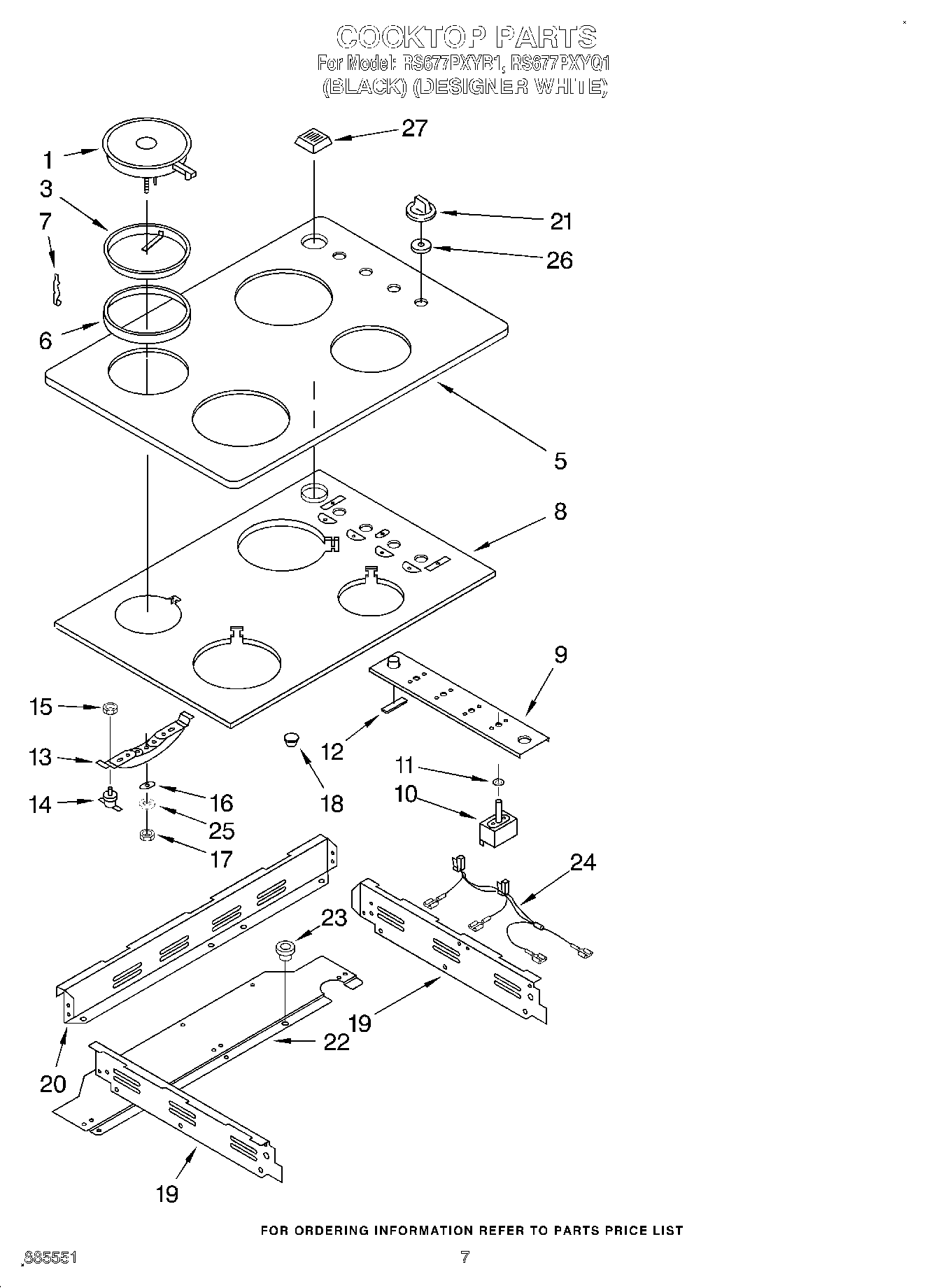

RS677PXYB1 05 – COOKTOPS

Products

Position	Product
1	8203517 Whirlpool Oven Surface Element
1	Unit, Surface (8“ (2))
3	gasket, ring (1.5 KW)
3	gasket, ring (2.0 KW)
5	Glass, Top (Black)
5	Glass, Top (White)
6	8“ Seal (2)
6	6“ Seal (2)
7	Seal, Hook
8	Plate, Backup
9	Screw,
9	Bracket, Switch
10	Switch, Infinite (Use W/1400W Left Rear Burner)
10	Switch, Inifinite (Front Burner (Green Shaft))
11	WP486579 Whirlpool Air Conditioner Screw
11	Seal, Switch Shaft (2)
12	Tape, Foam
13	bracket, element (1.5 KW)
13	bracket, element (2.0 KW)
14	Thermostat (2)
15	Nut, Metric
16	Spring, Leaf
17	hex nut (8)
18	Lens, Red (2)
19	Rail, Support (R.H.)
19	Rail, Support (L.H.)
19	SCREW
20	Rail, Back, Support (2)
20	WP488729 Whirlpool Refrigerator Door Screw
21	Knob, Control (4)
21	WP3183119 Whirlpool Knob Assembly
22	Cover, Top Rear
23	WPL 258109
24	Light, Indicator
25	Washer, Flat (4)
26	Seal, Inifinite Switch
27	Cover, Vent (Black)
27	Cover, Vent (White)
