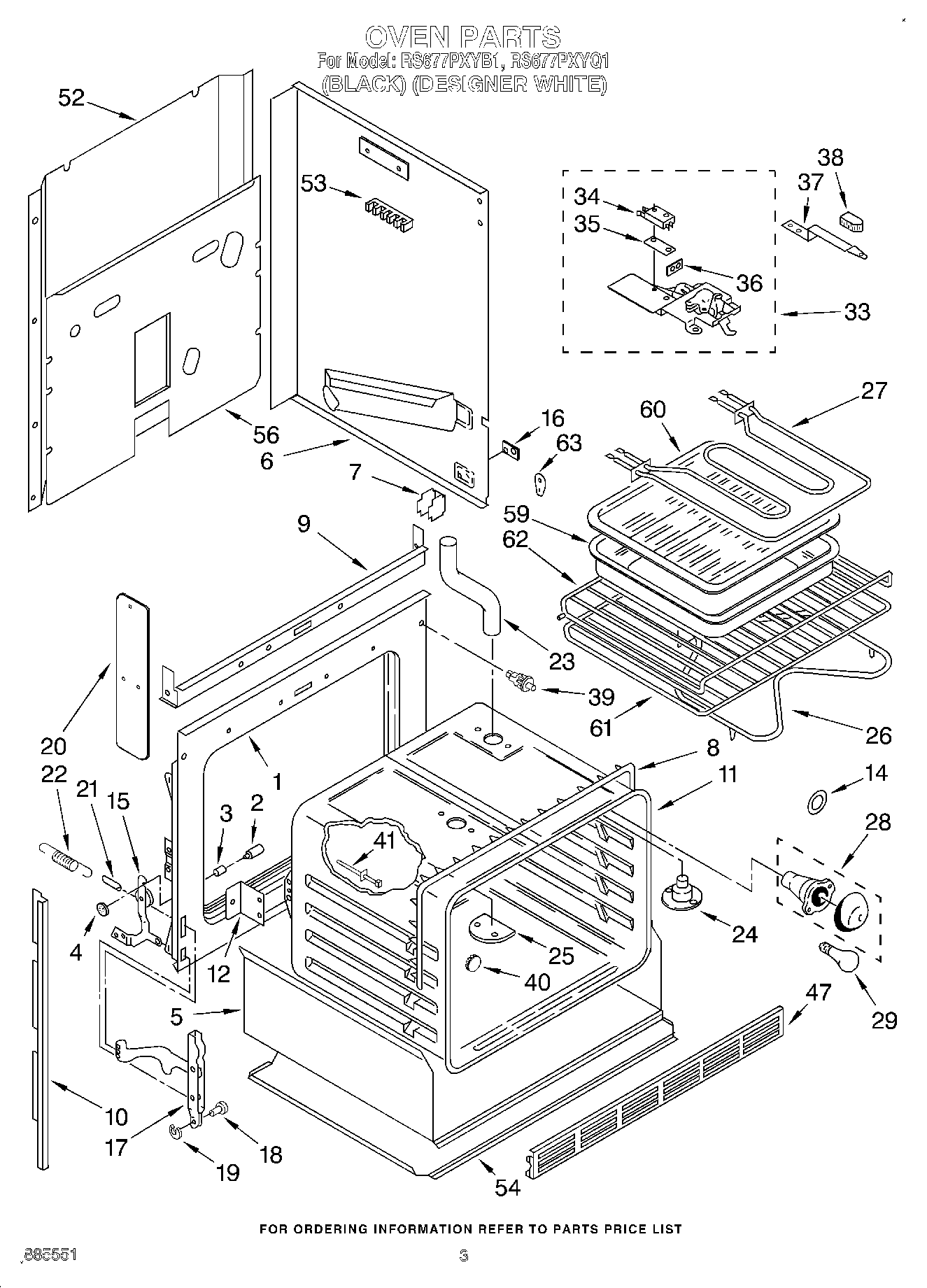

RS677PXYQ1 03 – OVEN, LIT/OPTIONAL

Products

Position	Product
	Installation Instructions
	WPL LIT885551
	WPL LIT3183769
	WPL LIT3182756
	Brochure
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	WPL 3185197
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven 30“
12	WP489069 Whirlpool Compactor Screw
12	Bracket, Oven Mounting (2)
14	WP3184533 Whirlpool Range Light Lens Gasket
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Baffle, Insulation
20	Screw (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
23	SCREW
24	Screw (2)
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	Screw (2)
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
33	Screw (3)
33	Latch Assembly
34	Safety Switch
34	Screw
35	Insulator, Switch
36	Screw
36	Shield, Latch
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw
39	Switch, Door
40	Button, Plug
41	Sensor, Heat
47	Grill, Bottom
47	Bottom Grill (White)
47	Grill, Bottom (Screw (3))
52	Cover, Rear
53	WP112432 Whirlpool Nut Assembly
53	Screw (10-12 x .875)
53	WP8203546 Whirlpool Terminal Block
54	WPL 310458
56	Panel, Back
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WP488729 Whirlpool Refrigerator Door Screw
63	WPL 310433
63	WPL 3183005
63	WPL 3149328
63	WPL 310435
