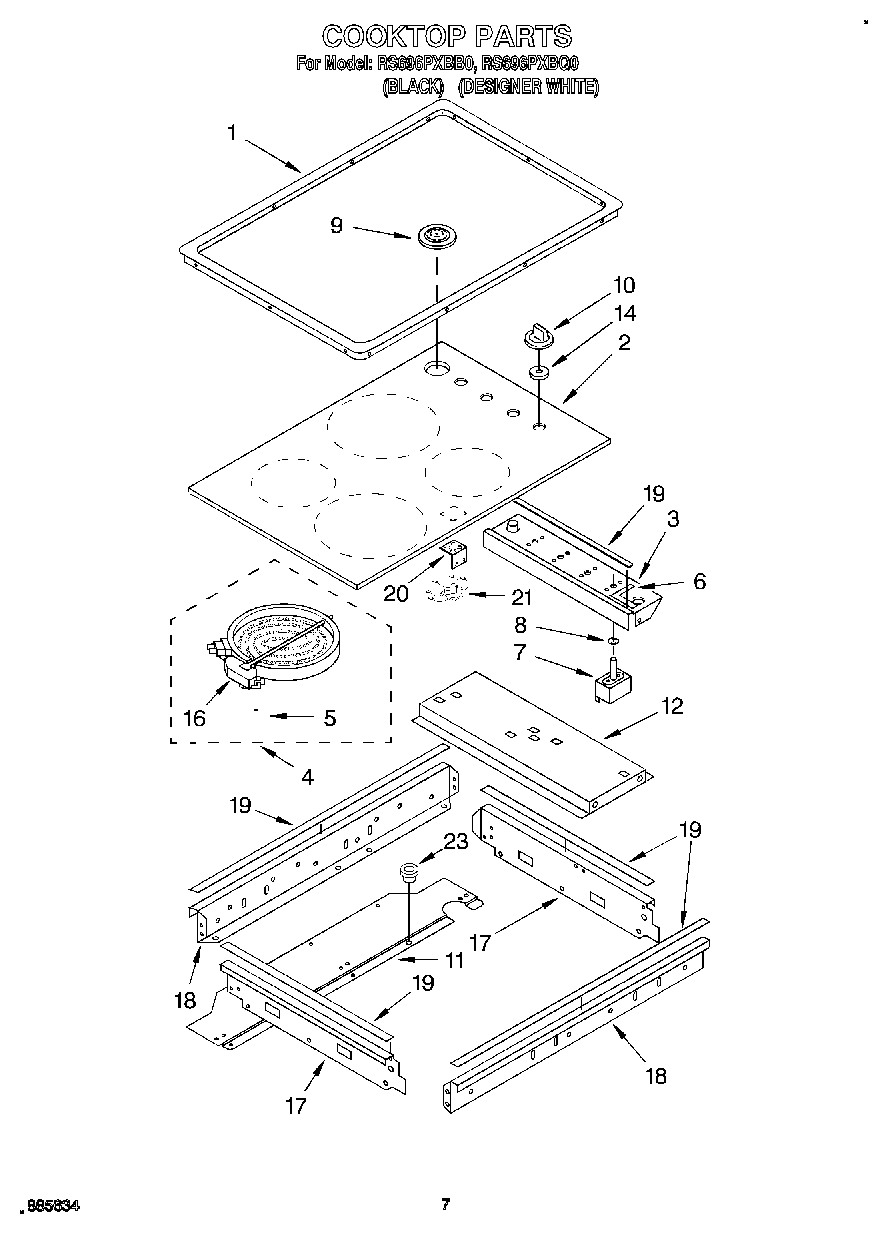

RS696PXBB0 05 – COOKTOP

Products

Position	Product
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (White)
1	Vent, Lower Trim (Screw (2))
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
3	Bracket, Switch Mounting
4	Element, Surface (2100W Right Rear)
4	Element, Surface (1400W Left Rear)
4	Element, Surface (1700W Right Front)
4	WP8185663 Whirlpool Surface Element
5	WP486754 Whirlpool Compactor Screw
5	Spring, Locator
6	Seal, Cooktop
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	W10900107 Whirlpool Oven Surface Element Switch
7	Switch, Inifinite (Rear Burner (Orange Shaft))
7	Switch, Inifinite (Front Burner (Green Shaft))
8	Seal, Switch Shaft (2)
8	Screw, 8-32 x 3/16 (2)
9	Cover, Vent (Black)
9	Cover, Vent (White)
10	WP3183119 Whirlpool Knob Assembly
10	Knob, Control (4)
11	Cover, Top Rear
12	Support, Element
14	Seal, Inifinite Switch
16	Limiter, Temp. (2400W – LF)
16	Limiter, Temp. (2100W, LF-RR)
16	Switch, Limit (Use W/3183584 Element)
16	Switch, Limit (Use W/3183200 Element)
17	Rail, Side (Left H
17	Rail, Side (Right Hand)
18	WPL 3181646
18	WPL 3183380
19	Seal, Silicone (Sides (2))
19	Seal, Silicone (Front & Back (2))
20	WPL 3150321
20	WP488729 Whirlpool Refrigerator Door Screw
21	WPL 3150304
23	WPL 258109
