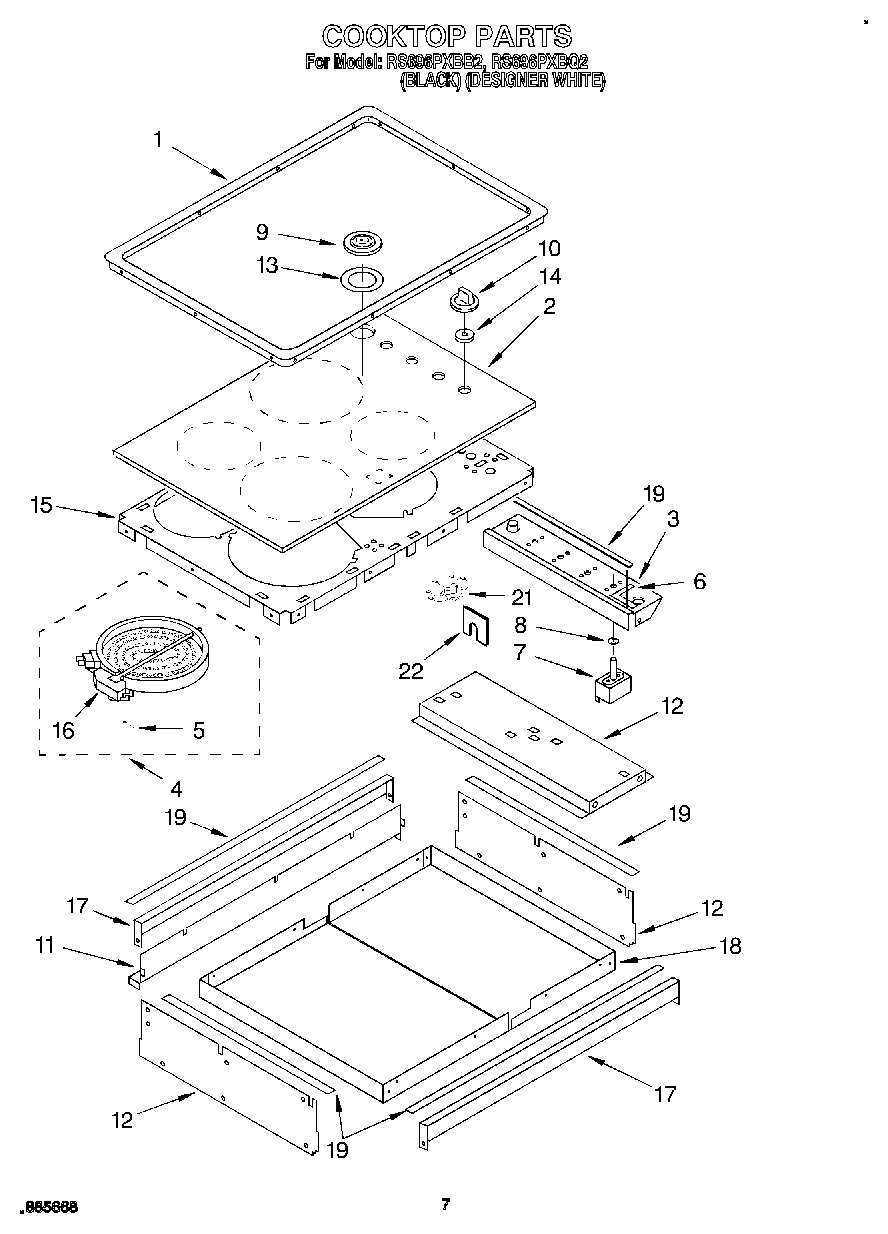

RS696PXBB2 05 – COOKTOP

Products

Position	Product
1	Trim Ring, Cooktop (White)
1	Trim Ring, Cooktop (Black)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
3	Bracket, Switch Mounting
4	WP8185663 Whirlpool Surface Element
4	Element, Surface (1400W Left Rear)
4	Element, Surface (1700W Right Front)
4	Element, Surface (2100W Right Rear)
5	Spring Locator (8)
5	WP486754 Whirlpool Compactor Screw
6	Seal, Cooktop
7	W10900107 Whirlpool Oven Surface Element Switch
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	Switch, Inifinite (Front Burner (Green Shaft))
7	Switch, Inifinite (Rear Burner (Orange Shaft))
8	Seal, Switch Shaft (2)
8	WP486579 Whirlpool Air Conditioner Screw
9	Cover, Vent (Black)
9	Cover, Vent (White)
10	Knob, Control (4)
10	WP3183119 Whirlpool Knob Assembly
11	Cover, Rear
12	Plate, Mounting
13	Seal, Vent Tube
14	Seal, Inifinite Switch
15	Backer, Plate
16	Limiter, Temperature (Use W/3184959 Element)
16	Switch, Limiter (Use W/4454440 Element)
16	Switch, Limit (Use W/3184954 Element)
16	Switch, Limiter (Use W/4454439 Element)
17	Bracket, Support
17	Vent, Lower Trim (Screw (2))
18	Shield, Heat
18	Screw
19	Seal, Silicone (Sides (2))
19	Seal, Silicone (Front & Back (2))
21	WPL 3150304
22	Grommet, Wire Way
