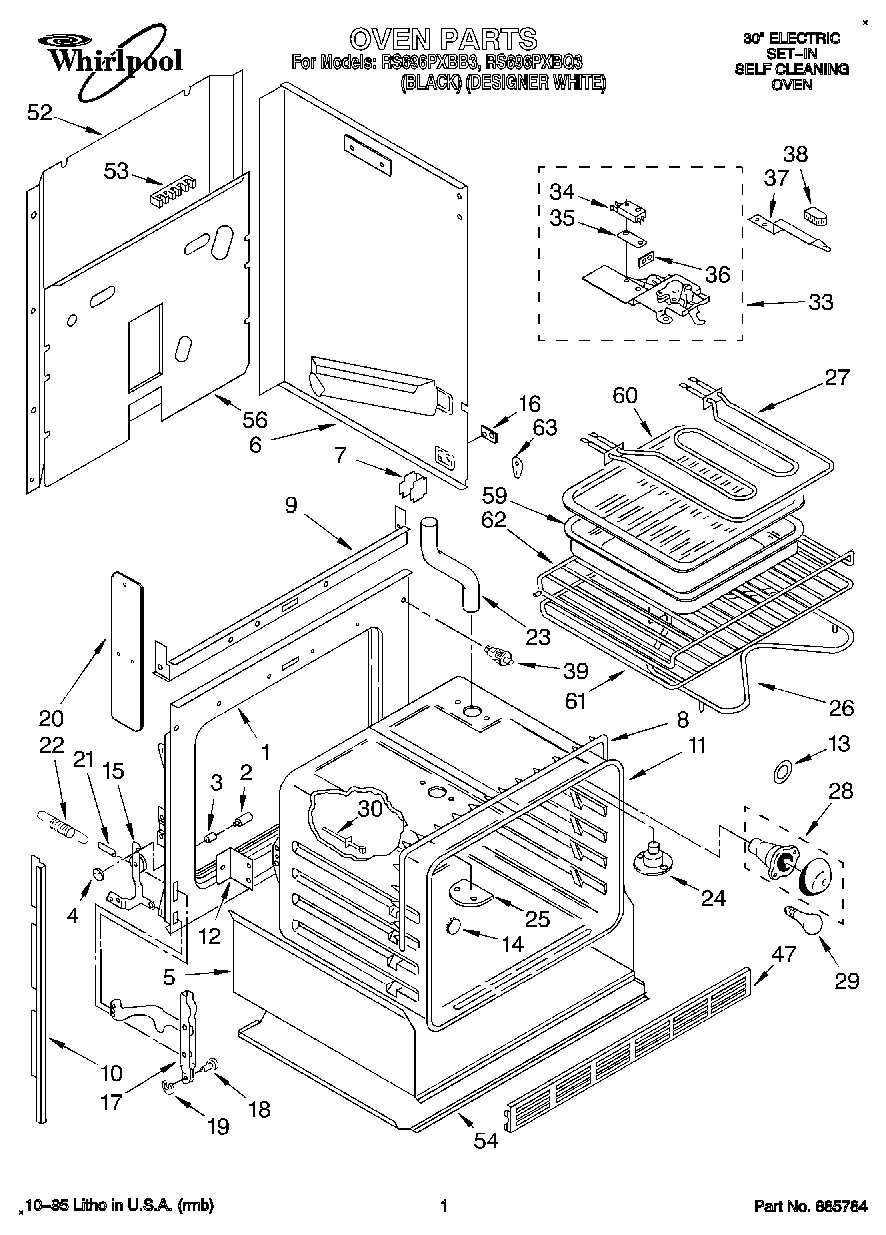

| 1 | Frame Front |
| 2 | Pin, Hinge Ear (2) |
| 3 | Snubber, Door (2) |
| 4 | Pushnut (2) |
| 5 | Insulation Tray |
| 6 | Side Wrapper R.H. |
| 6 | Side Wrapper L.H. |
| 7 | Support, Side Wrapper (4) |
| 8 | WPL 3185197 |
| 9 | Baffle, Top Insulation |
| 10 | Side Trim (Left Side) |
| 10 | Side Trim (Right Side) |
| 11 | Oven 30`` |
| 12 | Bracket, Oven Mounting (2) |
| 13 | WP3184533 Whirlpool Range Light Lens Gasket |
| 14 | WPL 3185086 |
| 14 | Button, Plug |
| 15 | Hinge, Ear (Right Side) |
| 15 | Hinge, Ear (Left Side) |
| 16 | Plate, Side Panel (2) |
| 16 | WP308544 Whirlpool Screw |
| 17 | Channel Arm (2) |
| 18 | WP307986 Whirlpool Hinge Pin |
| 19 | Retainer Ring (2) |
| 20 | Baffle, Insulation |
| 20 | Screw (2) |
| 21 | Anchor, Spring (2) |
| 22 | WP308126 Whirlpool Door Spring |
| 23 | Tube, Vent |
| 24 | Tube, Vent |
| 25 | WPL 310662 |
| 26 | ELMNT-BAKE |
| 27 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 27 | Screw (2) |
| 28 | W11594027 Whirlpool Range Oven Light Socket |
| 29 | RANGE ONLY 40W 120V APPL BULB |
| 30 | Sensor, Heat |
| 33 | Screw (3) |
| 33 | Latch Assembly |
| 34 | Safety Switch |
| 34 | Screw |
| 35 | Insulator, Switch |
| 36 | Screw |
| 36 | Shield, Latch |
| 37 | Latch, Handle |
| 37 | Screw |
| 38 | Knob, Latch Handle |
| 38 | Screw |
| 39 | Switch, Door |
| 47 | Grill, Bottom (White) |
| 47 | WP313808 Whirlpool Screw |
| 47 | Grill, Bottom (Black) |
| 52 | Cover, Rear |
| 53 | WP112432 Whirlpool Nut Assembly |
| 53 | WP8203546 Whirlpool Terminal Block |
| 53 | Screw (10-12 x .875) |
| 54 | Cover, Bottom |
| 56 | Panel, Back |
| 60 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 61 | Rack, Straight |
| 62 | Rack, Offset |
| 63 | WPL 4454421 |
| 63 | WPL 3149328 |
| 63 | WP488729 Whirlpool Refrigerator Door Screw |
| 63 | WPL 3183005 |
