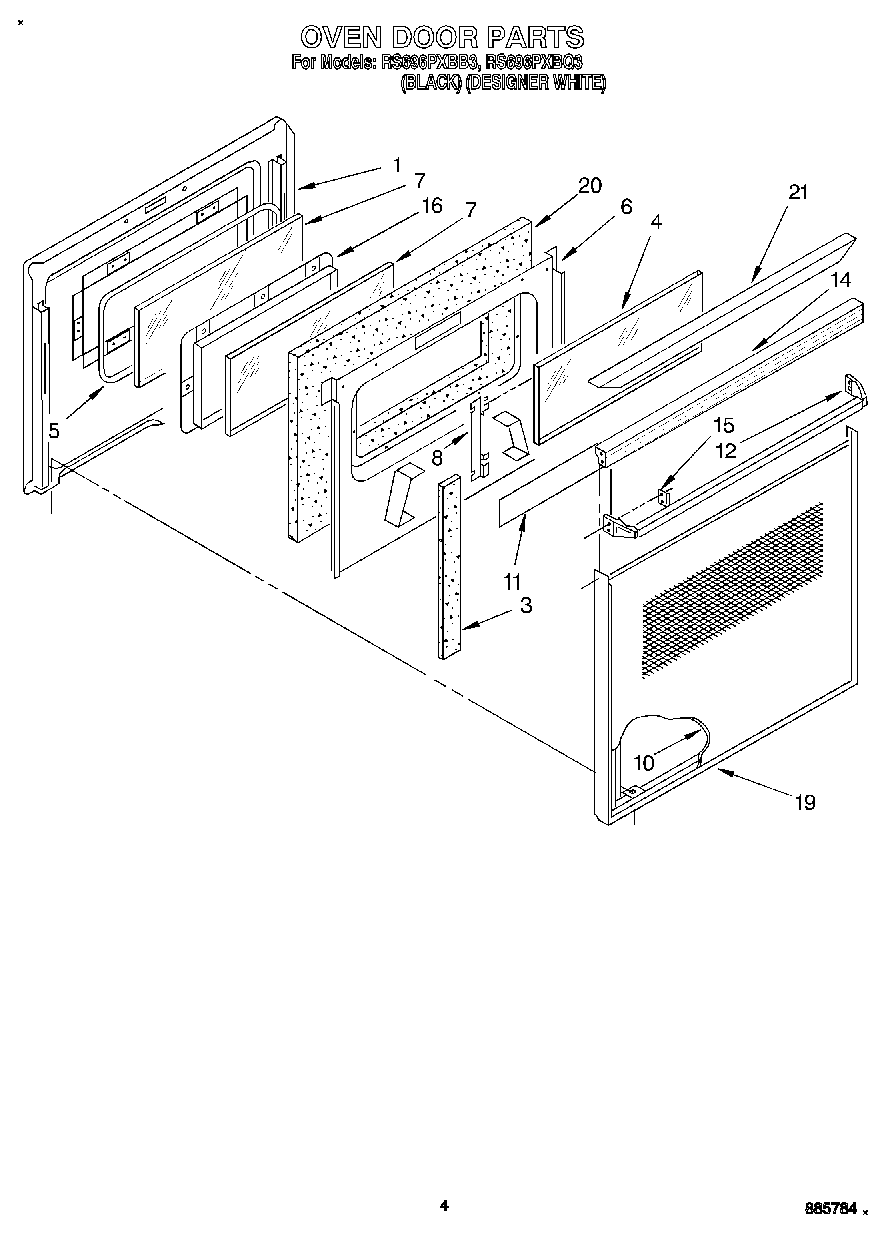

RS696PXBB3 03 – OVEN DOOR

Products

PositionProduct
1Liner, Door
3Seal, Flange (2)
4Glass, Clear
5Seal, Door
6Screw
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
10Glass, Panel (White Model)
10Glass, Panel (Black)
11Foil, Door
12Handle, Door (Black)
12Handle, Door (Platinum)
14Top, Door (White Model)
14Top, Door (Black Model)
15Clip, Mtg (2)
15Back Splash (Screw (4) 10AB x 1/2“)
16Frame, Inner
16Screw
19Frame, Door
20Insulation, Door
21Cap, Top
21WP355515 Whirlpool Screw
