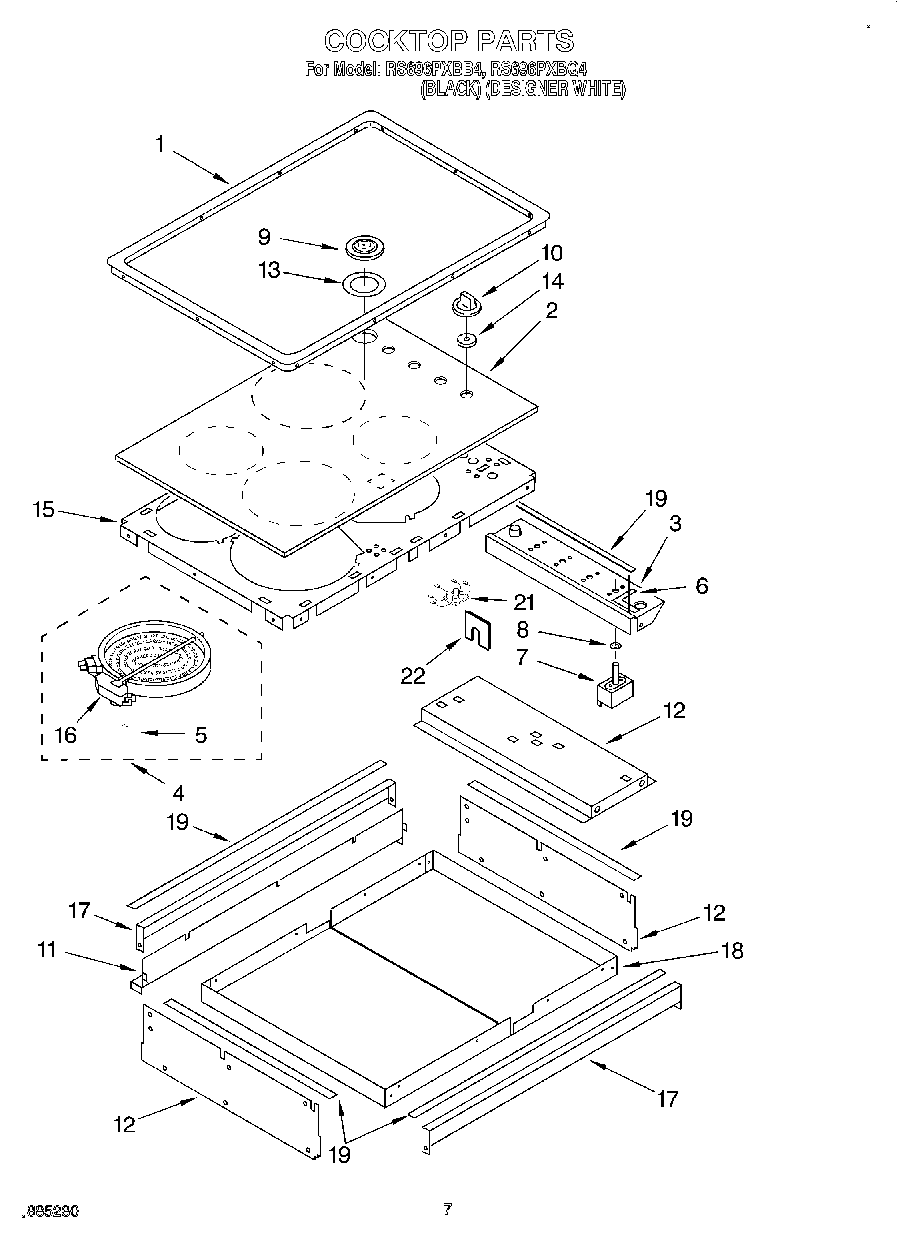

RS696PXBB4 05 – COOKTOP

Products

Position	Product
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (White)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
3	Bracket, Switch Mounting
4	Element, Surface (8“ R.R. 2100W)
4	Element, Surface (7“ R.F. 1700W)
4	Element, Surface (6“ L.R. 1400W)
4	Element, Surface (9“ L.F. 2400W)
5	Spring, Locator (8)
5	WP486754 Whirlpool Compactor Screw
6	Seal, Cooktop
7	Switch, Infinite (Use W/2400W Left Front Burner)
7	Switch, Infinite (Use W/1700W Right Front & 2100W Right Rear Burner)
7	Switch, Infinite (Use W/1400W Left Rear Burner)
8	Seal, Switch Shaft (2)
8	WP486579 Whirlpool Air Conditioner Screw
9	Cover, Vent (White)
9	Cover, Vent (Black)
10	WP3183119 Whirlpool Knob Assembly
10	Knob, Control (4)
11	Cover, Rear
12	Plate, Mounting
13	Seal, Vent Tube
14	Seal, Inifinite Switch
15	Plate, Backer
16	Limiter, Temp. (1400 W – LR)
16	Limiter, Temp. (2400 W – LF)
16	Limiter, Temp (1700W – RF)
16	Limiter, Temp (2100W – RR)
17	Bracket, Support
17	Vent, Lower Trim (Screw (2))
18	Screw
18	Shield, Heat
19	Seal, Silicone (Sides (2))
19	Seal, Silicone (Front & Back (2))
21	Light, Indicator
22	Grommet
