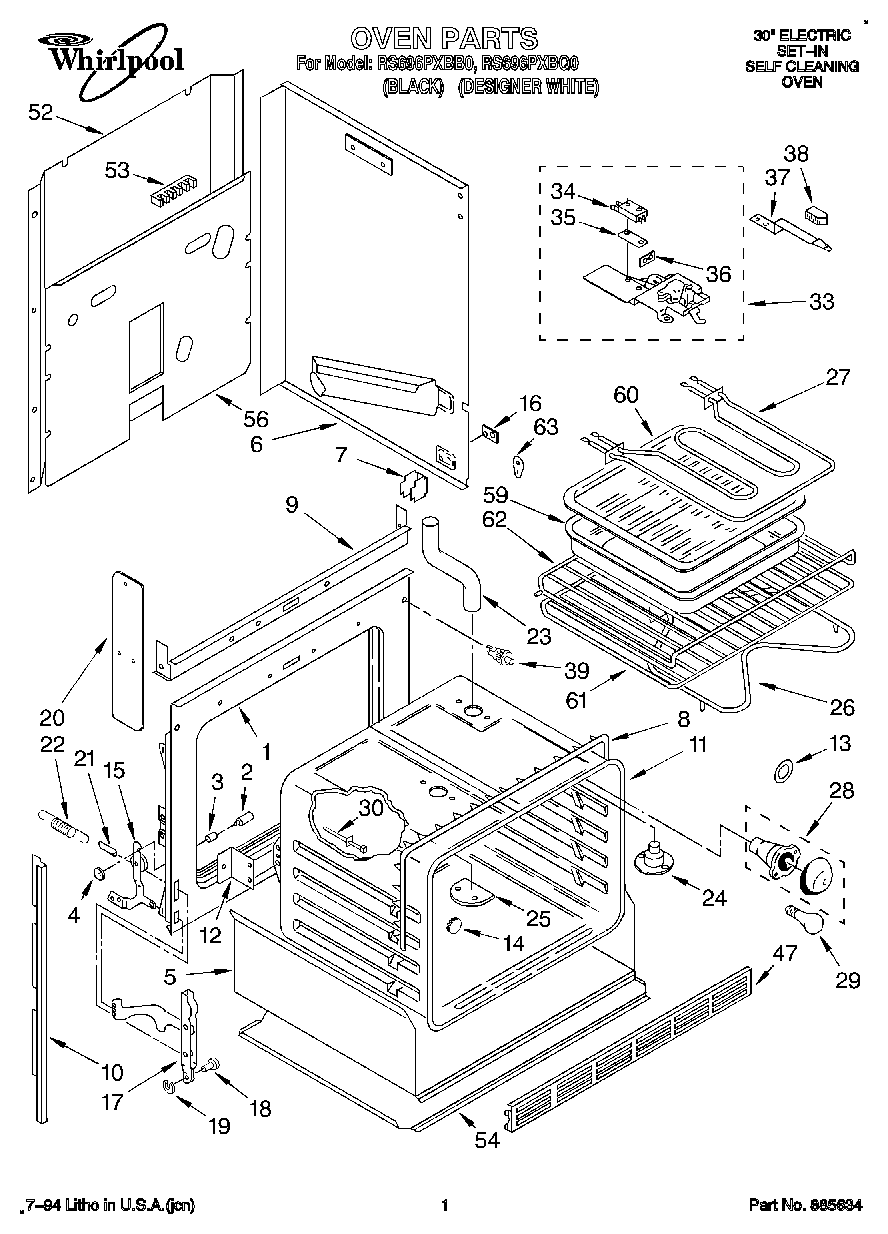

RS696PXBQ0 01 – OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper L.H.
6	Side Wrapper R.H.
7	Support, Side Wrapper (4)
8	WPL 3185197
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven 30“
12	Bracket, Oven Mounting (2)
13	WP3184533 Whirlpool Range Light Lens Gasket
14	Button, Plug
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Baffle, Insulation
20	Screw (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	Screw (2)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Sensor, Heat
33	Screw (3)
33	Latch Assembly
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Screw
38	Knob, Latch Handle
39	Switch, Door
47	Bottom Grill (White)
47	Grill, Bottom
47	WP313808 Whirlpool Screw
52	Cover, Rear
53	WP8203546 Whirlpool Terminal Block
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
54	Cover, Bottom
56	Panel, Back
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Rack, Straight
62	Rack, Offset
63	WPL 310433
63	WPL 3149328
63	WPL 310435
63	WP488729 Whirlpool Refrigerator Door Screw
63	WPL 3183005
