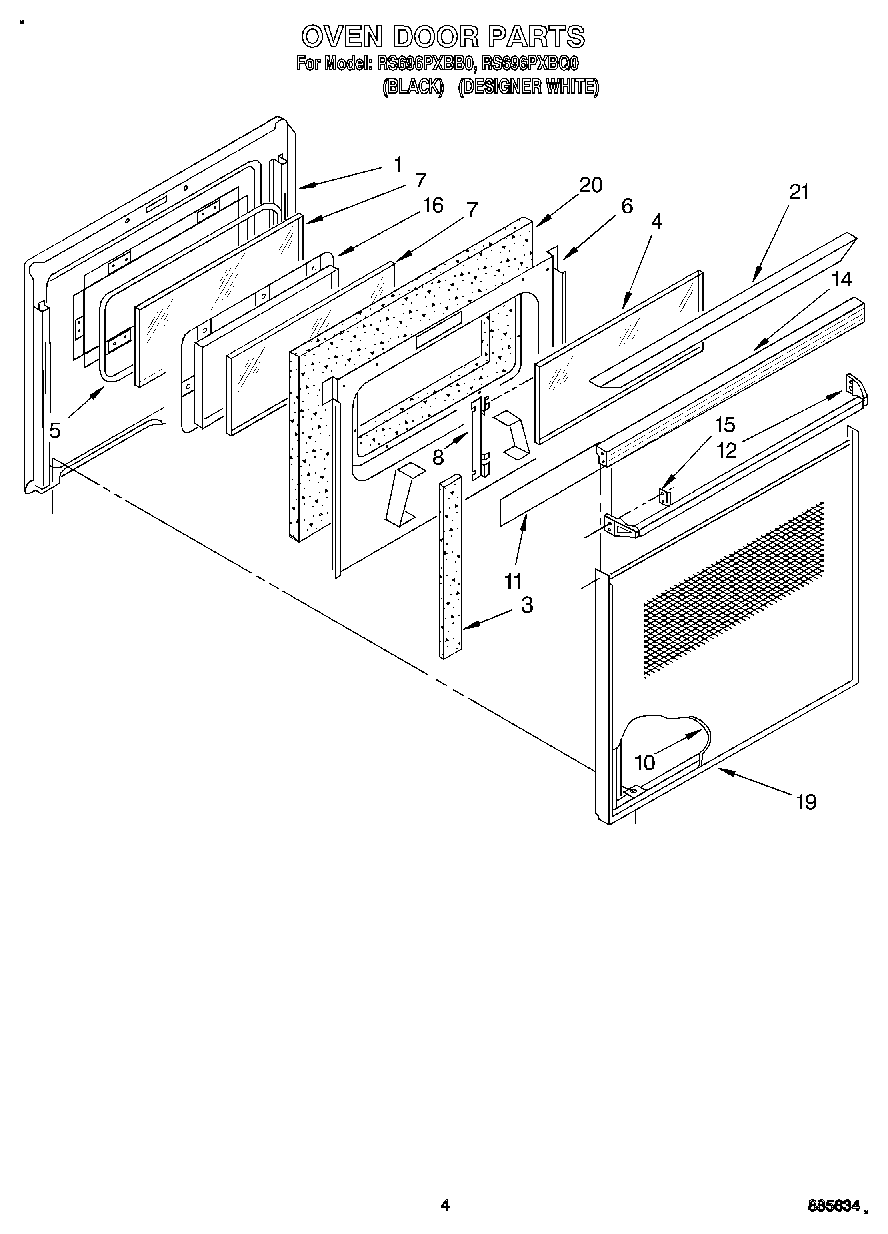

RS696PXBQ0 03 – OVEN DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (Black)
10	Glass, Panel (White Model)
11	Foil, Door
12	Handle, Door (Black)
12	Handle, Door (Platinum)
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	Back Splash (Screw (4) 10AB x 1/2“)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Insulation, Door
21	Cap, Top
21	WP355515 Whirlpool Screw
