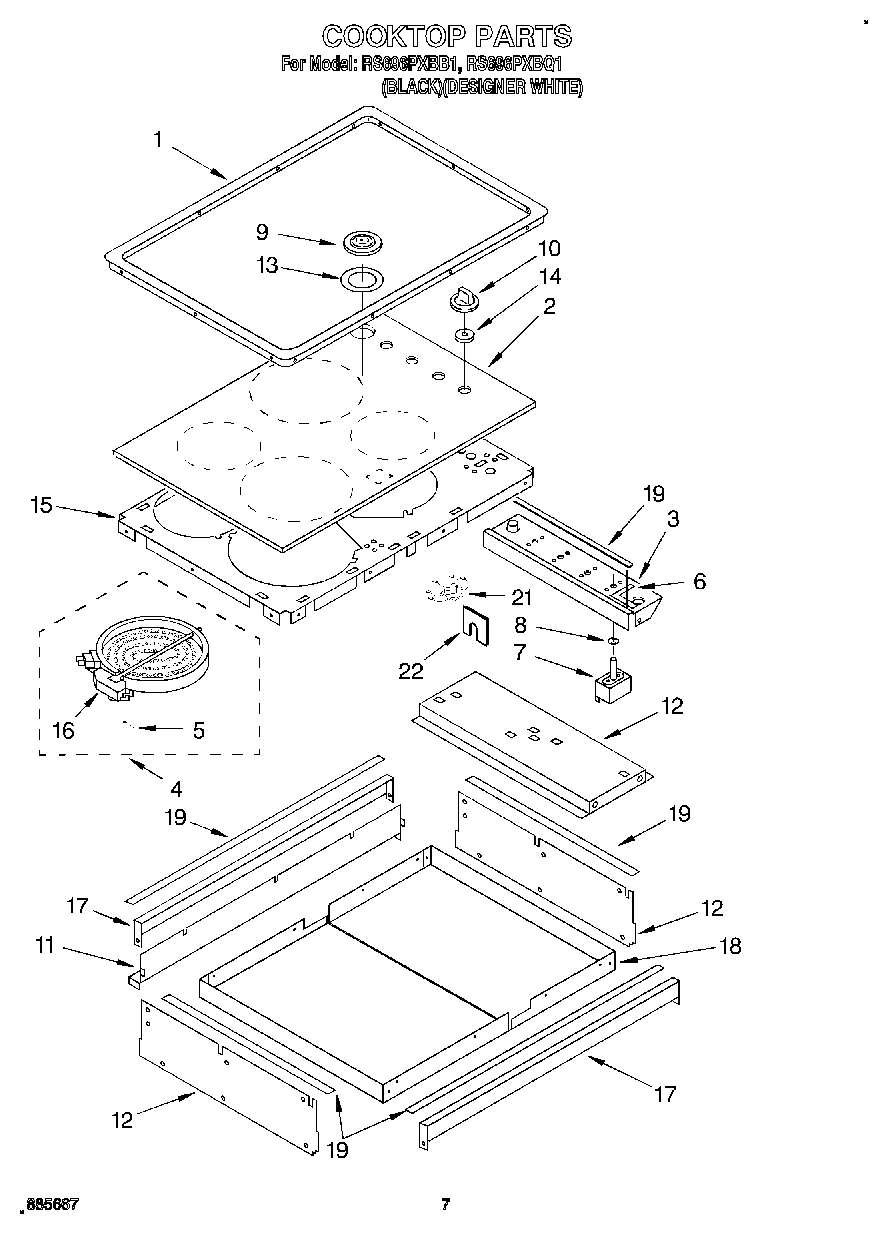

RS696PXBQ1 05 – COOKTOP

Products

PositionProduct
1Trim Ring, Cooktop (White)
1Trim Ring, Cooktop (Black)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
3Bracket, Switch Mounting
4WP8185663 Whirlpool Surface Element
4Element, Surface (1400W Left Rear)
4Element, Surface (1700W Right Front)
4Element, Surface (2100W Right Rear)
5Spring Locator (8)
5WP486754 Whirlpool Compactor Screw
6Seal, Cooktop
7W10900107 Whirlpool Oven Surface Element Switch
7Switch, Infinite (Use W/1400W Left Rear Burner)
7Switch, Inifinite (Front Burner (Green Shaft))
7Switch, Inifinite (Rear Burner (Orange Shaft))
8Seal, Switch Shaft (2)
8WP486579 Whirlpool Air Conditioner Screw
9Cover, Vent (Black)
9Cover, Vent (White)
10Knob, Control (4)
10WP3183119 Whirlpool Knob Assembly
11Cover, Rear
12Plate, Mounting
13Seal, Vent Tube
14Seal, Inifinite Switch
15Backer, Plate
16Limiter, Temperature (Use W/3184959 Element)
16Switch, Limiter (Use W/4454440 Element)
16Switch, Limit (Use W/3184954 Element)
16Switch, Limiter (Use W/4454439 Element)
17Bracket, Support
17Vent, Lower Trim (Screw (2))
18Shield, Heat
18Screw
19Seal, Silicone (Sides (2))
19Seal, Silicone (Front & Back (2))
21WPL 3150304
22Grommet, Wire Way
