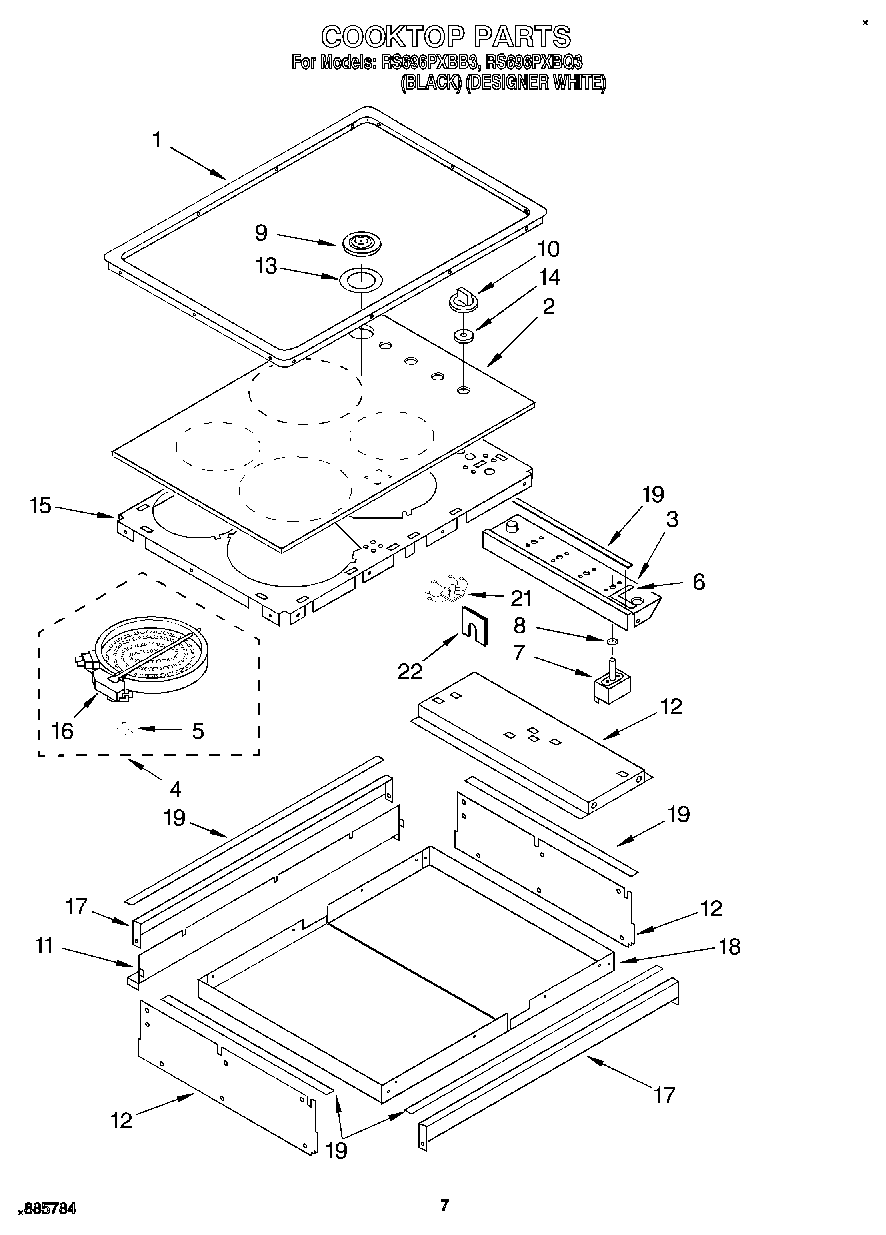

| 1 | Trim Ring, Cooktop (Black) |
| 1 | Trim Ring, Cooktop (White) |
| 2 | Cooktop, Glass (White) |
| 2 | Cooktop, Glass (Black) |
| 3 | Bracket, Switch Mounting |
| 4 | Element, Surface (8`` R.R. 2100W) |
| 4 | Element, Surface (7`` R.F. 1700W) |
| 4 | Element, Surface (6`` L.R. 1400W) |
| 4 | Element, Surface (9`` L.F. 2400W) |
| 5 | WP486754 Whirlpool Compactor Screw |
| 5 | Spring, Locator (8) |
| 6 | Seal, Cooktop |
| 7 | Switch, Infinite (Use W/1400W Left Rear Burner) |
| 7 | W10900107 Whirlpool Oven Surface Element Switch |
| 7 | Switch, Inifinite (Rear Burner (Orange Shaft)) |
| 7 | Switch, Inifinite (Front Burner (Green Shaft)) |
| 8 | Seal, Switch Shaft (2) |
| 8 | WP486579 Whirlpool Air Conditioner Screw |
| 9 | Cover, Vent (White) |
| 9 | Cover, Vent (Black) |
| 10 | WP3183119 Whirlpool Knob Assembly |
| 10 | Knob, Control (4) |
| 11 | Cover, Rear |
| 12 | Plate, Mounting |
| 13 | Seal, Vent Tube |
| 14 | Seal, Inifinite Switch |
| 15 | Plate, Backer |
| 16 | Limiter, Temp. (1400 W - LR) |
| 16 | Limiter, Temp (2100W - RR) |
| 16 | Limiter, Temp (1700W - RF) |
| 16 | Limiter, Temp. (2400 W - LF) |
| 17 | Bracket, Support |
| 17 | Vent, Lower Trim (Screw (2)) |
| 18 | Screw |
| 18 | Shield, Heat |
| 19 | Seal, Silicone (Front & Back (2)) |
| 19 | Seal, Silicone (Sides (2)) |
| 21 | Light, Indicator |
| 22 | Grommet |
