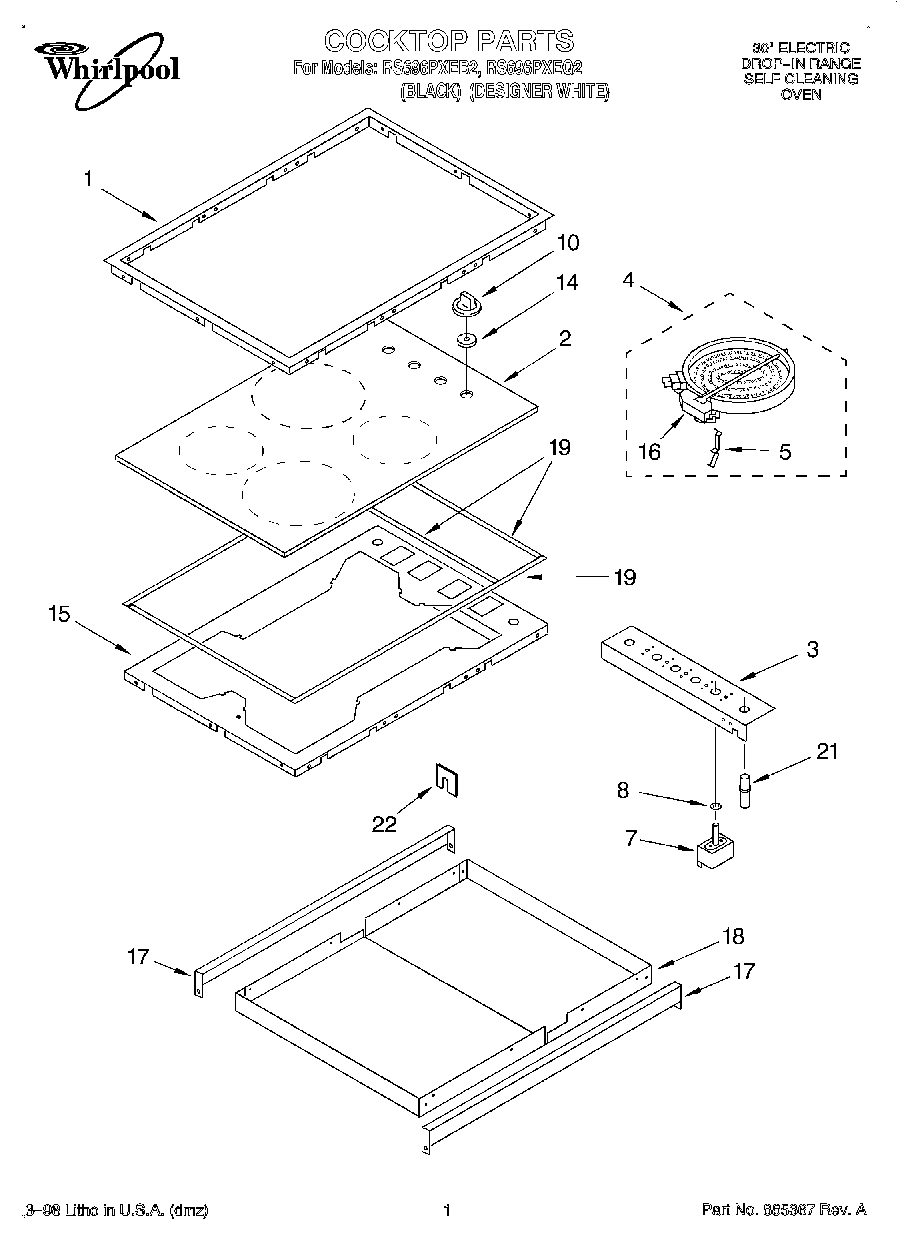

RS696PXEB2 01 – COOKTOP

Products

Position	Product
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (White)
1	Vent, Lower Trim (Screw (2))
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
3	Bracket, Switch Mounting
4	Element, Surface (9“ L.F. 2400W)
4	Element, Surface (6“ L.R. 1400W)
4	Element, Surface (8“ R.R. 2100W)
4	Element, Surface (7“ R.F. 1700W)
5	Spring, Locator (8)
5	WP486754 Whirlpool Compactor Screw
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	Switch, Infinite (Use W/1700W Right Front & 2100W Right Rear Burner)
7	Switch, Infinite (Use W/2400W Left Front Burner)
8	Seal, Switch Shaft (2)
8	WP486579 Whirlpool Air Conditioner Screw
10	WP3183119 Whirlpool Knob Assembly
10	Knob, Control (4)
14	Seal, Inifinite Switch
15	Plate, Backer
16	Limiter, Temp (1700W – RF)
16	Limiter, Temp (2100W – RR)
16	Limiter, Temp. (1400 W – LR)
16	Limiter, Temp. (2400 W – LF)
17	Bracket, Support
18	Shield, Heat
18	Screw
19	Seal, Silicone (Front & Back (2))
19	Seal, Silicone (Sides (2))
21	Light, Indicator
22	Grommet
