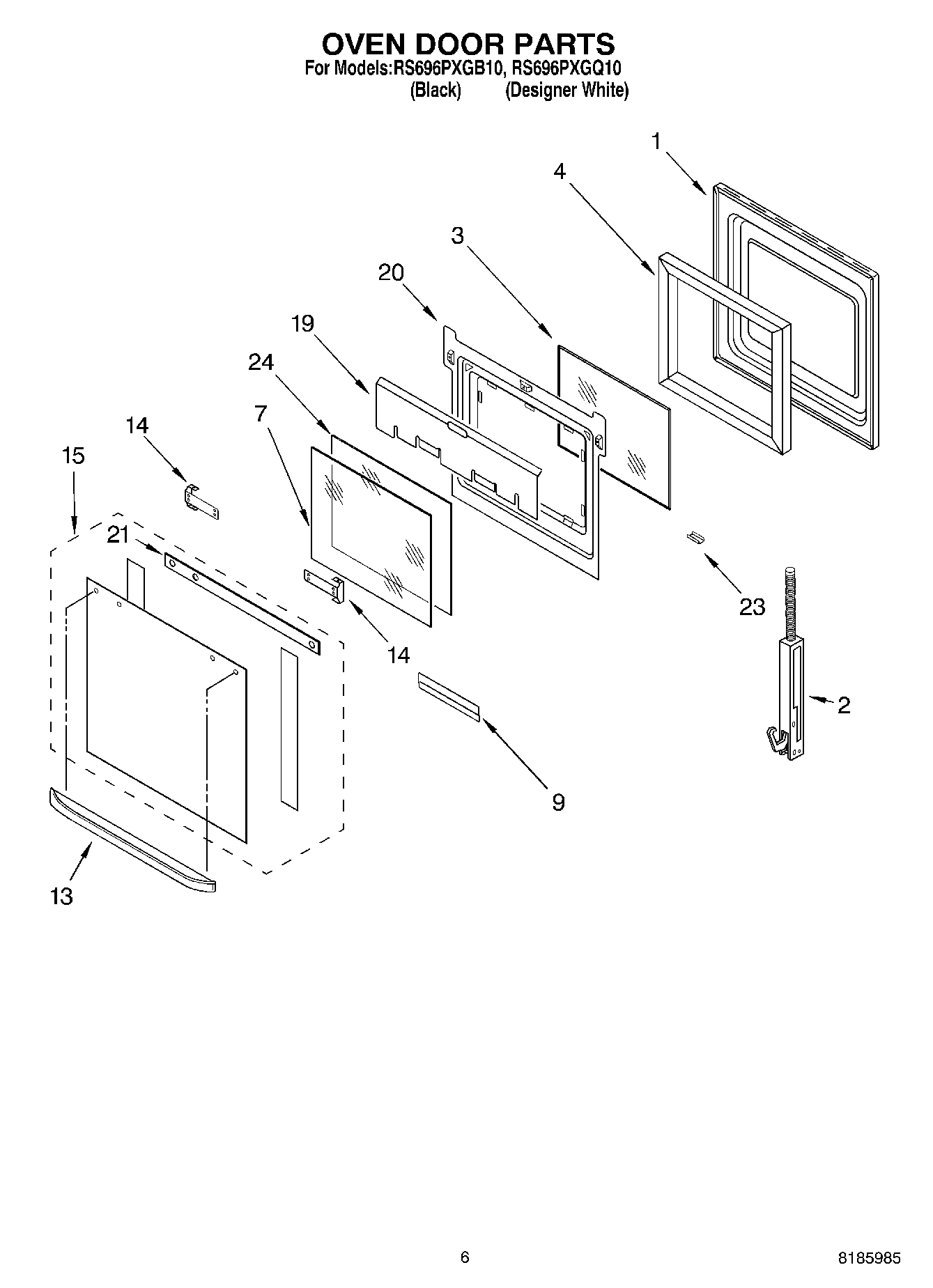

RS696PXGB10 04 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	Glass, Inner
9	Retainer, Glass
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Bracket, Handle
14	Screw
15	Door Glass, Assy (White Model)
15	WP9759641 Whirlpool Outer Door Glass
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
24	WP4449263 Whirlpool Inner Door Glass
