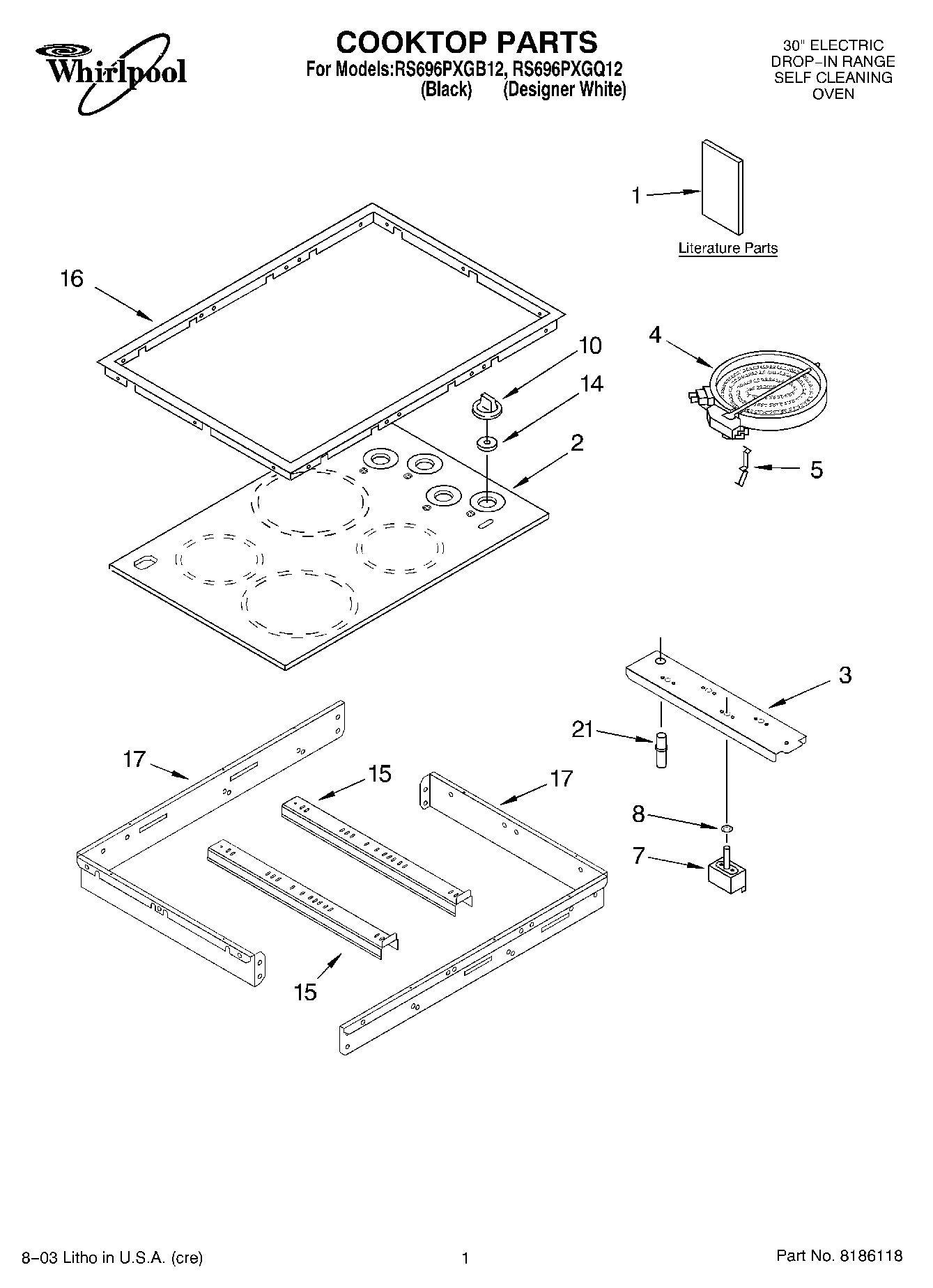

RS696PXGB12 01 – COOKTOP PARTS

RS696PXGB12 01 – COOKTOP PARTS

Written by

in

RS696PXGB12 01 – COOKTOP PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Literature Parts (Tech Sheet)
1Literature Parts (Installation Instructions)
1Use & Care Guide
1Safer Cooking Tips
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
3Bracket, Switch Mounting
4W10823698 Whirlpool Surface Element Right Rear
4W10823711 Whirlpool Surface Element Left Front and Right Rear
4W10823696 Whirlpool Radiant Surface Element
5Spring, Locator
5WP486754 Whirlpool Compactor Screw
7WP4454541 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7WP486579 Whirlpool Air Conditioner Screw
7WP3191050 Whirlpool Infinite Switch
83183956 Whirlpool Oven Seal Switch
10WP3196232 Whirlpool Knob
10WP3196231 Whirlpool Knob
148285469 Whirlpool Oven Seal Switch
15Rail, Element (2)
16Trim Ring, Cooktop (White)
16Trim Ring, Cooktop (Black)
16WP3196557 Whirlpool Screw
17Frame, Cooktop (2)
21Bumper, Silicone
21Bumper, Rubber (Black (2.75 Dia.))
21Light, Indicator
