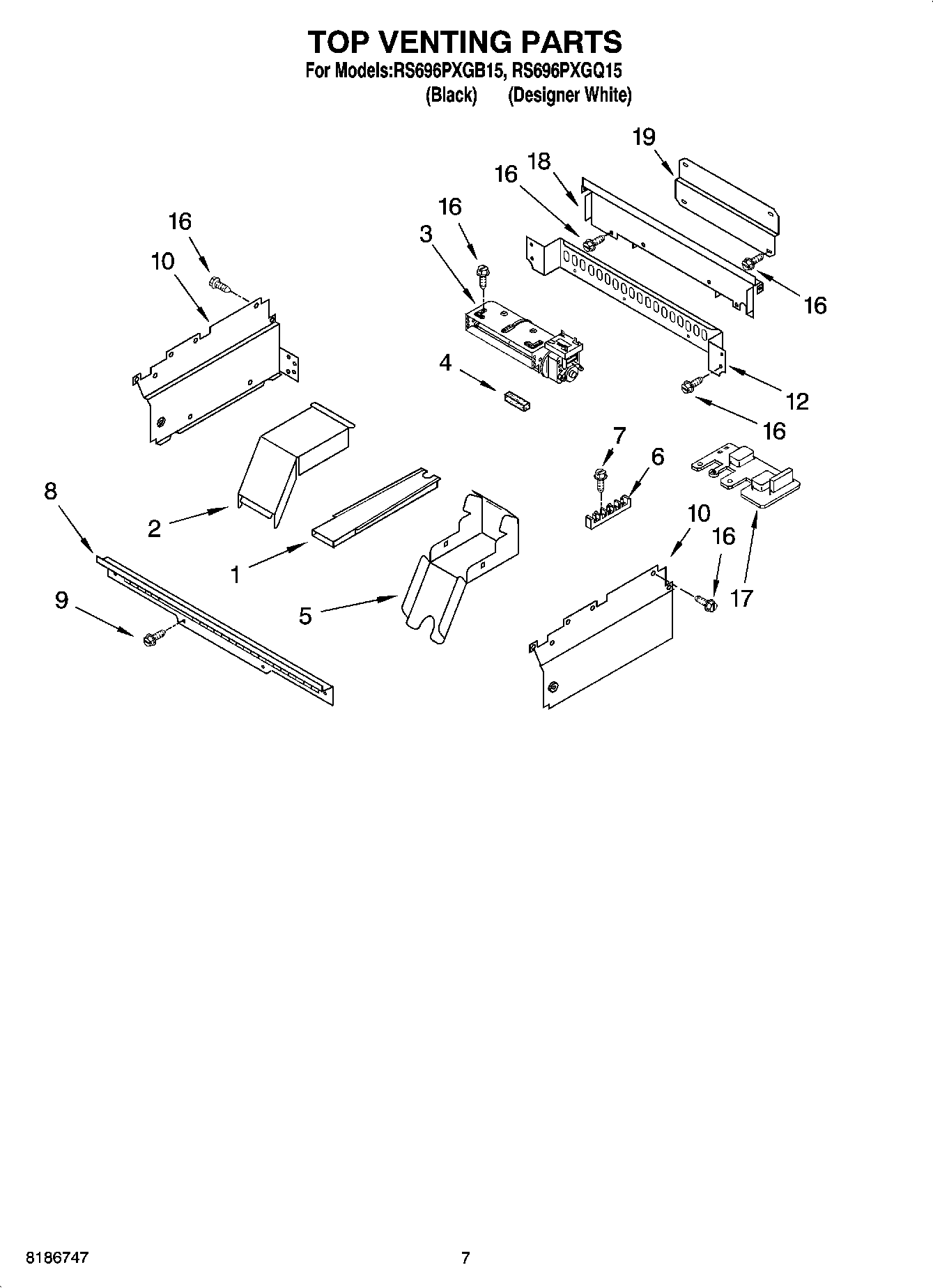

RS696PXGB15 05 – TOP VENTING PARTS

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10176670 Whirlpool Blower
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
6	WP8203546 Whirlpool Terminal Block
7	Screw
8	Vent, Control Panel
9	WP4450038 Whirlpool Screw
10	Side, Control Compt. (Left)
10	Side, Control Compt. (Right)
12	Back, Control
16	WP4449809 Whirlpool Screw
17	WP4451985 Whirlpool Noise Filter Board
18	Cover, Rear
19	Plate, Support
