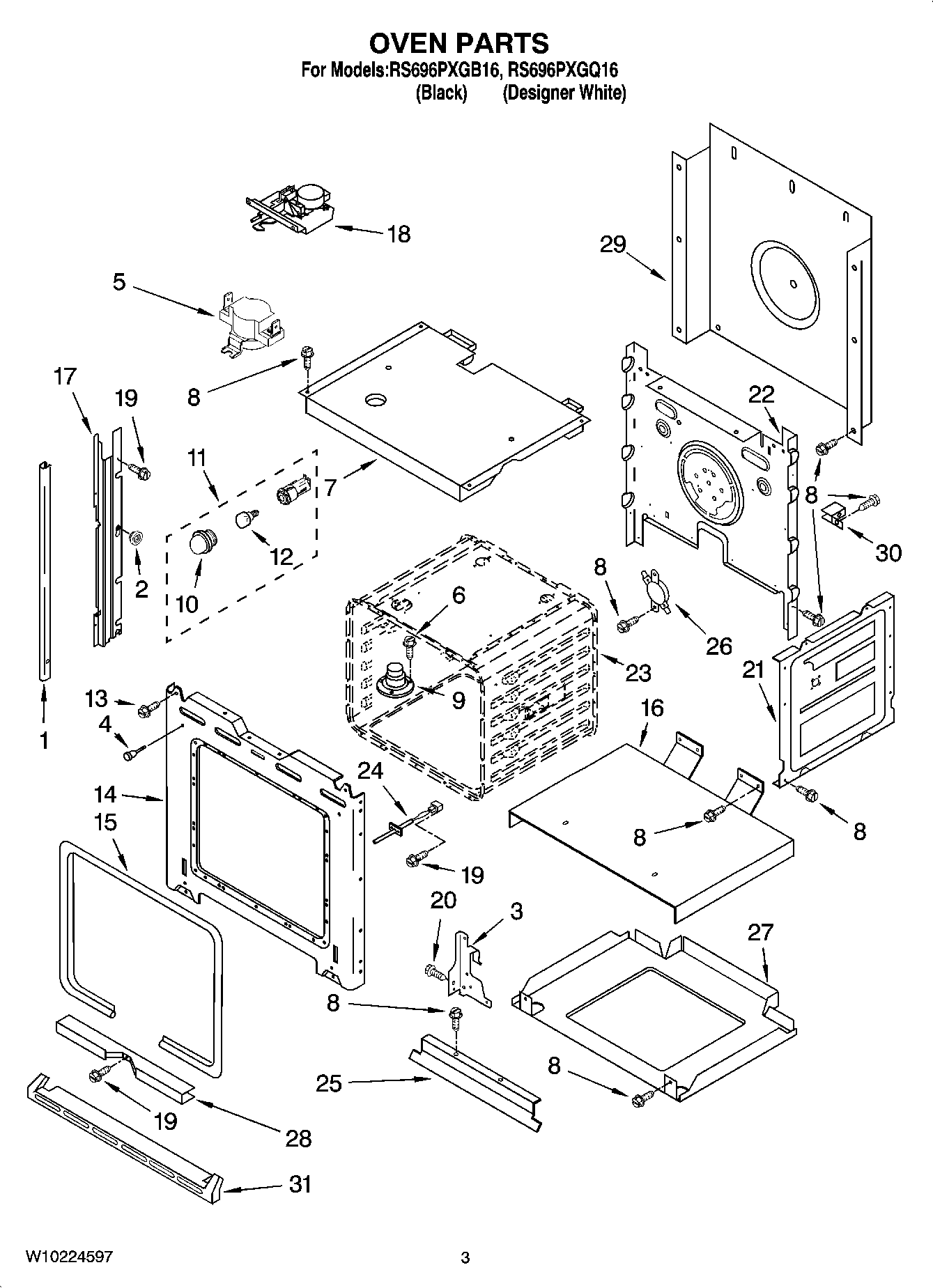

RS696PXGB16 02 – OVEN PARTS

Products

Position	Product
	Insulation
	WPL 4450365
	W11684730 Whirlpool Insulation
	Following Parts Not Illustrated
1	Trim, Side (RH Black)
1	Trim, Side (LH White Screw)
1	Trim, Side (White, Right)
1	Trim, Side (LH Black)
2	WP4448444 Whirlpool Grommet
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	Bracket
5	Thermosatat (TOD) SPST 98c-74c
6	SCREW
7	Top Chassis
8	WP4449809 Whirlpool Screw
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Screw
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	Support, Insulation
17	814371 Whirlpool Oven Rail Mount
17	814372 Whirlpool Oven Rail Mount
18	WP9760889 Whirlpool Door Latch
19	WP4449154 Whirlpool Screw
20	WP4449743 Whirlpool Screw
21	W10782197 Whirlpool Side Panel
22	Back, Chassis
23	Liner, Oven (Not serviceable)
24	WPW10131825 Whirlpool Oven Temperature Sensor
25	Deflector, Vent
26	WP9759243 Whirlpool Thermostat
27	Base, Chassis
28	WP4448933 Whirlpool Retainer
29	WP4451747 Whirlpool Rear Cover
30	WPL 4449845
31	WPL 4448477
31	WPL 4448478
