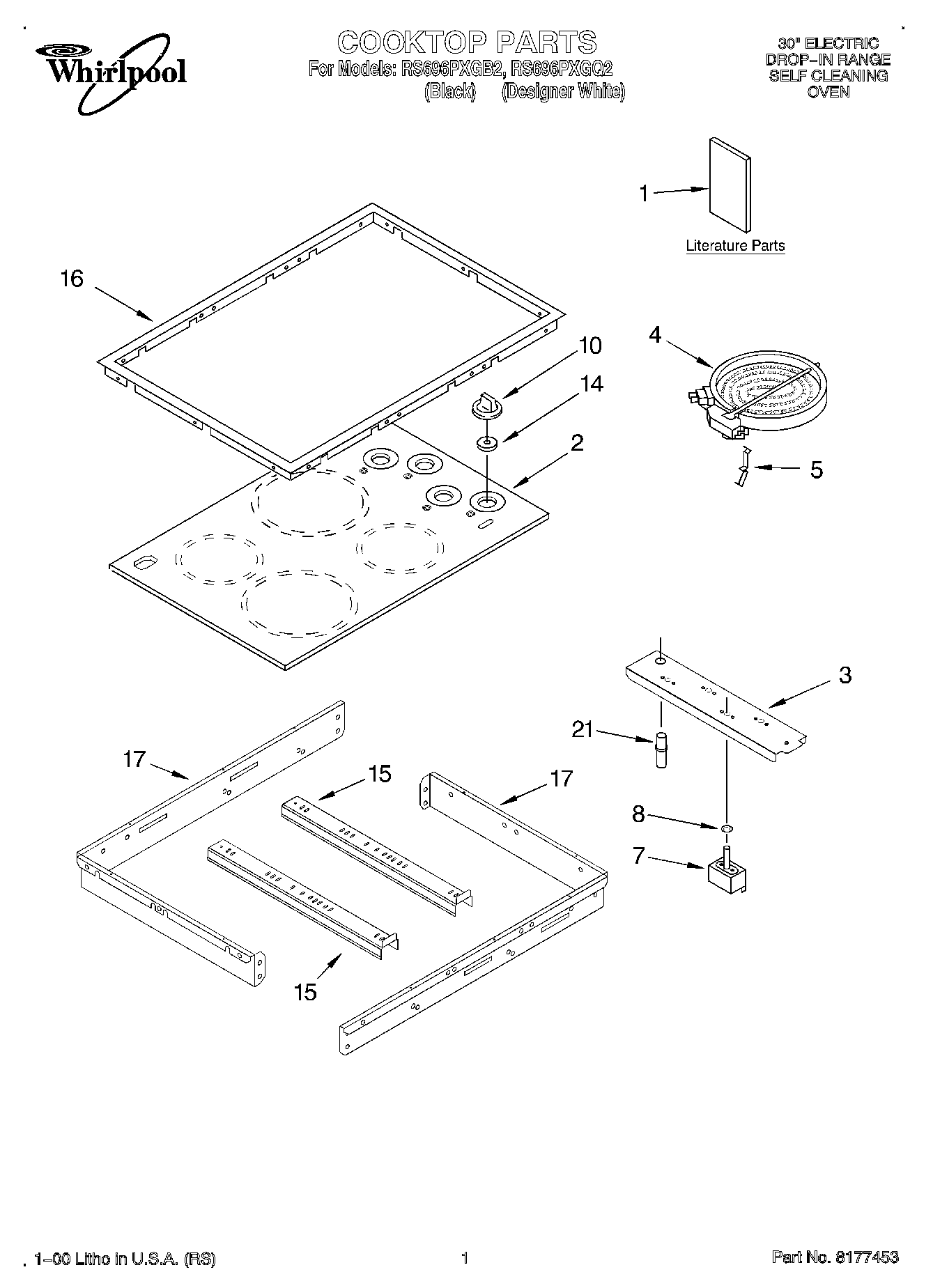

RS696PXGB2 01 – COOKTOP, LITERATURE

RS696PXGB2 01 – COOKTOP, LITERATURE

Written by

in

RS696PXGB2 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Tech Sheet (Oven)
1Installation Instructions
1Use & Care Guide
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
3Bracket, Switch Mounting
4W10823698 Whirlpool Surface Element Right Rear
4W10823711 Whirlpool Surface Element Left Front and Right Rear
4W10823696 Whirlpool Radiant Surface Element
5WP486754 Whirlpool Compactor Screw
5Spring, Locator
7WP486579 Whirlpool Air Conditioner Screw
7WP3191050 Whirlpool Infinite Switch
7WP4454541 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
10WP3196232 Whirlpool Knob
10WP3196231 Whirlpool Knob
14Seal, Inifinite Switch
15Rail, Element (2)
16Vent, Lower Trim (Screw (2))
16Trim Ring, Cooktop (Black)
16Trim Ring, Cooktop (White)
17Frame, Cooktop (2)
21Bumper, Silicone
21Bumper, Rubber (Black (2.75 Dia.))
21Light, Indicator
