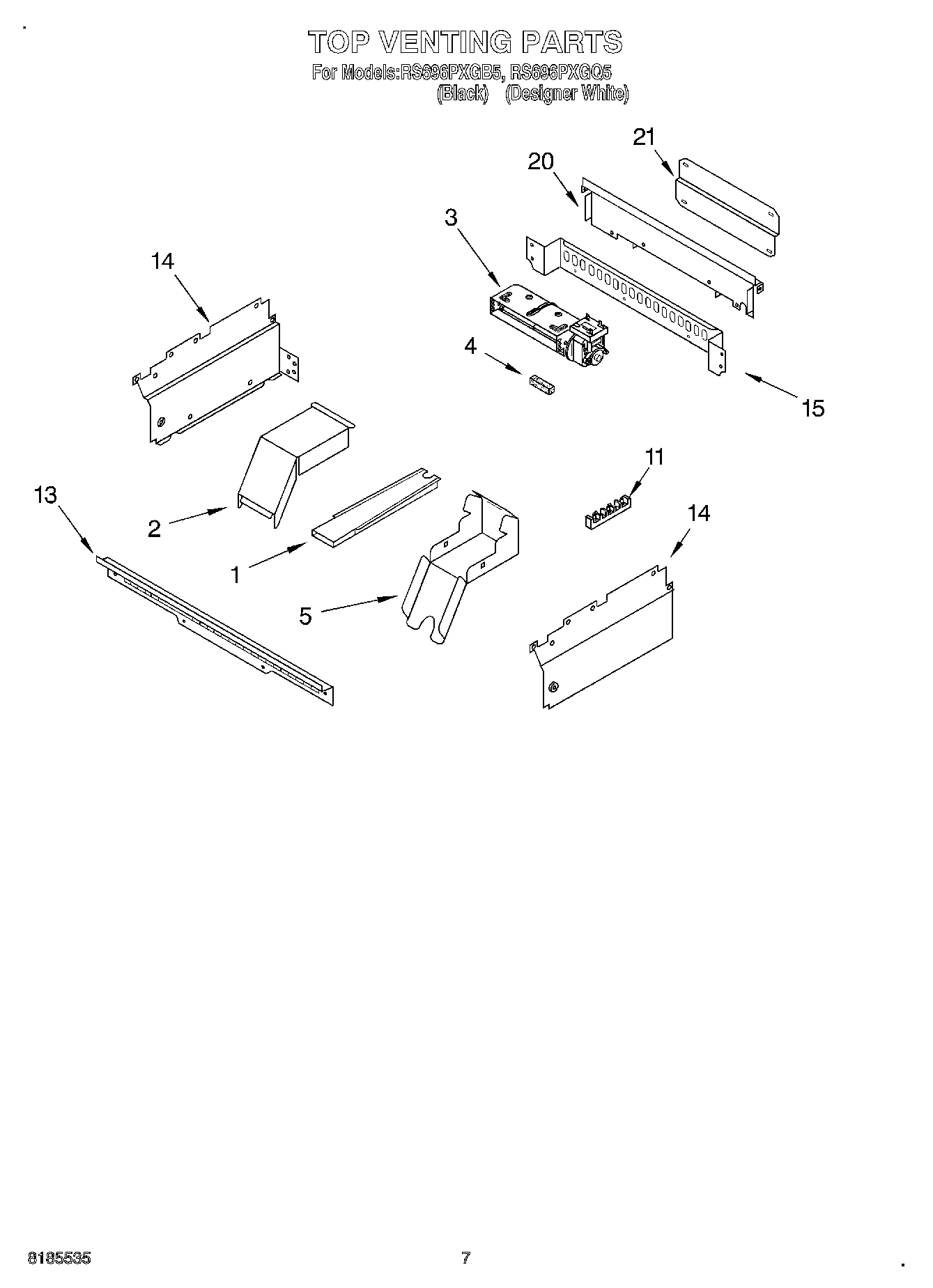

RS696PXGB5 05 – TOP VENTING

Products

Position	Product
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WP4455352 Whirlpool Mounting Bracket
3	WP3400015 Whirlpool Screw
3	Blower
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
11	WP3400016 Whirlpool Screw Assembly
11	WP8203546 Whirlpool Terminal Block
13	Vent, Control Panel
13	WP4450038 Whirlpool Screw
14	Side, Control Compt. (Right)
14	Side, Control Compt. (Left)
15	WP4449809 Whirlpool Screw
15	Back, Control
20	Cover, Rear
21	Spacer, Foam
21	Plate, Support
