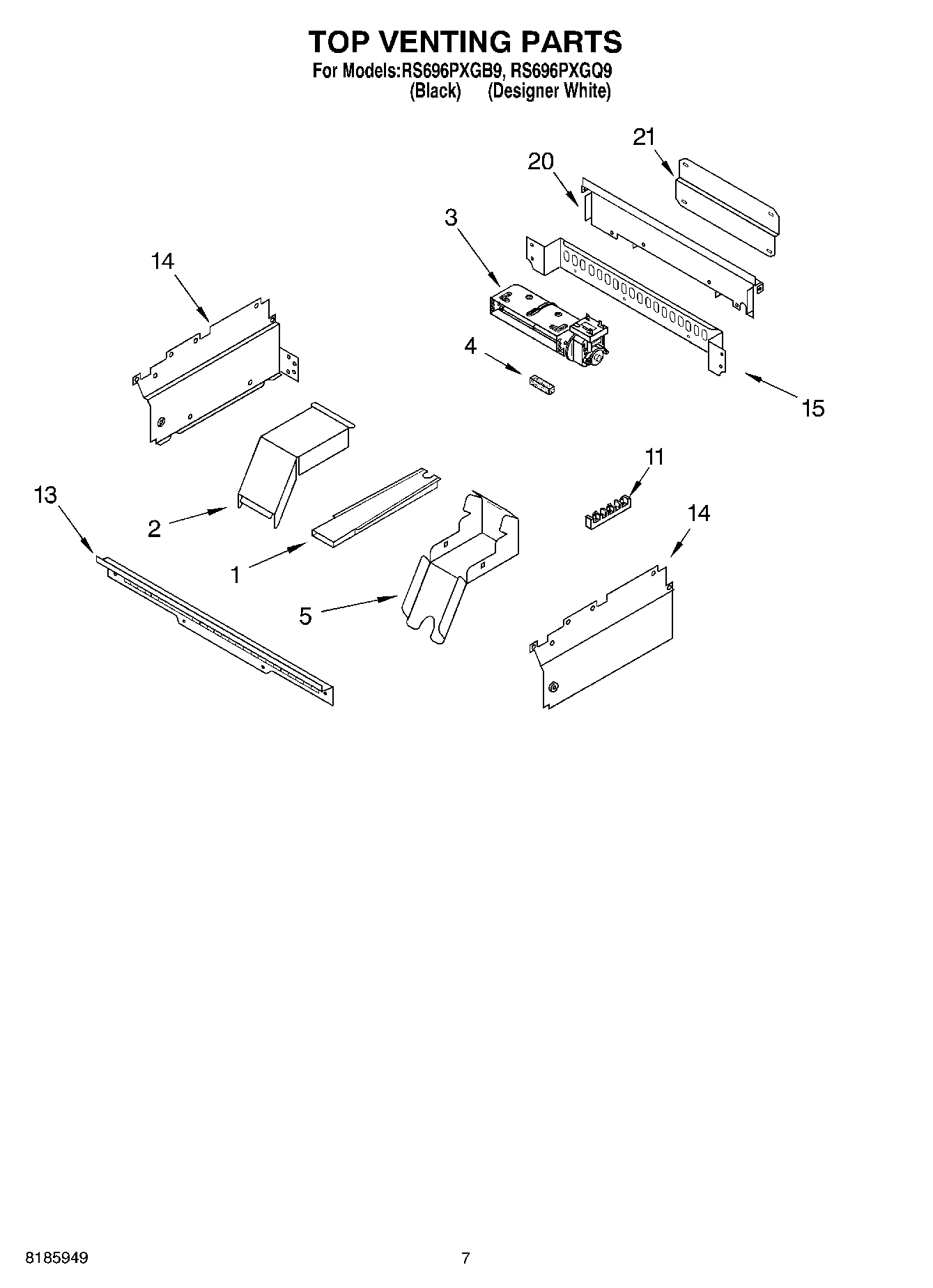

RS696PXGB9 05 – TOP VENTING

Products

PositionProduct
1Screw
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3Blower (Upper Oven 60MM)
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
11Screw
11WP8203546 Whirlpool Terminal Block
13WP4450038 Whirlpool Screw
13Vent, Control Panel
14Side, Control Compt. (Left)
14Side, Control Compt. (Right)
15WP4449809 Whirlpool Screw
15Back, Control
20Cover, Rear
21Spacer, Foam
21Plate, Support
