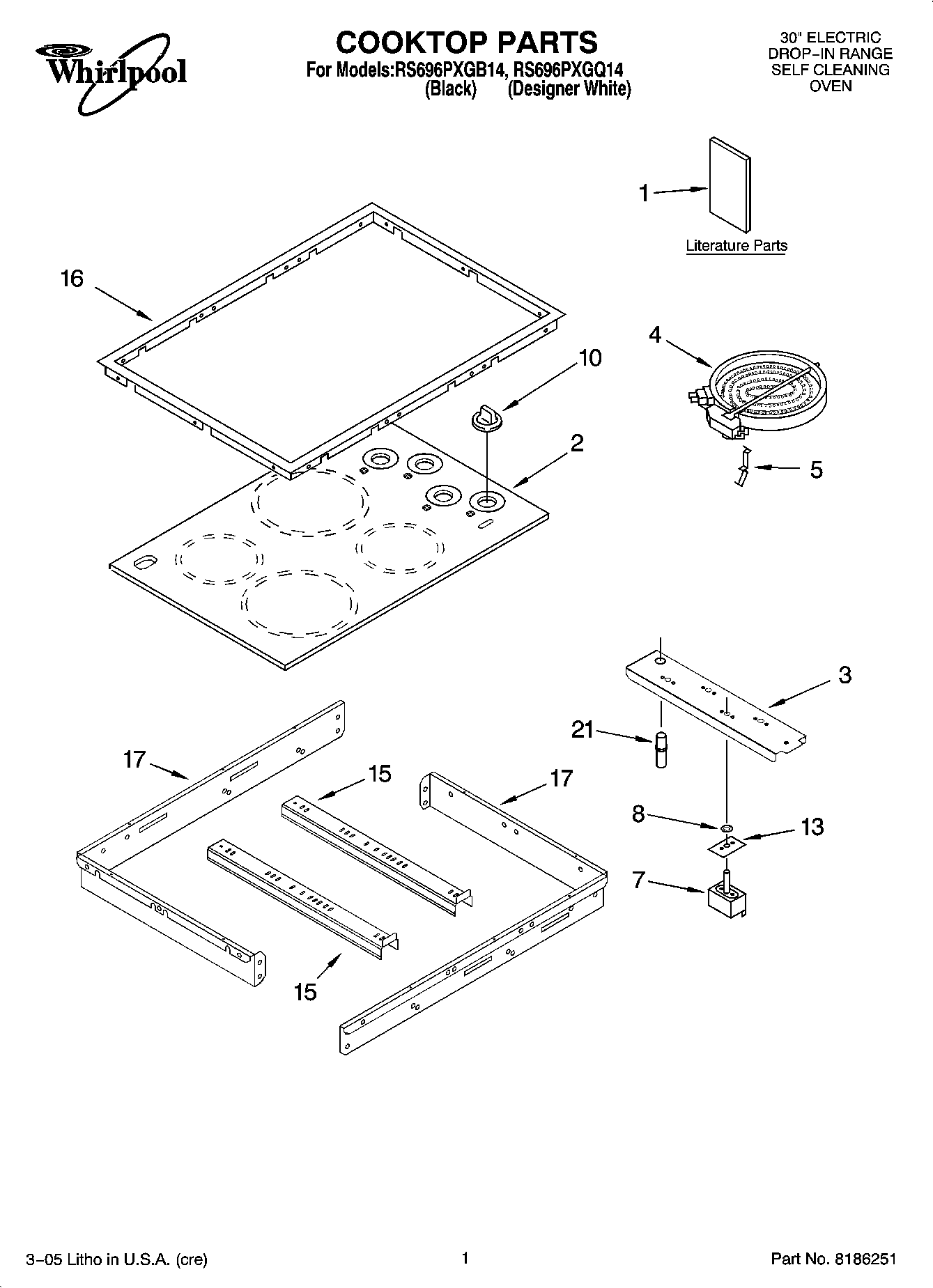

RS696PXGQ14 01 – COOKTOP PARTS

RS696PXGQ14 01 – COOKTOP PARTS

Written by

in

RS696PXGQ14 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1Tech Sheet
1Use & Care Guide
1Safe Cooking Tips
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
3Bracket, Switch Mounting
4W10823698 Whirlpool Surface Element Right Rear
4W10823711 Whirlpool Surface Element Left Front and Right Rear
4W10823696 Whirlpool Radiant Surface Element
59759094 Whirlpool Spring
5WP486754 Whirlpool Compactor Screw
7WP486579 Whirlpool Air Conditioner Screw
7WP3191050 Whirlpool Infinite Switch
7WP4454541 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
10WP3196231 Whirlpool Knob
10WP3196232 Whirlpool Knob
138285469 Whirlpool Oven Seal Switch
15Rail, Element (2)
16WP3196557 Whirlpool Screw
16Trim Ring, Cooktop (White)
16Trim Ring, Cooktop (Black)
17Frame, Cooktop (2)
21Bumper, Silicone
21Light, Indicator
21Bumper, Rubber (Black (2.75 Dia.))
