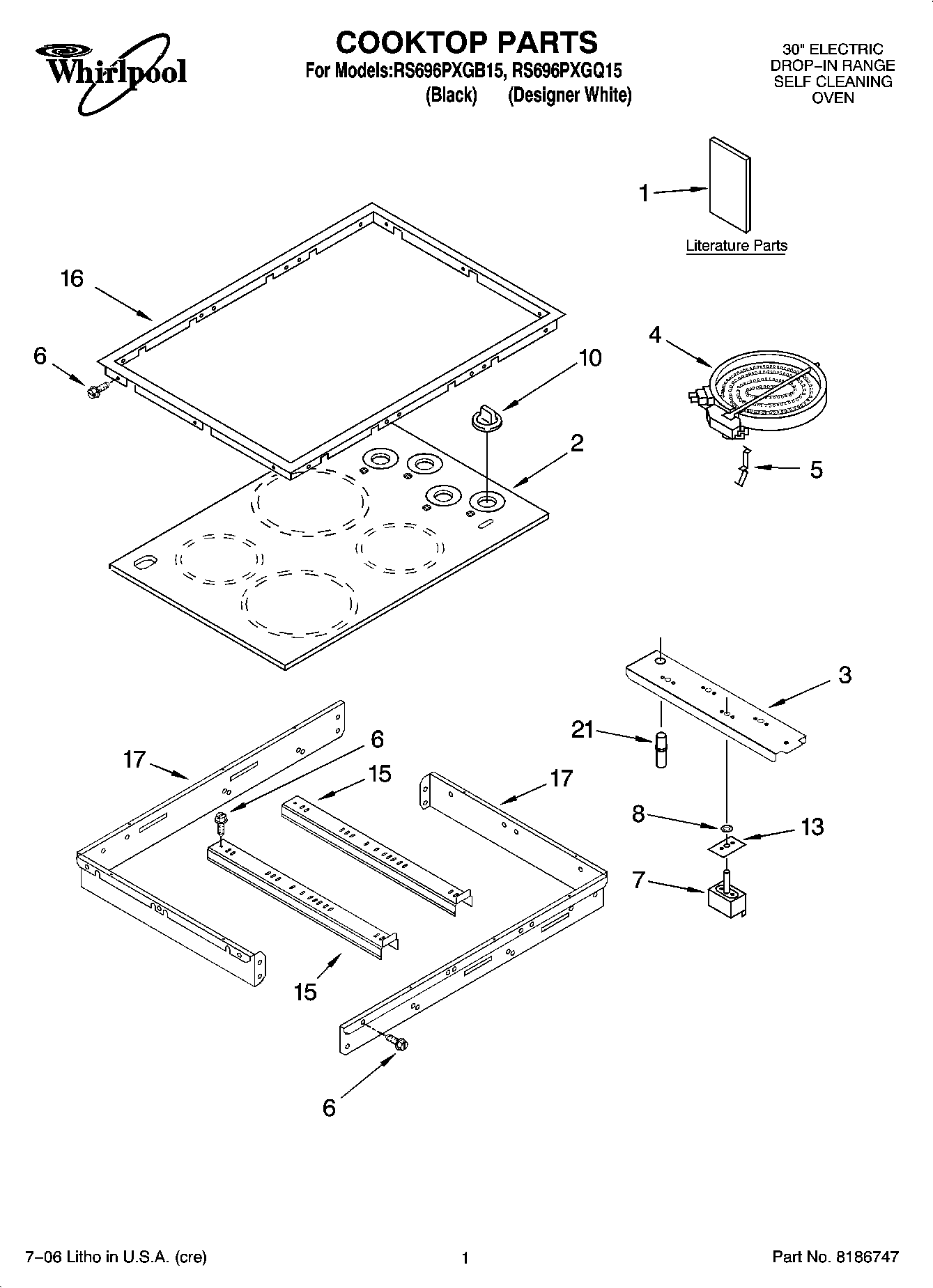

RS696PXGQ15 01 – COOKTOP PARTS
Written by
in
RS696PXGQ15 01 – COOKTOP PARTS
Products
Position
Product
1
Tech Sheet
1
Safe Cooking Tips
1
Safe Cooking Tips (French)
1
INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1
Use & Care Guide
2
Cooktop, Glass (White)
2
Cooktop, Glass (Black)
3
Bracket, Switch Mounting
4
W10823711 Whirlpool Surface Element Left Front and Right Rear
4
W10823696 Whirlpool Radiant Surface Element
4
W10823698 Whirlpool Surface Element Right Rear
5
9759094 Whirlpool Spring
6
WP3196557 Whirlpool Screw
7
WP3191049 Infinite Switch Left Rear Right Front
7
WP3191050 Whirlpool Infinite Switch
7
WP4454541 Whirlpool Infinite Switch
8
3183956 Whirlpool Oven Seal Switch
10
WP3196231 Whirlpool Knob
10
WP3196232 Whirlpool Knob
13
8285469 Whirlpool Oven Seal Switch
15
Rail, Element (3)
16
Trim Ring, Cooktop (White)
16
Trim Ring, Cooktop (Black)
17
Frame, Cooktop (2)
21
Light, Indicator
←
