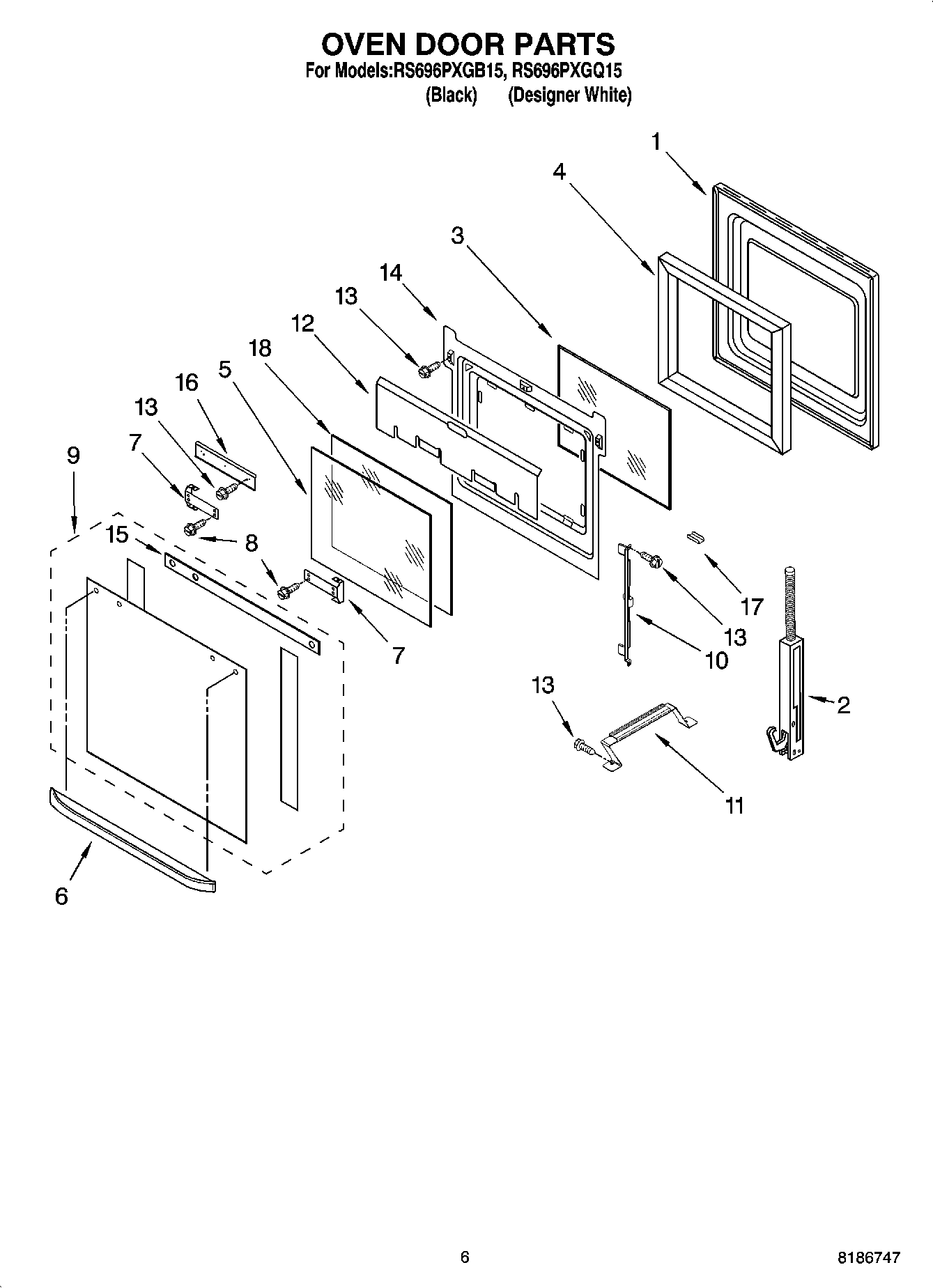

RS696PXGQ15 04 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP9759225 Whirlpool Inner Door Glass
6	Door Handle (White Model)
6	Door Handle (Black Model)
7	Bracket, Handle
8	Screw
9	Door Glass (White Model)
9	WP9759641 Whirlpool Outer Door Glass
10	WP9759229 Whirlpool Mounting Bracket
11	Bracket (3rd Glsss)
12	Shield, Heat
13	WP4449809 Whirlpool Screw
14	WP4457132 Whirlpool Retainer
15	Seal, Door Top
16	4457114 Whirlpool Oven Heat Shield
17	Clip, Retainer (White Model)
17	Clip, Retainer (Black Model)
18	Glass, Inner
