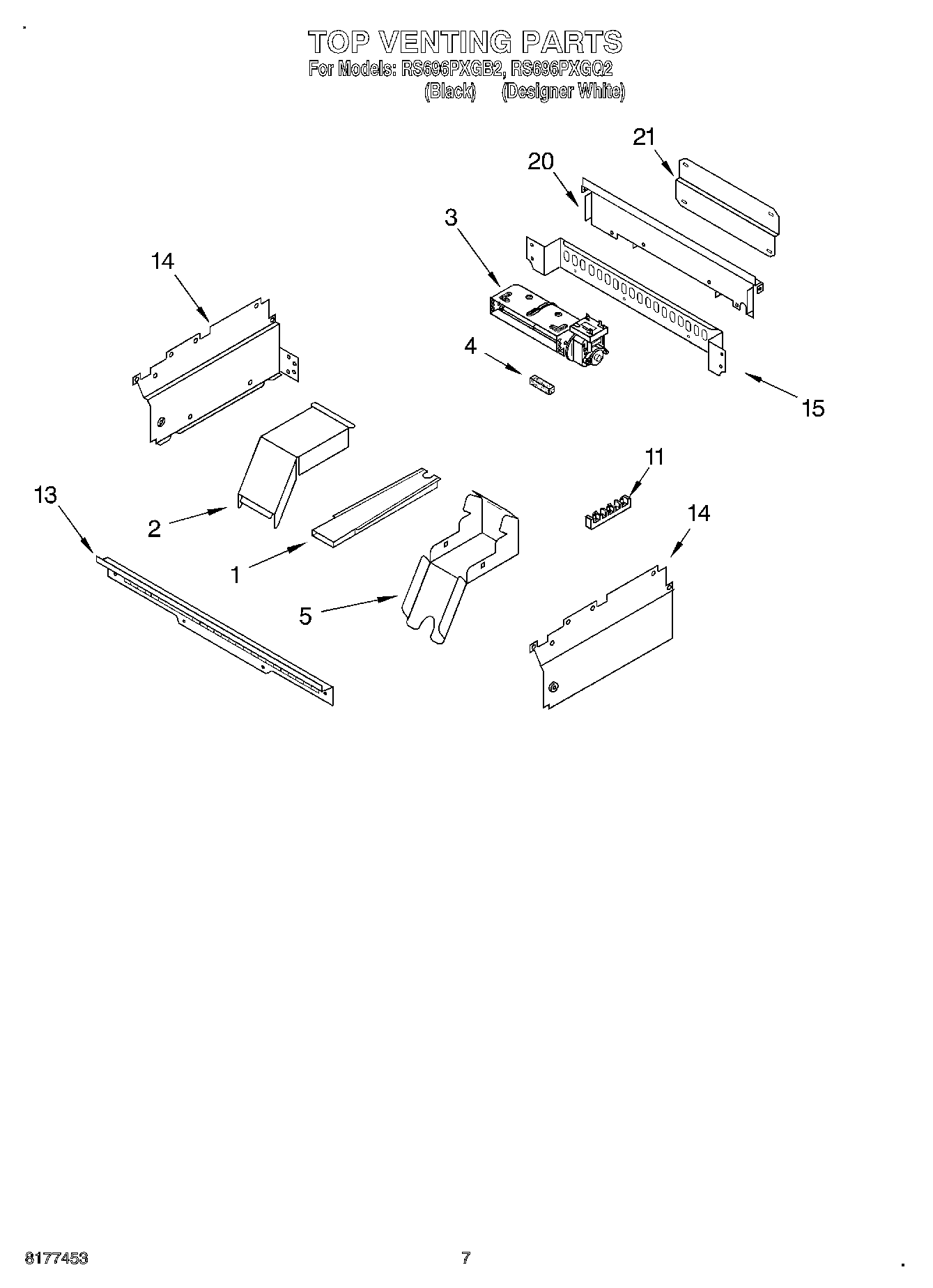

RS696PXGQ2 05 – TOP VENTING

Products

Position	Product
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10016550 Whirlpool Blower Cooling Fan
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
11	WP3400016 Whirlpool Screw Assembly
11	WP8203546 Whirlpool Terminal Block
13	Vent, Control Panel
13	WP4450038 Whirlpool Screw
14	Side, Control Compt. (Right)
14	Side, Control Compt. (Left)
15	WP4449809 Whirlpool Screw
15	Back, Control
20	Cover, Rear
21	4455191 Whirlpool Oven Mounting Plate
21	Plate, Support
