RS696PXGQ4 01 – COOKTOP, LITERATURE

RS696PXGQ4 01 – COOKTOP, LITERATURE

Written by

in

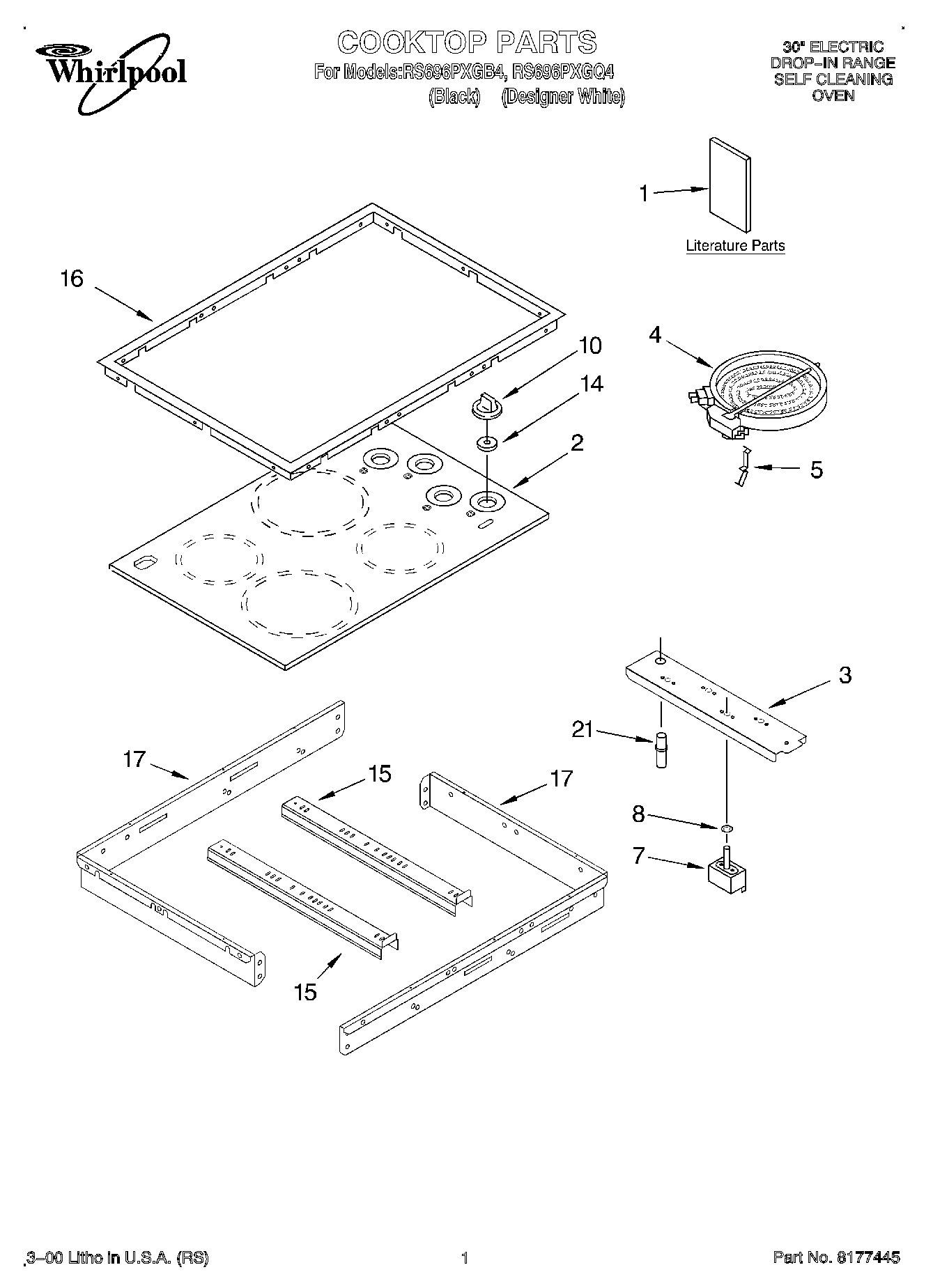

RS696PXGQ4 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Installation Instructions
1Use & Care Guide
1Tech Sheet
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
3Bracket, Switch Mounting
4W10823698 Whirlpool Surface Element Right Rear
4W10823711 Whirlpool Surface Element Left Front and Right Rear
4W10823696 Whirlpool Radiant Surface Element
5Spring, Locator
5WP486754 Whirlpool Compactor Screw
7WP486579 Whirlpool Air Conditioner Screw
7WP3191050 Whirlpool Infinite Switch
7WP4454541 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
10WP3196232 Whirlpool Knob
10WP3196231 Whirlpool Knob
14Seal, Inifinite Switch
15Rail, Element (2)
16Trim Ring, Cooktop (Black)
16Trim Ring, Cooktop (White)
16Vent, Lower Trim (Screw (2))
17Frame, Cooktop (2)
21Bumper, Silicone
21Light, Indicator
21Bumper, Rubber (Black (2.75 Dia.))
